TMEM173/STING Polyklonaler Antikörper

• Featured Product
• KD/KO Validated

TMEM173/STING Polyklonal Antikörper für WB, IHC, IF/ICC, IF-P, IF-Fro, FC (Intra), IP, ELISA

Wirt / Isotyp

Kaninchen / IgG

Getestete Reaktivität

human, Maus, Ratte und mehr (4)

Anwendung

WB, IHC, IF/ICC, IF-P, IF-Fro, FC (Intra), IP, CoIP, ELISA, Blocking assay

Konjugation

Unkonjugiert

Publikationen(449)

Rezensionen (3)

Kat-Nr. : 19851-1-AP

Synonyme

STING, Endoplasmic reticulum interferon stimulator, ERIS, MITA, MPYS

---

•

  WB analysis of THP-1 using 19851-1-AP

  WB result of TMEM173/STING antibody (19851-1-AP; 1:3000; incubated at room temperature for 1.5 hours) with sh-Control and sh-TMEM173/STING transfected THP-1 cells.

•

  WB analysis of HL-60 using 19851-1-AP

  HL-60 cells were subjected to SDS PAGE followed by western blot with 19851-1-AP (TMEM173/STING antibody) at dilution of 1:2000 incubated at room temperature for 1.5 hours.

•

  WB analysis of HepG2 using 19851-1-AP

  WB result of TMEM173/STING antibody (19851-1-AP; 1:6000; room temperature for 1.5 hours) with wild-type and TMEM173/STING knockout HepG2 cells.

•

  WB analysis using 19851-1-AP

  Various lysates were subjected to SDS PAGE followed by western blot with 19851-1-AP (TMEM173/STING antibody) at dilution of 1:60000 incubated at room temperature for 1.5 hours.

•

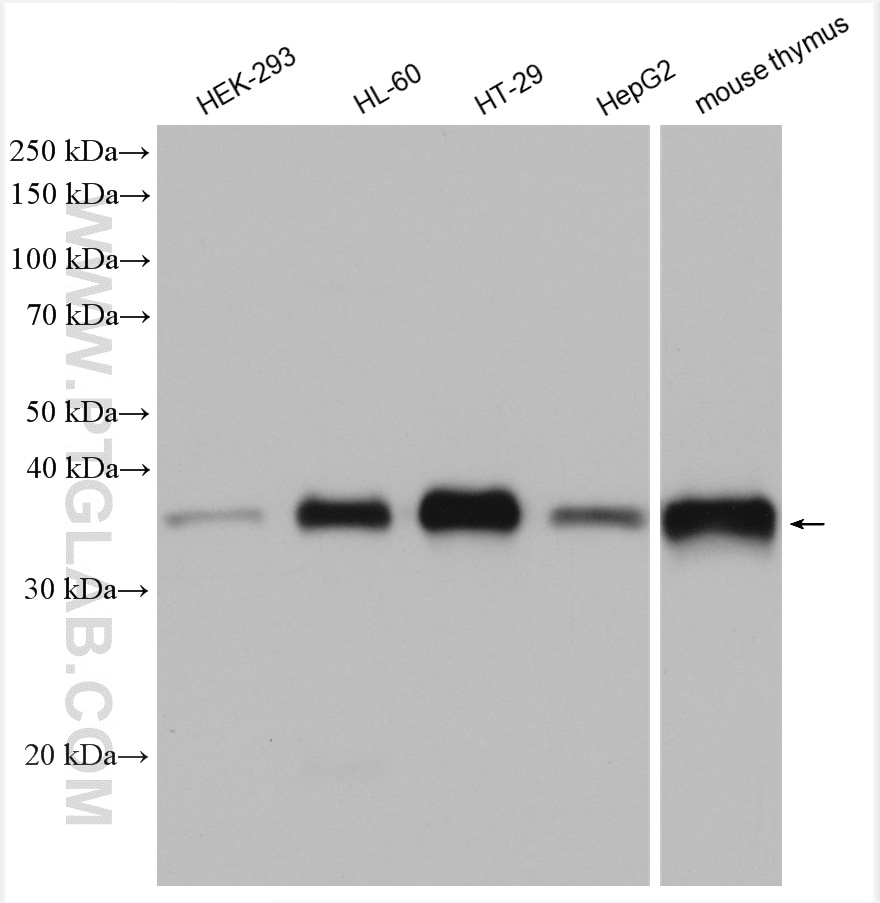

  WB analysis using 19851-1-AP

  Various lysates were subjected to SDS PAGE followed by western blot with 19851-1-AP (TMEM173/STING antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours.

•

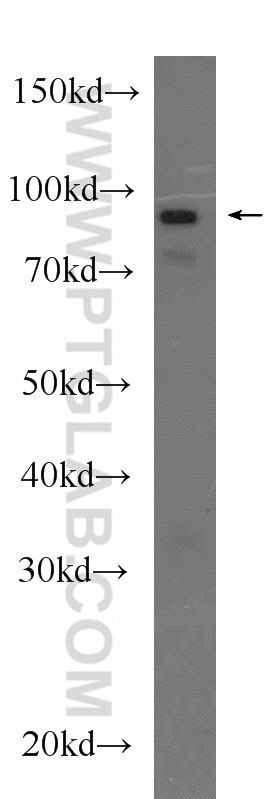

  WB analysis of mouse spleen using 19851-1-AP

  mouse spleen tissue were subjected to SDS PAGE followed by western blot with 19851-1-AP (TMEM173/STING antibody) at dilution of 1:800 incubated at room temperature for 1.5 hours.

•

  WB analysis of HEK-293 using 19851-1-AP

  WB result of TMEM173/STING antibody (19851-1-AP; 1:2000; incubated at room temperature for 1.5 hours) with sh-Control and sh-TMEM173/STING transfected HEK-293 cells.

•

  WB analysis using 19851-1-AP

  Various lysates were subjected to SDS PAGE followed by western blot with 19851-1-AP (TMEM173/STING antibody) at dilution of 1:8000 incubated at room temperature for 1.5 hours.

•

  WB analysis of Raji using 19851-1-AP

  Raji cells were subjected to SDS PAGE followed by western blot with 19851-1-AP (TMEM173/STING antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

•

  IP experiment of mouse spleen using 19851-1-AP

  IP result of anti-TMEM173/STING (IP:19851-1-AP, 4ug; Detection:19851-1-AP 1:1000) with mouse spleen tissue lysate 4000ug.

•

  IHC staining of human tonsillitis using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded human tonsillitis tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human tonsillitis using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded human tonsillitis tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of mouse thymus using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded mouse thymus tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of mouse thymus using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded mouse thymus tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human liver cancer using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded human liver cancer tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human liver cancer using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded human liver cancer tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of rat thymus using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded rat thymus tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of rat thymus using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded rat thymus tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human spleen using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded human spleen tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:2000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human spleen using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded human spleen tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:2000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human tonsillitis using 19851-1-AP

  Immunohistochemical analysis of paraffin-embedded human tonsillitis tissue slide using 19851-1-AP (TMEM173/STING antibody) at dilution of 1:2000 (under 4x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IF Staining of human tonsillitis using 19851-1-AP

  Immunofluorescent analysis of (4% PFA) fixed human tonsillitis tissue using TMEM173/STING antibody (19851-1-AP) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).

•

  IF Staining of human tonsillitis using 19851-1-AP

  Immunofluorescent analysis of (4% PFA) fixed human tonsillitis tissue using TMEM173/STING antibody (19851-1-AP) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).

•

  IF Staining of mouse brain using 19851-1-AP

  Immunofluorescent analysis of (4% PFA) fixed frozen OCT-embedded mouse brain tissue using TMEM173/STING antibody (19851-1-AP) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) (SA00013-2).

•

  IF Staining of HT-29 using 19851-1-AP

  Immunofluorescent analysis of (-20°C Ethanol) fixed HT-29 cells using TMEM173/STING antibody (19851-1-AP) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L), CL594-phalloidin (red).

•

  IF Staining of THP-1 using 19851-1-AP

  Immunofluorescent analysis of (4% PFA) fixed THP-1 cells using TMEM173/STING antibody (19851-1-AP) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).

•

  FC experiment of THP-1 using 19851-1-AP

  1X10^6 THP-1 cells were intracellularly stained with 0.4 ug Anti-Human TMEM173/STING (19851-1-AP) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) at dilution 1:1000 (red), or 0.4 ug Isotype Control. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

---

Geprüfte Anwendungen

• Erfolgreiche Detektion in WB: HL-60-Zellen, C2C12-Zellen, HEK-293-Zellen, HepG2-Zellen, HT-29-Zellen, Mausnierengewebe, Mausmilzgewebe, Maushodengewebe, Maus-Thymusgewebe, Raji-Zellen, RAW 264.7-Zellen, THP-1-Zellen
• Erfolgreiche IP: Mausmilzgewebe
• Erfolgreiche Detektion in IHC: humanes Tonsillitisgewebe, humanes Leberkarzinomgewebe, humanes Milzgewebe, Maus-Thymusgewebe, Ratten-Thymusgewebe; Hinweis: Antigendemaskierung mit TE-Puffer pH 9,0 empfohlen. (*) Wahlweise kann die Antigendemaskierung auch mit Citratpuffer pH 6,0 erfolgen.
• Erfolgreiche Detektion in IF-P: humanes Tonsillitisgewebe
• Erfolgreiche Detektion in IF-Fro: Maushirngewebe
• Erfolgreiche Detektion in IF/ICC: HT-29-Zellen, humanes Tonsillitisgewebe, THP-1-Zellen
• Erfolgreiche Detektion in FC (Intra): THP-1-Zellen

Empfohlene Verdünnung

• Western Blot (WB): WB : 1:20000-1:100000
• Immunpräzipitation (IP): IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
• Immunhistochemie (IHC): IHC : 1:2000-1:8000
• Immunfluoreszenz (IF)-P: IF-P : 1:50-1:500
• Immunfluoreszenz (IF)-FRO: IF-FRO : 1:50-1:500
• Immunfluoreszenz (IF)/ICC: IF/ICC : 1:50-1:500
• Durchflusszytometrie (FC) (INTRA): FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, check data in validation data gallery

Veröffentlichte Anwendungen

• KD/KO: See 50 publications below
• WB: See 378 publications below
• IHC: See 69 publications below
• IF: See 126 publications below
• IP: See 13 publications below
• CoIP: See 9 publications below

Produktinformation

19851-1-AP bindet in WB, IHC, IF/ICC, IF-P, IF-Fro, FC (Intra), IP, CoIP, ELISA, Blocking assay TMEM173/STING und zeigt Reaktivität mit human, Maus, Ratten

• Getestete Reaktivität: human, Maus, Ratte
• In Publikationen genannte Reaktivität: human, Affe, hamster, Hausschwein, Maus, Ratte, Rind
• Wirt / Isotyp: Kaninchen / IgG
• Klonalität: Polyklonal
• Typ: Antikörper
• Immunogen: TMEM173/STING fusion protein Ag13921
• Vollständiger Name: transmembrane protein 173
• Berechnetes Molekulargewicht: 379 aa, 42 kDa
• Beobachtetes Molekulargewicht: 35-40 kDa, 80 kDa
• GenBank-Zugangsnummer: BC047779
• Gene symbol: STING
• Gene ID (NCBI): 340061
• Konjugation: Unkonjugiert
• Form: Liquid
• Reinigungsmethode: Antigen-Affinitätsreinigung
• Lagerungspuffer: PBS with 0.02% sodium azide and 50% glycerol
• Lagerungsbedingungen: Bei -20°C lagern. Nach dem Versand ein Jahr lang stabil Aliquotieren ist bei -20^oC Lagerung nicht notwendig. 20ul Größen enthalten 0,1% BSA.

Hintergrundinformationen

Stimulator of interferon genes (STING, also known as ERIS, MITA and MPYS, and encoded by TMEM173) is a transmembrane adaptor protein that facilitates innate immune signaling (PMID: 18724357). STING is widely expressed in various cell types such as endothelial cells, epithelial cells, T cells, macrophages, and dendritic cells (PMID: 26603901). It is predominantly located in the endoplasmic reticulum (ER). STING functions as a sensor of cytosolic DNA and promotes the production of type I interferons and pro-inflammatory cytokines. STING is a 379 amino acid protein with a calculated molecular weight of 42 kDa. It has been observed at 35-40 kDa (PMID: 27324217; 29632140; 30918080), and 70-80 kDa corresponding to the expected size of a STING dimer (PMID: 25790474; 29491158).

Publikationen

Species	Application	Title
human	WB	Cell; The WDR11 complex is a receptor for acidic-cluster-containing cargo proteins; Authors - Huaqing Deng
mouse	WB	Nature; eccDNAs are apoptotic products with high innate immunostimulatory activity; Authors - Yuangao Wang ; KO Validated
mouse	IF	Nature; Tonic prime-boost of STING signalling mediates Niemann-Pick disease type C.; Authors - Ting-Ting Chu ; KO Validated
human	WB	Science; The heme-regulated inhibitor is a cytosolic sensor of protein misfolding that controls innate immune signaling.; Authors - Mena Abdel-Nour
human	WB,IF	Signal Transduct Target Ther; TRAF3 activates STING-mediated suppression of EV-A71 and target of viral evasion; Authors - Wenwen Zheng ; KD Validated
human	WB	Cancer Cell; Mutant p53 suppresses innate immune signaling to promote tumorigenesis.; Authors - Monisankar Ghosh ; KD Validated

Rezensionen

The reviews below have been submitted by verified Proteintech customers who received an incentive for providing their feedback.

---

FH

Prianka (Verified Customer) (01-31-2025)

This antibody used to work great with a single band at the correct MW, however since receiving a new vial from a different lot, the antibody no longer works. W

• Applications: Western Blot
• Primary Antibody Dilution: 1:1000

FH

Hannah (Verified Customer) (12-10-2024)

Superb ab for western blot, detects single strong band ~37kDa that is reduced with knockdown

• Applications: Western Blot
• Primary Antibody Dilution: 1/2,000
• Cell Tissue Type: human fibroblasts

TMEM173/STING Antibody Western Blot validation (1/2,000 dilution) in human fibroblasts (Cat no:19851-1-AP)

FH

Will (Verified Customer) (04-25-2019)

good antibody, will order again

• Applications: Western Blot,
