TOMM40 Polyklonaler Antikörper

• Featured Product
• KD/KO Validated

TOMM40 Polyklonal Antikörper für WB, IHC, IF/ICC, FC (Intra), IP, ELISA

Wirt / Isotyp

Kaninchen / IgG

Getestete Reaktivität

human, Maus, Ratte und mehr (2)

Anwendung

WB, IHC, IF/ICC, FC (Intra), IP, CoIP, ELISA

Konjugation

Unkonjugiert

Publikationen(112)

Rezensionen (7)

Kat-Nr. : 18409-1-AP

Synonyme

TOM40, C19orf1, D19S1177E, p38.5, PER EC1

---

•

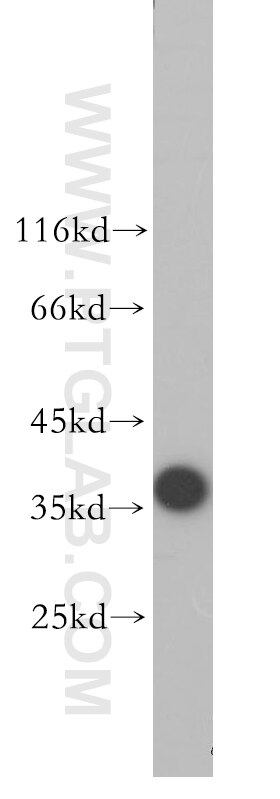

  WB analysis using 18409-1-AP

  Various lysates were subjected to SDS PAGE followed by western blot with 18409-1-AP (TOMM40 antibody) at dilution of 1:40000 incubated at room temperature for 1.5 hours.

•

  WB analysis using 18409-1-AP

  Various lysates were subjected to SDS PAGE followed by western blot with 18409-1-AP (TOMM40 antibody) at dilution of 1:8000 incubated at room temperature for 1.5 hours.

•

  IP experiment of mouse liver using 18409-1-AP

  IP result of anti-TOMM40 (IP:18409-1-AP, 4ug; Detection:18409-1-AP 1:1000) with mouse liver tissue lysate 4000ug.

•

  IHC staining of human liver using 18409-1-AP

  Immunohistochemical analysis of paraffin-embedded human liver tissue slide using 18409-1-AP (TOMM40 antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human liver using 18409-1-AP

  Immunohistochemical analysis of paraffin-embedded human liver tissue slide using 18409-1-AP (TOMM40 antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of mouse heart using 18409-1-AP

  Immunohistochemical analysis of paraffin-embedded mouse heart tissue slide using 18409-1-AP (TOMM40 antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of mouse heart using 18409-1-AP

  Immunohistochemical analysis of paraffin-embedded mouse heart tissue slide using 18409-1-AP (TOMM40 antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human liver using 18409-1-AP

  Immunohistochemical analysis of paraffin-embedded human liver tissue slide using 18409-1-AP (TOMM40 antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human liver using 18409-1-AP

  Immunohistochemical analysis of paraffin-embedded human liver tissue slide using 18409-1-AP (TOMM40 antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IF Staining of HepG2 using 18409-1-AP

  Immunofluorescent analysis of (4% PFA) fixed HepG2 cells using TOMM40 antibody (18409-1-AP) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L), (CL594-Phalloidin, red).

•

  IF Staining of HeLa using 18409-1-AP

  Immunofluorescent analysis of (4% PFA) fixed HeLa cells using 18409-1-AP (TOMM40 antibody) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L). F-actin is stained using CL555-phalloidin (red) and DNA is stained by DAPI (blue).

•

  FC experiment of HepG2 using 18409-1-AP

  1x10^6 HepG2 cells were intracellularly stained with 0.25 ug TOMM40 Polyclonal antibody (18409-1-AP) and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2)(red), or 0.25 ug rabbit IgG isotype control (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

---

Geprüfte Anwendungen

• Erfolgreiche Detektion in WB: HEK-293-Zellen, HeLa-Zellen, HepG2-Zellen, Mausnierengewebe, Rattennierengewebe
• Erfolgreiche IP: Mauslebergewebe
• Erfolgreiche Detektion in IHC: humanes Lebergewebe, Mausherzgewebe; Hinweis: Antigendemaskierung mit TE-Puffer pH 9,0 empfohlen. (*) Wahlweise kann die Antigendemaskierung auch mit Citratpuffer pH 6,0 erfolgen.
• Erfolgreiche Detektion in IF/ICC: HepG2-Zellen, HeLa-Zellen
• Erfolgreiche Detektion in FC (Intra): HepG2-Zellen

Empfohlene Verdünnung

• Western Blot (WB): WB : 1:5000-1:50000
• Immunpräzipitation (IP): IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
• Immunhistochemie (IHC): IHC : 1:50-1:500
• Immunfluoreszenz (IF)/ICC: IF/ICC : 1:200-1:800
• Durchflusszytometrie (FC) (INTRA): FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, check data in validation data gallery

Veröffentlichte Anwendungen

• KD/KO: See 4 publications below
• WB: See 93 publications below
• IHC: See 1 publications below
• IF: See 22 publications below
• IP: See 2 publications below
• CoIP: See 3 publications below

Produktinformation

18409-1-AP bindet in WB, IHC, IF/ICC, FC (Intra), IP, CoIP, ELISA TOMM40 und zeigt Reaktivität mit human, Maus, Ratten

• Getestete Reaktivität: human, Maus, Ratte
• In Publikationen genannte Reaktivität: human, Affe, Maus, Ratte, Rind
• Wirt / Isotyp: Kaninchen / IgG
• Klonalität: Polyklonal
• Typ: Antikörper
• Immunogen: TOMM40 fusion protein Ag13065
• Vollständiger Name: translocase of outer mitochondrial membrane 40 homolog (yeast)
• Berechnetes Molekulargewicht: 38 kDa
• Beobachtetes Molekulargewicht: 38 kDa
• GenBank-Zugangsnummer: BC017224
• Gene symbol: TOMM40
• Gene ID (NCBI): 10452
• Konjugation: Unkonjugiert
• Form: Liquid
• Reinigungsmethode: Antigen-Affinitätsreinigung
• Lagerungspuffer: PBS with 0.02% sodium azide and 50% glycerol
• Lagerungsbedingungen: Bei -20°C lagern. Nach dem Versand ein Jahr lang stabil Aliquotieren ist bei -20^oC Lagerung nicht notwendig. 20ul Größen enthalten 0,1% BSA.

Hintergrundinformationen

The translocase of outer mitochondria membrane 40 (TOMM40, also known as TOM40), located in the center of the TOM complex, is a channel-forming subunit of translocase. It can facilitate the fluid movement of preproteins into the mitochondria by associating with TOMM20. TOMM40 plays a role in the assembly of the mitochondrial membrane respiratory chain NADH dehydrogenase (Complex I) by forming a complex with BCAP31 and mediating the translocation of Complex I components from the cytosol to the mitochondria (PMID: 31206022). TOMM40 has been reported to be associated with late-onset neurodegenerative diseases such as Alzheimer's disease and Parkinson's disease.

Publikationen

Species	Application	Title
mouse	WB	Nature; The ADP/ATP translocase drives mitophagy independent of nucleotide exchange.; Authors - Atsushi Hoshino
human	WB	Nature; In vivo imaging of mitochondrial membrane potential in non-small-cell lung cancer.; Authors - Milica Momcilovic
human	IF	Cell; Tau interactome maps synaptic and mitochondrial processes associated with neurodegeneration.; Authors - Tara E Tracy
human	WB	Cell Discov; The Fe-S cluster assembly protein IscU2 increases α-ketoglutarate catabolism and DNA 5mC to promote tumor growth; Authors - Xiaojun Ren
human	WB	Cell Metab; Quantitative high-confidence human mitochondrial proteome and its dynamics in cellular context.; Authors - Marcel Morgenstern ; KD Validated
monkey	WB,IF	Nat Cell Biol; MIROs and DRP1 drive mitochondrial-derived vesicle biogenesis and promote quality control.; Authors - Tim König

Rezensionen

The reviews below have been submitted by verified Proteintech customers who received an incentive for providing their feedback.

---

FH

Emilie (Verified Customer) (09-24-2025)

I applied it in IF (1:200), and it showed good performance.

• Applications: Immunofluorescence
• Cell Tissue Type: Fibroblasts

FH

Manon (Verified Customer) (09-17-2025)

We observed clear mitochondrial labeling with this antibody

• Applications: Immunofluorescence
• Primary Antibody Dilution: 1/200
• Cell Tissue Type: Fibroblasts

FH

Yan (Verified Customer) (10-21-2024)

Very good protein signal in BJ-hTERT cells in IF. I would recommend it to assess mitochondrial morphology.

• Applications: Immunofluorescence
• Primary Antibody Dilution: 1:1000
• Cell Tissue Type: BJ-hTERT

TOMM40 Antibody Immunofluorescence validation (1:1000 dilution) in BJ-hTERT (Cat no:18409-1-AP)

FH

Nuo (Verified Customer) (01-28-2023)

Good antibody for WB with high titer.

• Applications: Western Blot
• Primary Antibody Dilution: 1:2000
• Cell Tissue Type: mouse cortex lysate

TOMM40 Antibody Western Blot validation (1:2000 dilution) in mouse cortex lysate (Cat no:18409-1-AP)

FH

Süleyman (Verified Customer) (01-23-2022)

TOMM40 antibody (Green) is used 1:100 dilution (2 hour at RT) and 1:700 of Alexa Fluor 488 secondary antibody (1 hour RT). 4% Paraformaldehyde fixation for 10 min at RT. Permeabilization with 0.3% Triton X for 10-15 minutes at RT. 5% FBS in PBS used for blocking for 1 hour at RT. The image is colocalized with TOMM20 (Red). Blue is DAPI. As you can see there is colocalization with TOMM20 with TOMM40. It is a perfect colocalization. You might also reduce concentration to 1:300 as it was used low power of laser.

• Applications: Immunofluorescence
• Primary Antibody Dilution: 1:100
• Cell Tissue Type: HeLa FlipIn

TOMM40 Antibody Immunofluorescence validation (1:100 dilution) in HeLa FlipIn (Cat no:18409-1-AP)

FH

Tom (Verified Customer) (03-23-2021)

Cos7 cells fixed in 4% PFA and permeabilized in 0.1% Triton X-100. Cells blocked in 1% BSA in PBS.

• Applications: Immunofluorescence
• Primary Antibody Dilution: 1:200
• Cell Tissue Type: Cos7

TOMM40 Antibody Immunofluorescence validation (1:200 dilution) in Cos7 (Cat no:18409-1-AP)

FH

Daniela (Verified Customer) (01-08-2020)

Immunoblot of total cell lysate of HeLa cell gives three bands, one specific for human Tom40 above 37 KDa on 15% acrylamide gel, the other two no specific and with much lower intensity. The anti-Tom40 antibody worked very well and specifically when conjugated with magnetic beads for immunoprecipitation.

• Applications: Western Blot, Immunoprecipitation, Cell culture,
• Primary Antibody Dilution: 1:1000
• Cell Tissue Type: HeLa cells
