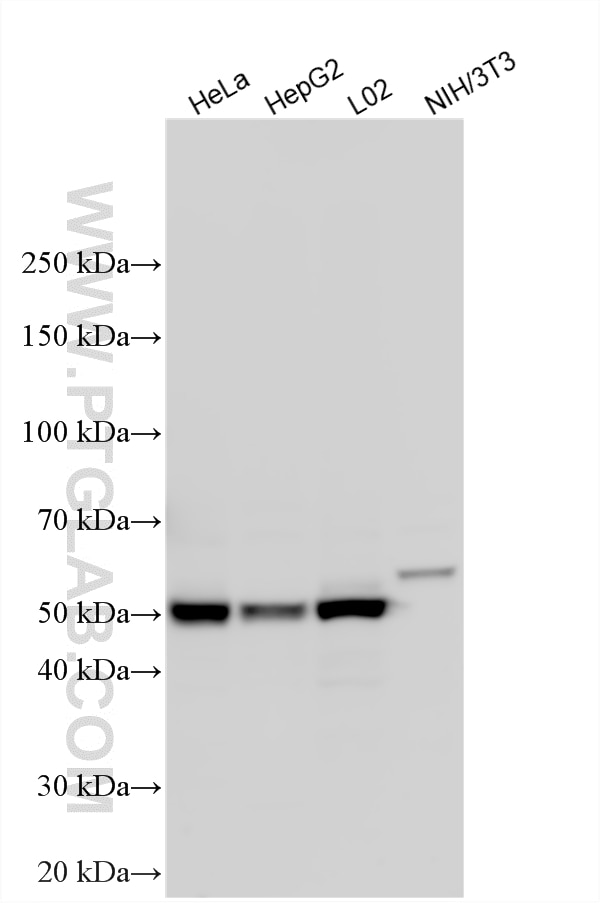

  • Western Blot (WB) analysis of various lysates using ARL13B Polyclonal antibody (17711-1-AP)

    WB analysis using 17711-1-AP

    Various lysates were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:3000 incubated at room temperature for 1.5 hours.

  • Western Blot (WB) analysis of mouse liver tissue using ARL13B Polyclonal antibody (17711-1-AP)

    WB analysis of mouse liver using 17711-1-AP

    mouse liver tissue were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

  • Western Blot (WB) analysis of various lysates using ARL13B Polyclonal antibody (17711-1-AP)

    WB analysis using 17711-1-AP

    rat liver tissue were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

  • Western Blot (WB) analysis of NIH/3T3 cells using ARL13B Polyclonal antibody (17711-1-AP)

    WB analysis of NIH/3T3 using 17711-1-AP

    NIH/3T3 cells were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:800 incubated at room temperature for 1.5 hours.

  • Western Blot (WB) analysis of mouse kidney tissue using ARL13B Polyclonal antibody (17711-1-AP)

    WB analysis of mouse kidney using 17711-1-AP

    mouse kidney tissue were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:500 incubated at room temperature for 1.5 hours.

  • Western Blot (WB) analysis of mouse brain tissue using ARL13B Polyclonal antibody (17711-1-AP)

    WB analysis of mouse brain using 17711-1-AP

    mouse brain tissue were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:800 incubated at room temperature for 1.5 hours.

  • Western Blot (WB) analysis of L02 cells using ARL13B Polyclonal antibody (17711-1-AP)

    WB analysis of L02 using 17711-1-AP

    L02 cells were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

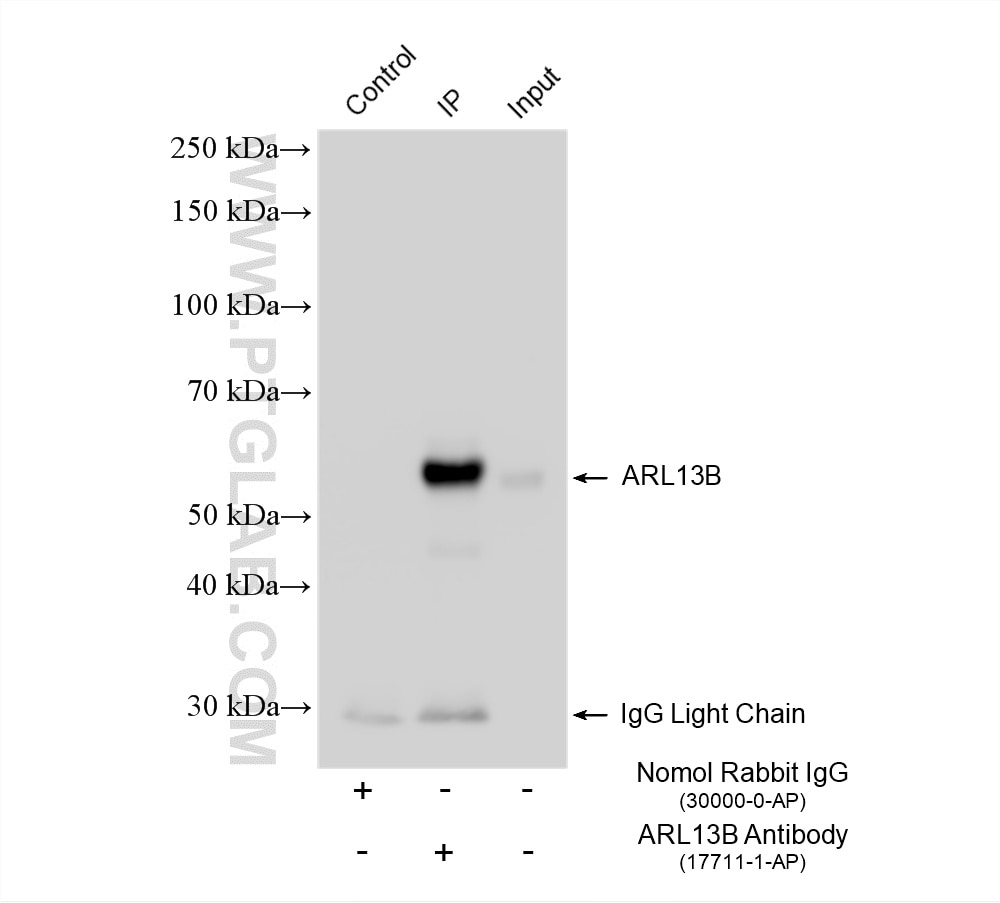

  • Immunoprecipitation (IP) experiment of L02 cells using ARL13B Polyclonal antibody (17711-1-AP)

    IP experiment of L02 using 17711-1-AP

    IP result of anti-ARL13B (IP:17711-1-AP, 3ug; Detection:17711-1-AP 1:1000) with L02 cells lysate 2500ug.

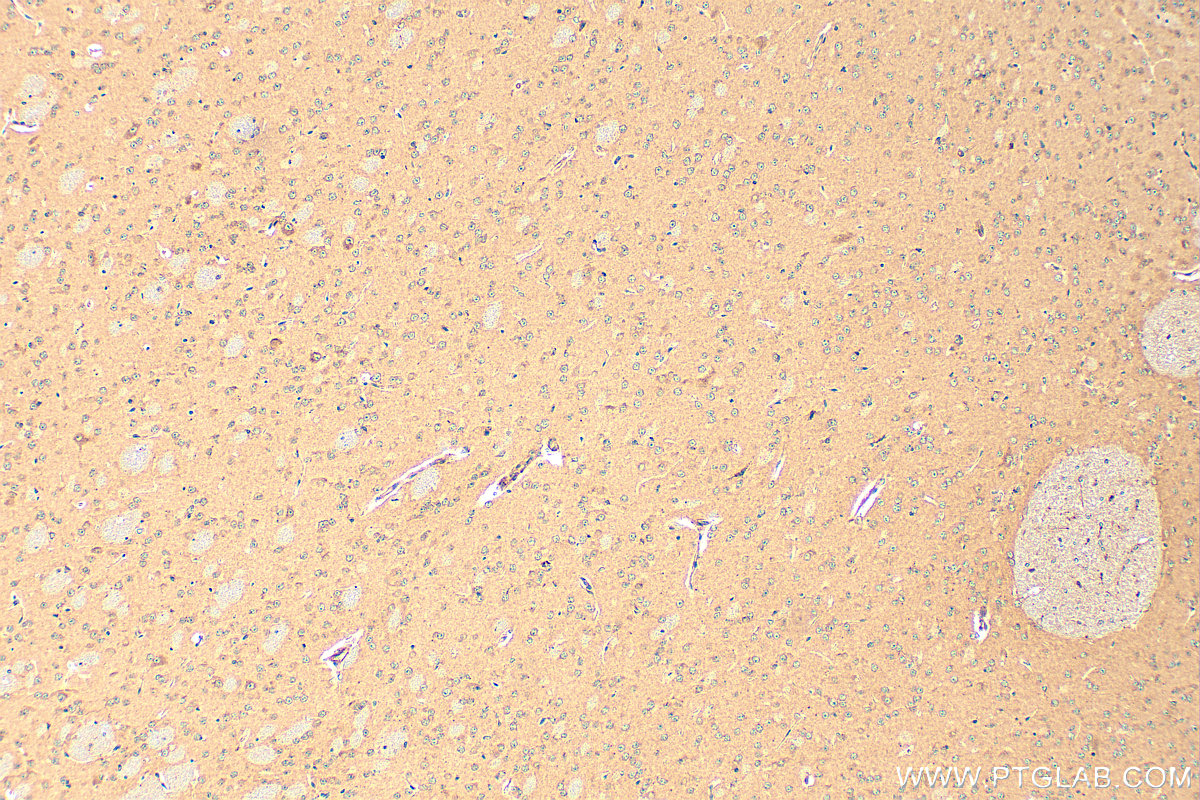

  • Immunohistochemistry (IHC) staining of mouse brain tissue using ARL13B Polyclonal antibody (17711-1-AP)

    IHC staining of mouse brain using 17711-1-AP

    Immunohistochemical analysis of paraffin-embedded mouse brain tissue slide using 17711-1-AP (ARL13B antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

  • Immunohistochemistry (IHC) staining of mouse brain tissue using ARL13B Polyclonal antibody (17711-1-AP)

    IHC staining of mouse brain using 17711-1-AP

    Immunohistochemical analysis of paraffin-embedded mouse brain tissue slide using 17711-1-AP (ARL13B antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

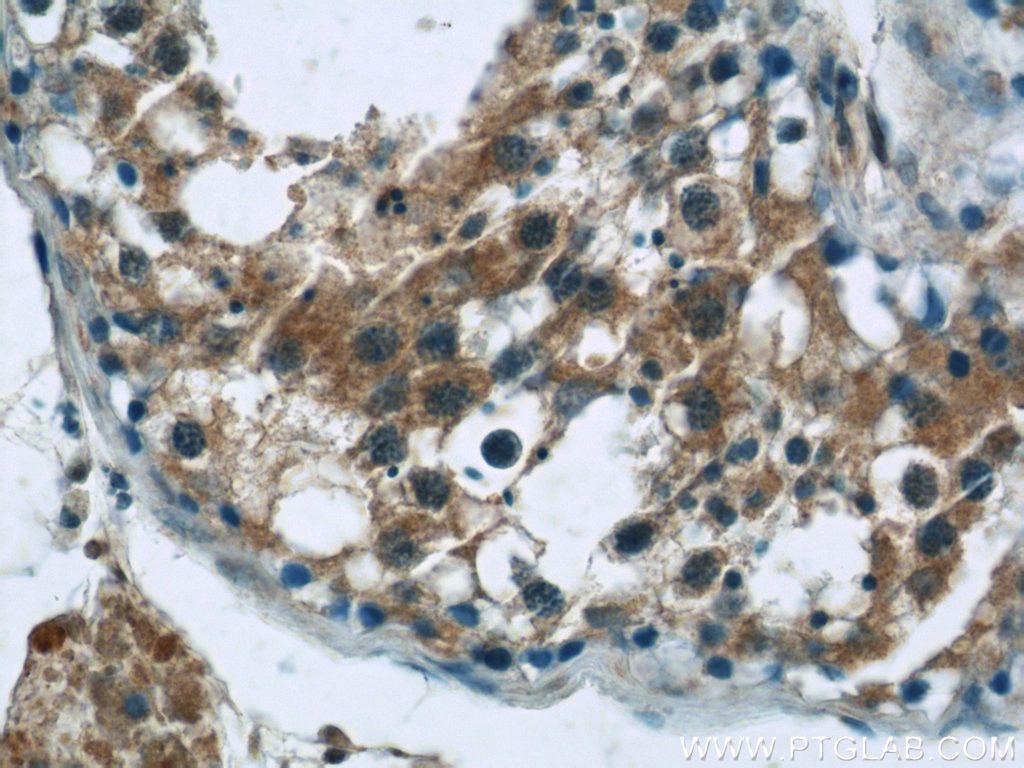

  • Immunohistochemistry (IHC) staining of human testis tissue using ARL13B Polyclonal antibody (17711-1-AP)

    IHC staining of human testis using 17711-1-AP

    Immunohistochemical analysis of paraffin-embedded human testis tissue slide using 17711-1-AP (ARL13B Antibody) at dilution of 1:50 (under 10x lens).

  • Immunohistochemistry (IHC) staining of human testis tissue using ARL13B Polyclonal antibody (17711-1-AP)

    IHC staining of human testis using 17711-1-AP

    Immunohistochemical analysis of paraffin-embedded human testis tissue slide using 17711-1-AP (ARL13B Antibody) at dilution of 1:50 (under 40x lens).

  • Immunohistochemistry (IHC) staining of human liver tissue using ARL13B Polyclonal antibody (17711-1-AP)

    IHC staining of human liver using 17711-1-AP

    Immunohistochemical analysis of paraffin-embedded human liver using 17711-1-AP (ARL13B antibody) at dilution of 1:50 (under 10x lens).

  • Immunohistochemistry (IHC) staining of human liver tissue using ARL13B Polyclonal antibody (17711-1-AP)

    IHC staining of human liver using 17711-1-AP

    Immunohistochemical analysis of paraffin-embedded human liver using 17711-1-AP (ARL13B antibody) at dilution of 1:50 (under 40x lens).

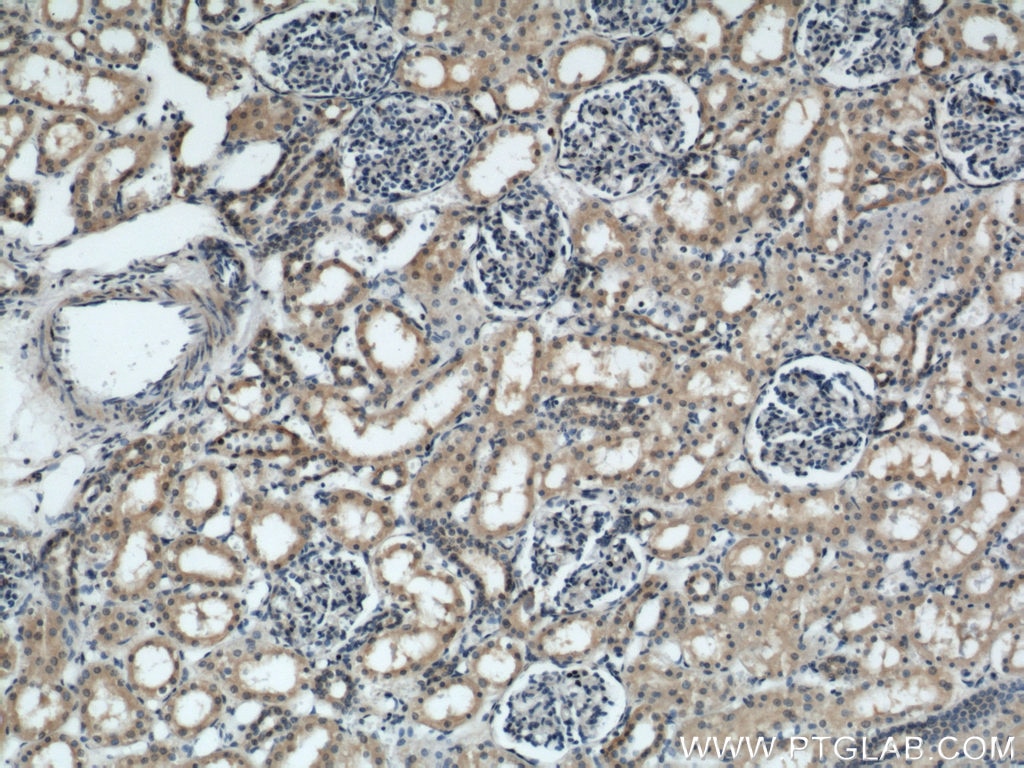

  • Immunohistochemistry (IHC) staining of human kidney tissue using ARL13B Polyclonal antibody (17711-1-AP)

    IHC staining of human kidney using 17711-1-AP

    Immunohistochemical analysis of paraffin-embedded human kidney using 17711-1-AP (ARL13B antibody) at dilution of 1:50 (under 10x lens).

  • Immunohistochemistry (IHC) staining of human kidney tissue using ARL13B Polyclonal antibody (17711-1-AP)

    IHC staining of human kidney using 17711-1-AP

    Immunohistochemical analysis of paraffin-embedded human kidney using 17711-1-AP (ARL13B antibody) at dilution of 1:50 (under 40x lens).

  • Immunofluorescence (IF) / fluorescent staining of hTERT-RPE1 cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of hTERT-RPE1 using 17711-1-AP

    Immunofluorescent analysis of (4% PFA) fixed hTERT-RPE1 cells using ARL13B antibody (17711-1-AP) at dilution of 1:400 and Multi-rAb CoraLite ® Plus 488-Goat Anti-Rabbit Recombinant Secondary Antibody (H+L) (RGAR002).

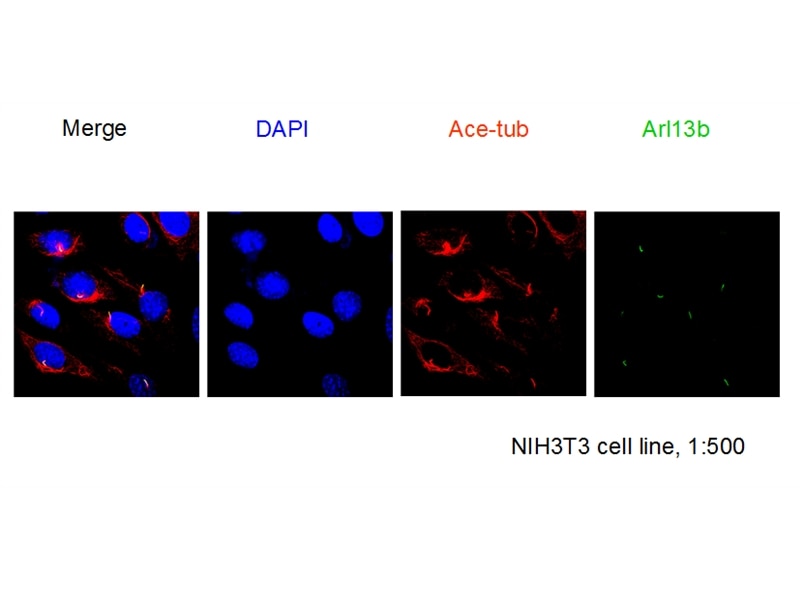

  • Immunofluorescence (IF) / fluorescent staining of NIH3T3 cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of NIH3T3 cells using 17711-1-AP

    IF result of anti-ARL13B (17711-1-AP) in NIH3T3 cell by Dr. Sudipto.

  • Immunofluorescence (IF) / fluorescent staining of MDCK cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of MDCK using 17711-1-AP

    Immunofluorescent analysis of (4% PFA) fixed MDCK cells using ARL13B antibody (17711-1-AP) at dilution of 1:200 and CoraLite®594-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).

  • Immunofluorescence (IF) / fluorescent staining of hTERT-RPE1 cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of hTERT-RPE1 using 17711-1-AP

    Immunofluorescent analysis of (4% PFA) fixed hTERT-RPE1 cells using ARL13B antibody (17711-1-AP) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L), acetylated Tubulin(Lys40) antibody (66200-1-Ig, Clone: 7E5H8, red).

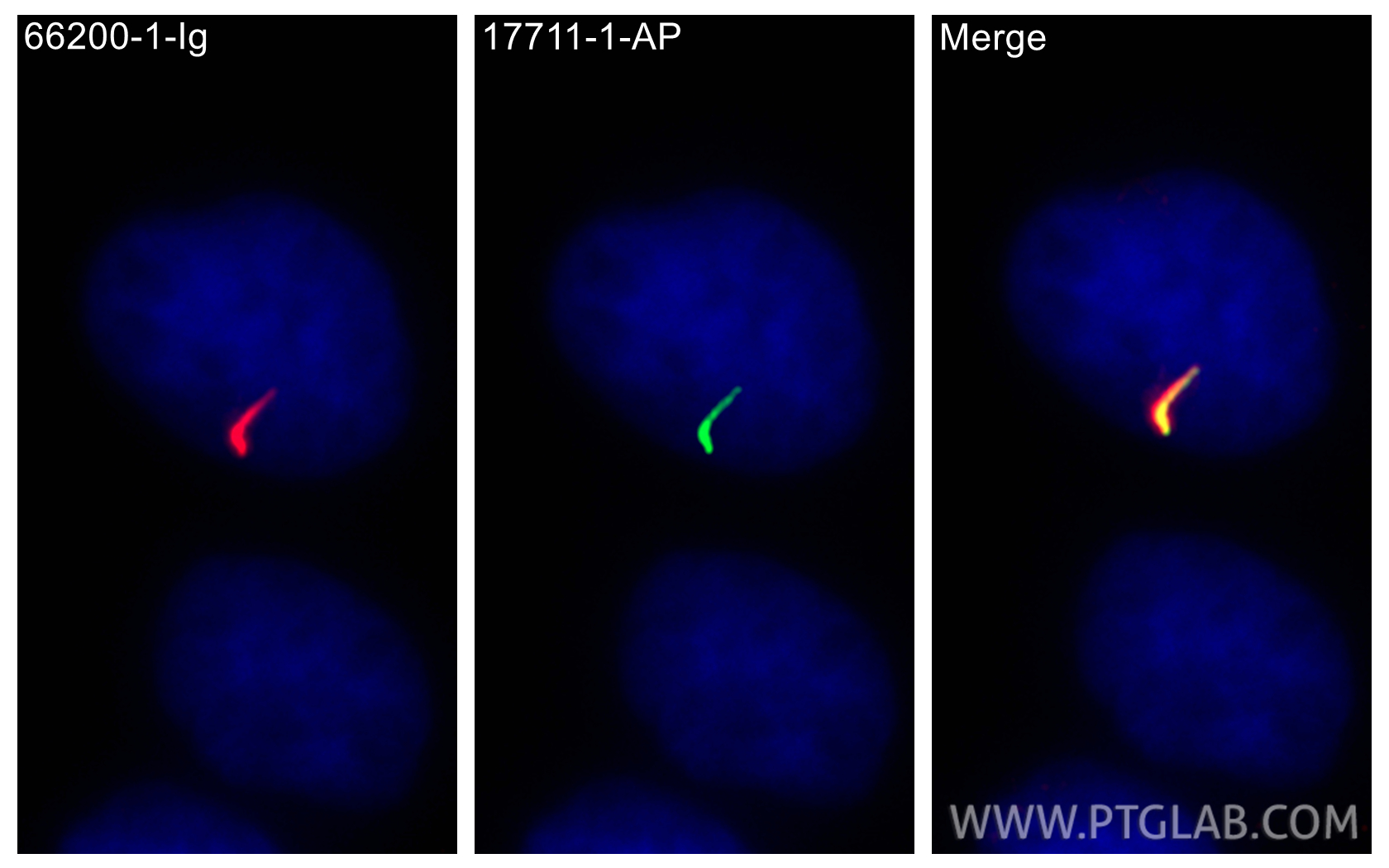

  • Immunofluorescence (IF) / fluorescent staining of MDCK cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of MDCK using 17711-1-AP

    Immunofluorescent analysis of (4% PFA) fixed MDCK cells using 17711-1-AP (ARL13B antibody) at dilution of 1:50 and Alexa Fluor 488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).

  • Immunofluorescence (IF) / fluorescent staining of hTERT-RPE1 cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of hTERT-RPE1 using 17711-1-AP

    Immunofluorescent analysis of (4% PFA) fixed hTERT-RPE1 cells using ARL13B antibody (17711-1-AP) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L), acetylated Tubulin(Lys40) antibody (66200-1-Ig, Clone: 7E5H8, red).

  • Immunofluorescence (IF) / fluorescent staining of MDCK cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of MDCK using 17711-1-AP

    Immunofluorescent images of MDCK cells stained with ARL13B rabbit pAb (17711-1-AP) and acetylated tubulin mouse mAb (66200-1-Ig) at dilution of 1:50, further stained with Alexa Fluor 488-conjugated AffiniPure-Goat anti-Rabbit IgG(H+L) for 17711-1-AP, and Alexa Fluor 594-conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) for 66200-1-Ig.

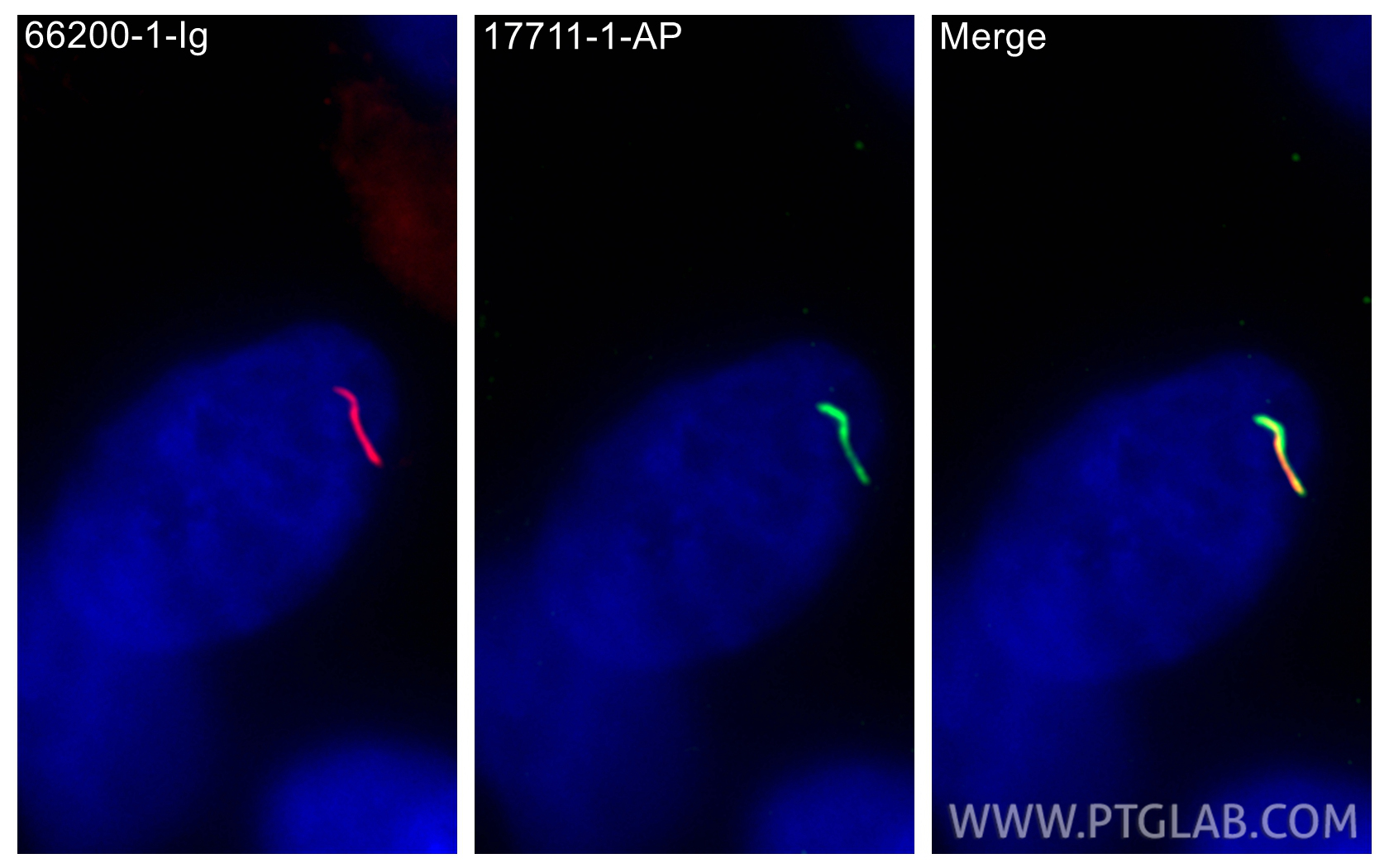

  • Immunofluorescence (IF) / fluorescent staining of MDCK cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of MDCK using 17711-1-AP

    Immunofluorescent analysis of (4% PFA) fixed MDCK cells using 17711-1-AP (ARL13B antibody) at dilution of 1:200 and Alexa Fluor 488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).

  • Immunofluorescence (IF) / fluorescent staining of hTERT-RPE1 cells using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of hTERT-RPE1 using 17711-1-AP

    IF result of ARL13B antibody (17711-1-AP) in hTERT-RPE cell fixed with 4% PFA or Methanol.

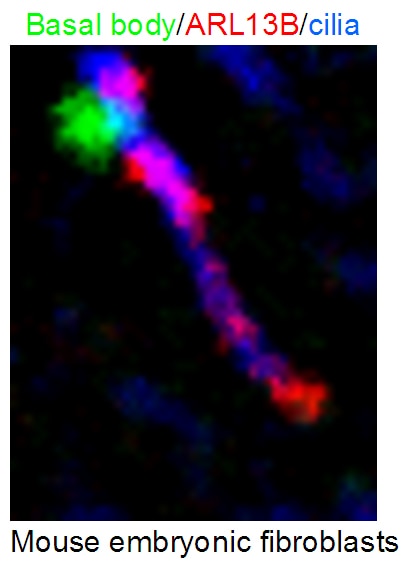

  • Immunofluorescence (IF) / fluorescent staining of mouse embryonic fibroblasts using ARL13B Polyclonal antibody (17711-1-AP)

    IF Staining of mouse embryonic fibroblasts using 17711-1-AP

    IF result from Dr. Corbit, Kevin. anti-ARL13B (17711-1-AP) mark the cilium of Mouse embryonic fibroblasts.

  • Featured Product
  • KD/KO Validated

ARL13B Polyclonal antibody

The ARL13B polyclonal antibody (17711-1-AP) is the highest cited ARL13B antibody in the market with 844 citations.
Cat No. 17711-1-AP
Publications(844)
Reviews (15)

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat, canine and More (6)

Applications

WB, IHC, IF/ICC, IP, ELISA

Synonyms

ARL2-like protein 1, ARL2L1, ARL2 like protein 1, ADP-ribosylation factor-like protein 2-like 1, ADP-ribosylation factor-like protein 13B

Formulation:  PBS and Azide
PBS and Azide
Conjugate:  Unconjugated
Size/Concentration:

-/ -

Freight/Packing: -

Quantity

- +

Request bulk or custom quote

Please visit your regions distributor:

Tested Applications

Positive WB detected inL02 cells, NIH/3T3 cells, mouse liver tissue, mouse kidney tissue, mouse brain tissue, rat liver tissue, rat kidney tissue
Positive IP detected inL02 cells
Positive IHC detected inmouse brain tissue, human kidney tissue, human liver tissue, human testis tissue
Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
Positive IF/ICC detected inhTERT-RPE1 cells, NIH3T3 cells, MDCK cells

Recommended dilution

ApplicationDilution
Western Blot (WB)WB : 1:1000-1:6000
Immunoprecipitation (IP)IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
Immunohistochemistry (IHC)IHC : 1:50-1:500
Immunofluorescence (IF)/ICCIF/ICC : 1:200-1:800
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Product Information

17711-1-AP targets ARL13B in WB, IHC, IF/ICC, IP, ELISA applications and shows reactivity with human, mouse, rat, canine samples.

Tested Reactivity human, mouse, rat, canine
Cited Reactivityhuman, mouse, rat, pig, canine, monkey, chicken, zebrafish, sheep, xenopus
Host / Isotype Rabbit / IgG
Class Polyclonal
Type Antibody
Immunogen ARL13B fusion protein Ag12015 Predict reactive species
Full Name ADP-ribosylation factor-like 13B
Calculated Molecular Weight 48 kDa
Observed Molecular Weight 40-48 kDa, 60 kDa
GenBank Accession NumberBC094725
Gene Symbol ARL13B
Gene ID (NCBI) 200894
RRIDAB_2060867
Conjugate Unconjugated
Form Liquid
Purification MethodAntigen affinity purification
UNIPROT IDQ3SXY8
Storage Buffer PBS with 0.02% sodium azide and 50% glycerol, pH 7.3.
Storage ConditionsStore at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage. 20ul sizes contain 0.1% BSA.

Background Information

ARL13B, also named as ARL2L1, is a small ciliary G protein of the Ras superfamily. Localized in the cilia, it is required for cilium biogenesis and sonic hedgehog signaling. Defects in ARL13B are the cause of Joubert syndrome (JS) which is an autosomal recessive disorder characterized by a distinctive cerebellar malformation (PMID: 19906870).This antibody detects two specific bands at 60 kDa and 48 kDa. Arl13b is predicted to be a 48 kDa protein, and the 60 kDa band is likely to represent a modified form of Arl13b. ARL13B can be used to mark the cilia (PMID:22072986).

Protocols

Product Specific Protocols
WB protocol for ARL13B antibody 17711-1-APDownload protocol
IHC protocol for ARL13B antibody 17711-1-APDownload protocol
IF protocol for ARL13B antibody 17711-1-APDownload protocol
IP protocol for ARL13B antibody 17711-1-APDownload protocol
Standard Protocols
Click here to view our Standard Protocols

Publications

SpeciesApplicationTitle
mouseIF

Cell

The developmental basis of fingerprint pattern formation and variation

Authors - James D Glover
View Article
humanIF

Nat Biotechnol

Guided self-organization and cortical plate formation in human brain organoids.

Authors - Madeline A Lancaster
View Article
mouseIF

Nature

Quantitative lineage analysis identifies a hepato-pancreato-biliary progenitor niche.

Authors - David Willnow
View Article
mouseIF

Science

Control of meiotic chromosomal bouquet and germ cell morphogenesis by the zygotene cilium.

Authors - Avishag Mytlis
View Article
humanIF

Nature

A slow-cycling LGR5 tumour population mediates basal cell carcinoma relapse after therapy.

Authors - Adriana Sánchez-Danés
View Article
mouseIF

Nature

Aspm knockout ferret reveals an evolutionary mechanism governing cerebral cortical size.

Authors - Matthew B Johnson
View Article

Reviews

The reviews below have been submitted by verified Proteintech customers who received an incentive for providing their feedback.

FH

Ludovic (Verified Customer) (12-10-2023)

The perfect antibody, works each time!

  • Applications: Immunofluorescence
  • Primary Antibody Dilution: 1:500 to 1:1000
  • Cell Tissue Type: Chodnrocytes
FH

Gagan (Verified Customer) (07-02-2023)

Antibody gives good staining for cilia.

  • Applications: Immunofluorescence
  • Primary Antibody Dilution: 1:500
  • Cell Tissue Type: Mammalian cells - Hk-2
ARL13B Antibody Immunofluorescence validation (1:500 dilution) in Mammalian cells - Hk-2 (Cat no:17711-1-AP)
FH

Mi (Verified Customer) (05-29-2023)

An excellent antibody, it works pretty well in human white adipocytes!

  • Applications: Immunofluorescence
  • Primary Antibody Dilution: 1:500
  • Cell Tissue Type: adipocytes
FH

Elisa (Verified Customer) (03-17-2023)

Great antibody for centrosome and cilia visualizationin RPE1 cells. Cells were fixed in cold methanol for 10' at -20C, rehydrated with PBS for 5', and permeabilized with 0.1% Triton + 0.1% Tween +0.01%SDS in PBS for 5'. Cells were finally incubated with blocking buffer (5% BSA+ 0.1% Tween in PBS) for 30' at RT. Primary antibody was diluted in blocking buffer 1:200 and incubated for 1h at room temperature. Alexa-555-Anti-rabbit was used as secondary antibody (1:600 dilution) (1h at room temperature). Image show Arl13b (in magenta), DNA (Hoechst in blue) and g-tubulin (in green).

  • Applications: Immunofluorescence
  • Primary Antibody Dilution: 1:400
  • Cell Tissue Type: Human retinal pigment epithelial-1 (RPE-1)
ARL13B Antibody Immunofluorescence validation (1:400 dilution) in Human retinal pigment epithelial-1 (RPE-1) (Cat no:17711-1-AP)
FH

Serhiy (Verified Customer) (12-21-2022)

Excellent for immunofluorescent staining of ciliary Arl13b in mouse cells. Image shows ciliary axonemes immunostained for Arl13b (red).

  • Applications: Immunofluorescence
  • Primary Antibody Dilution: 1:200
  • Cell Tissue Type: Fibroblasts, kidney collecting duct cells.
ARL13B Antibody Immunofluorescence validation (1:200 dilution) in Fibroblasts, kidney collecting duct cells. (Cat no:17711-1-AP)
FH

Kaviya (Verified Customer) (09-19-2022)

I use this antibody for IHC on brain tissue sections and it generally works well.

  • Applications: Immunohistochemistry
  • Primary Antibody Dilution: 1:500
FH

Charlotte (Verified Customer) (07-29-2022)

NIH-3T3 stained in DAPI (nucleus), FITC (gamma tubulin), Cy3 (Arl13b). The last picture is the merged channels (FITC and Cy3). On the merged channel, we can conclude that all Cy3 signal is validated by the FITC one (gamma tubulin is present at the base of the primary cilia). Perfect antibody !

  • Applications: Immunofluorescence
  • Primary Antibody Dilution: 1/1000
  • Cell Tissue Type: NIH-3T3
ARL13B Antibody Immunofluorescence validation (1/1000 dilution) in NIH-3T3 (Cat no:17711-1-AP)
FH

Sarah (Verified Customer) (02-16-2021)

Works beautifully in all cell types I've tried. Specifically great to see it work in primary cells (glioblastoma, pictured) as well as iPSCs

  • Applications: Immunofluorescence
  • Primary Antibody Dilution: 1:300
  • Cell Tissue Type: Primary glioblastoma cells and iPSC
ARL13B Antibody Immunofluorescence validation (1:300 dilution) in Primary glioblastoma cells and iPSC (Cat no:17711-1-AP)
FH

deng (Verified Customer) (01-30-2020)

Very good for cilia staining

  • Applications: Immunofluorescence,
  • Primary Antibody Dilution: 1 : 250
  • Cell Tissue Type: RPE cells
ARL13B Antibody Immunofluorescence, validation (1 : 250 dilution) in RPE cells (Cat no:17711-1-AP)
FH

Gabriela (Verified Customer) (01-01-2020)

Very specific antibody for primary cilia. We use it in chicken embryos spinal cord.

  • Applications: Immunofluorescence,
  • Primary Antibody Dilution: 1:200
  • Cell Tissue Type: spinal cord/Chicken
FH

KARTHIKEYAN (Verified Customer) (11-20-2019)

This antibody works really well in human and mouse cell lines and in zebrafish samples, we used this antibody for WB, IF and Flow cytometry.

  • Applications: Western Blot, Immunofluorescence,
  • Primary Antibody Dilution: 1:1000 for WB and 1:200 for IF
  • Cell Tissue Type: Brain Endothelial cells, brain pericytes, zebrafish embryos

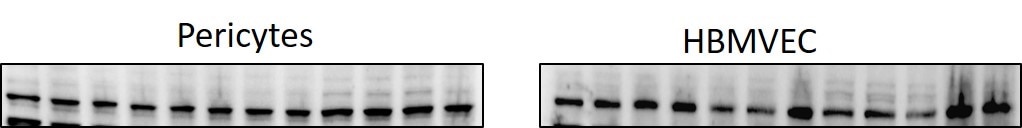

ARL13B Antibody Western Blot,Immunofluorescence, validation (1:1000 for WB and 1:200 for IF dilution) in Brain Endothelial cells, brain pericytes, zebrafish embryos (Cat no:17711-1-AP)
FH

Rebeca (Verified Customer) (09-26-2019)

I have used this antibody for several immunofluorescence stainings of primary cilia. The antibody works beautifully, would definitely recommend!

  • Applications: Immunofluorescence,
  • Primary Antibody Dilution: 1:200
  • Cell Tissue Type: Mouse pancreatic organoids
FH

Pavel (Verified Customer) (09-18-2019)

Strong ciliary staining in MDCK cells. Works both with PFA and MeOH fixation.

  • Applications: Immunofluorescence,
  • Primary Antibody Dilution: 1/200
  • Cell Tissue Type: MDCK cells
FH

Lindsey (Verified Customer) (02-04-2019)

Excellent specificity with minimal background/nonspecific binding; This antibody is ideal because it works just as well in embryonic mouse tissue as it does in adult. I couldn't recommend this product more!

  • Applications: Immunofluorescence,
  • Primary Antibody Dilution: 1:1000
  • Cell Tissue Type: E11.25 Dorsal Root Ganglion/Embryonic Neural Crest Cells
ARL13B Antibody Immunofluorescence, validation (1:1000 dilution) in E11.25 Dorsal Root Ganglion/Embryonic Neural Crest Cells (Cat no:17711-1-AP)
FH

Kishor (Verified Customer) (01-30-2019)

I am very much satisfied with this produced, working good for WB (1:1000) and for IF (1:200)

  • Applications: Western Blot, Immunofluorescence,
  • Primary Antibody Dilution: 1:1000 and 1:200
  • Cell Tissue Type: H69, HUCCT-1 and Rat Liver tissue
