PDE5A Recombinant antibody, PBS Only (Detector)

•

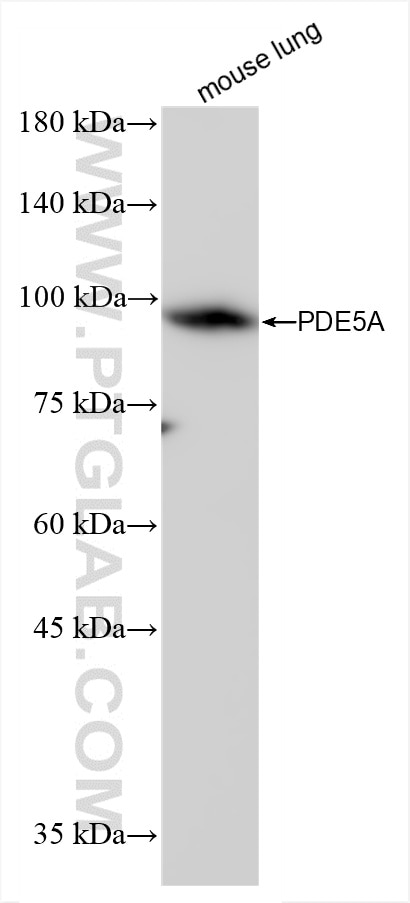

  WB analysis of mouse lung using 85030-1-RR (same clone as 85030-1-PBS)

  mouse lung tissue were subjected to SDS PAGE followed by western blot with 85030-1-RR (PDE5A antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 85030-1-PBS in a different storage buffer formulation.

•

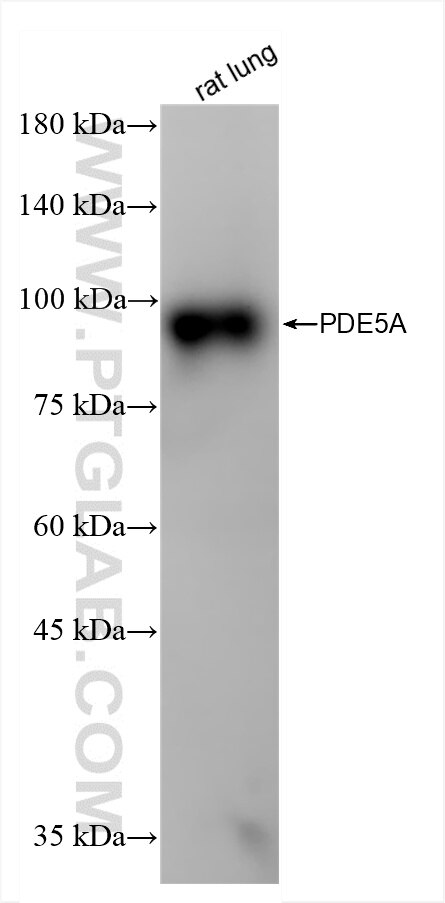

  WB analysis of rat lung using 85030-1-RR (same clone as 85030-1-PBS)

  rat lung tissue were subjected to SDS PAGE followed by western blot with 85030-1-RR (PDE5A antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 85030-1-PBS in a different storage buffer formulation.

•

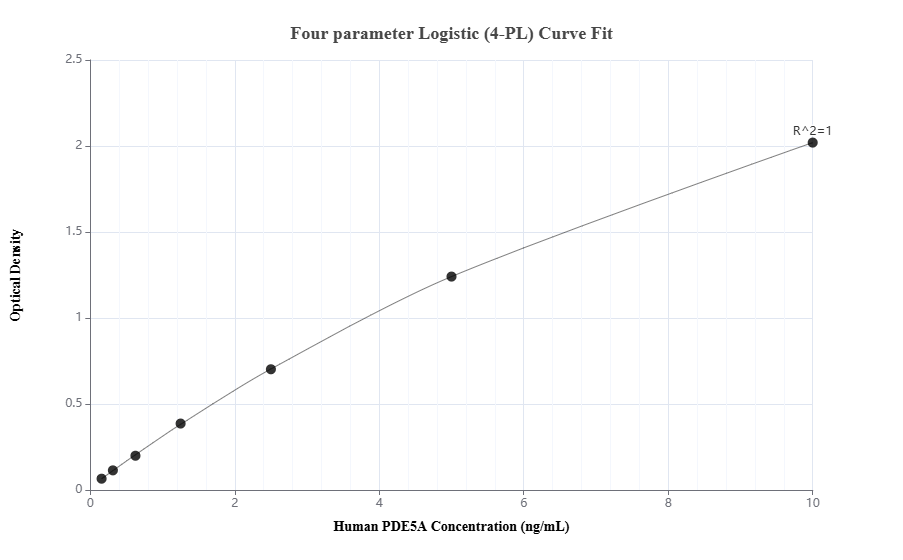

  Sandwich ELISA standard curve of MP01762-3

  Sandwich ELISA standard curve of MP01762-3, Human PDE5A Recombinant Matched Antibody Pair - PBS only. 85030-4-PBS was coated to a plate as the capture antibody and incubated with serial dilutions of standard Ag18779. 85030-1-PBS was HRP conjugated as the detection antibody. Range: 0.156-10 ng/mL

•

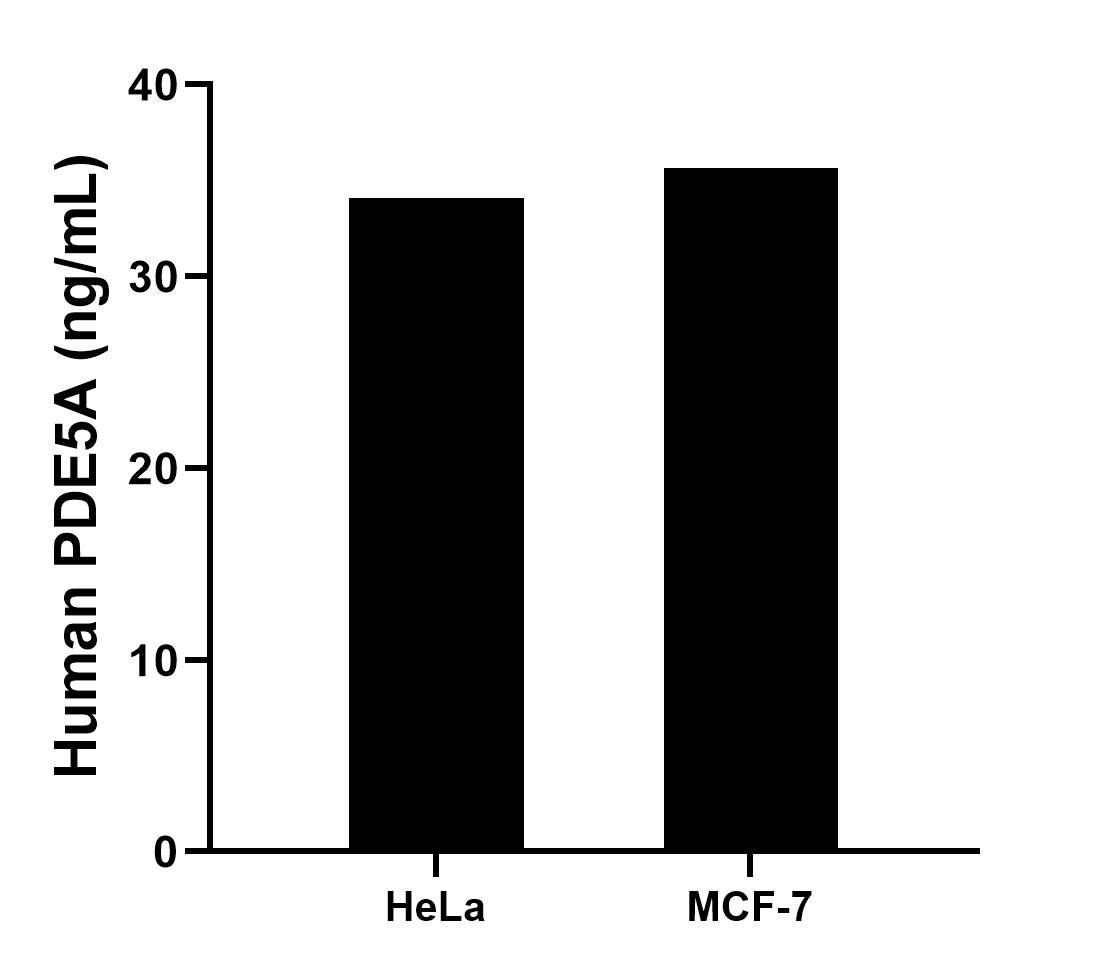

  Sample test of MP01762-3

  The mean PDE5A concentration was determined to be 34.07 ng/mL in HeLa cell extract based on a 1.5 mg/mL extract load and 35.64 ng/mL in MCF-7 cell extract based on a 1.2 mg/mL extract load.

•

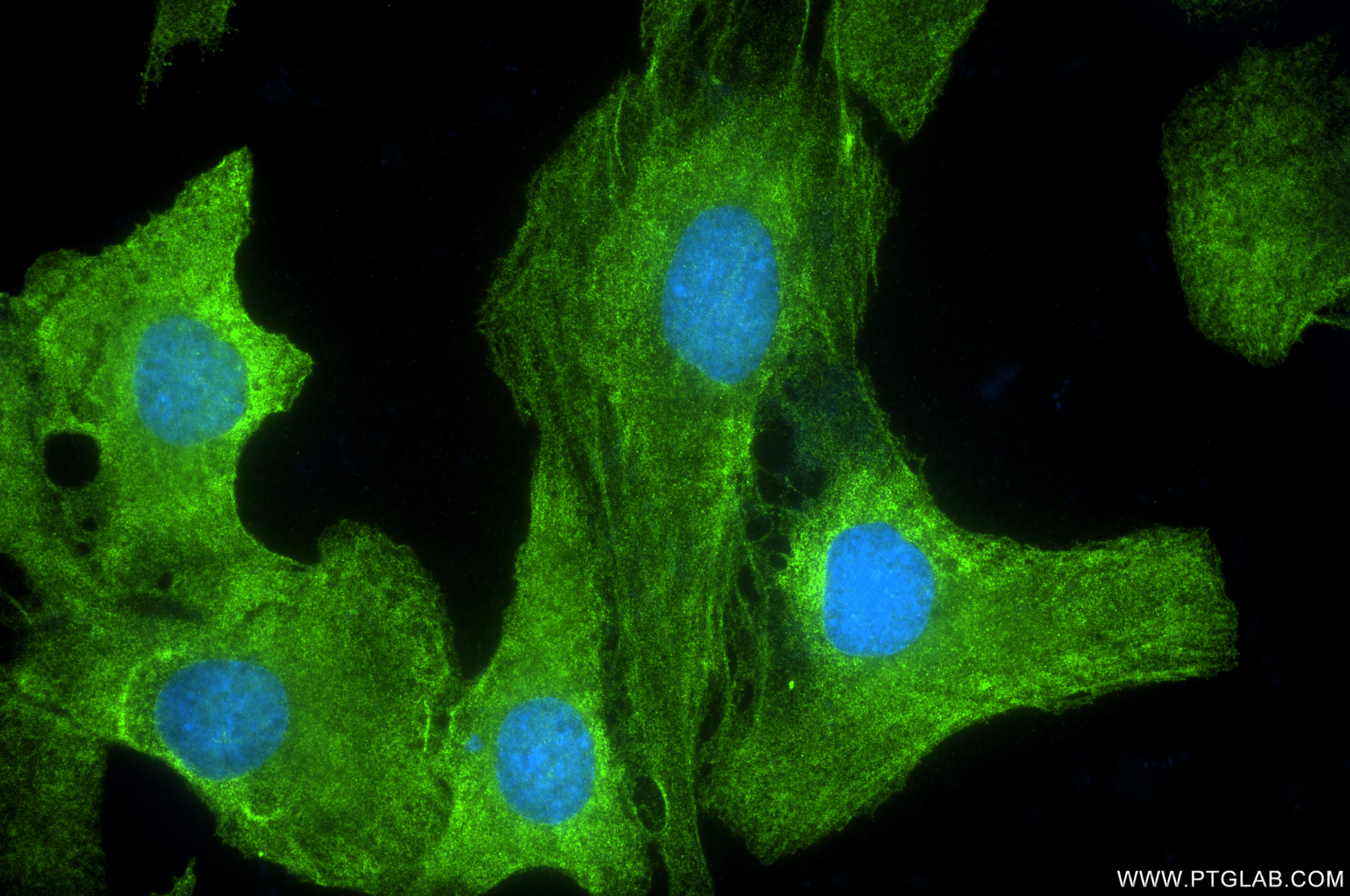

  IF Staining of SKOV-3 using 85030-1-RR (same clone as 85030-1-PBS)

  Immunofluorescent analysis of (4% PFA) fixed SKOV-3 cells using PDE5A antibody (85030-1-RR, Clone: 242597B10 ) at dilution of 1:400 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2). This data was developed using the same antibody clone with 85030-1-PBS in a different storage buffer formulation.

•

  Cytometric bead array standard curve of MP01762-1

  Cytometric bead array standard curve of MP01762-1, PDE5A Recombinant Matched Antibody Pair, PBS Only. Capture antibody: 85030-2-PBS. Detection antibody: 85030-1-PBS. Standard: Ag18779. Range: 0.625-80 ng/mL.

•

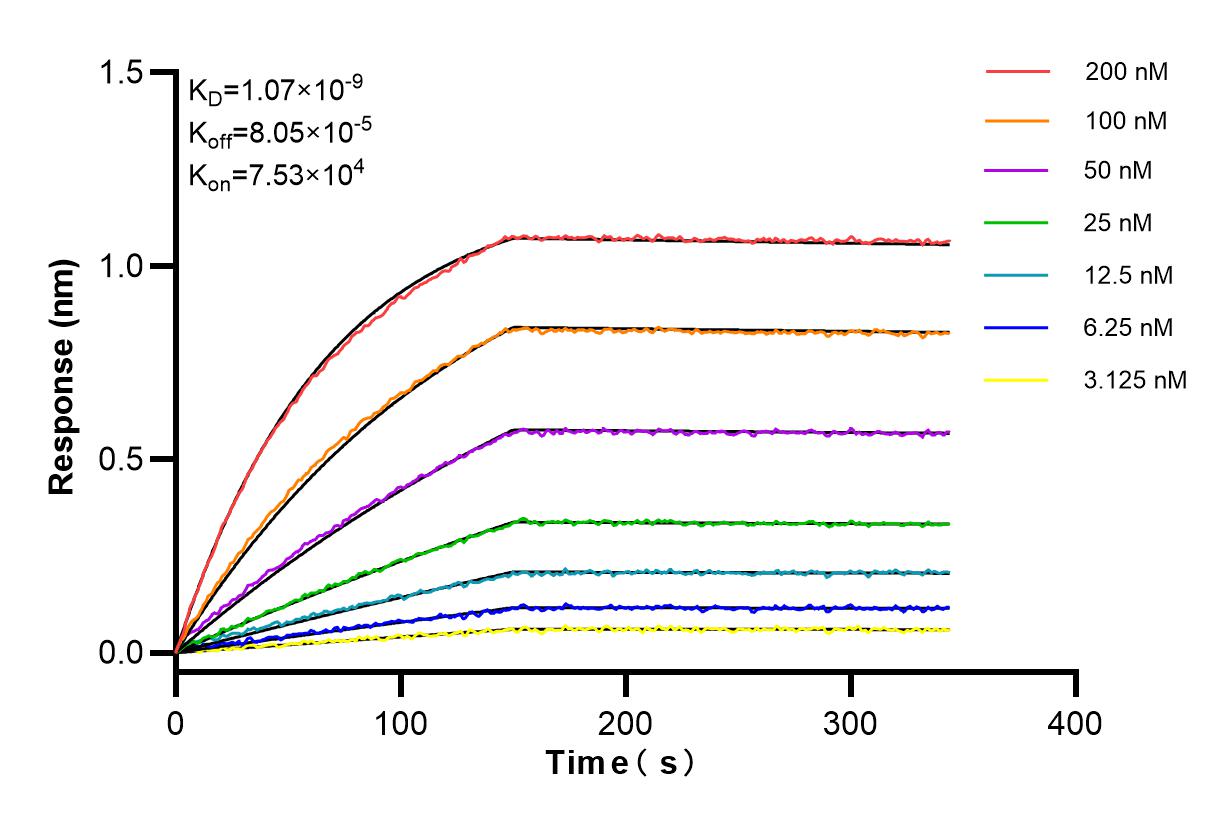

  Affinity and Kinetic Characterization of 85030-1-RR

  Biolayer interferometry (BLl) kinetic assays of 85030-1-RR against Human PDE5A were performed. The affinity constant is 1.07 nM.

PDE5A Uni-rAb^TM Recombinant Antibody for WB, IF/ICC, Cytometric bead array, Sandwich ELISA, Indirect ELISA, Sample test

Cat No. 85030-1-PBS

Clone No.242597B10

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat

Applications

WB, IF/ICC, Cytometric bead array, Sandwich ELISA, Indirect ELISA, Sample test

Synonyms

EC:3.1.4.35, CN5A, cGMP-specific 3',5'-cyclic phosphodiesterase, cGMP-binding cGMP-specific phosphodiesterase, CGB-PDE

---

Product Information

85030-1-PBS targets PDE5A as part of a matched antibody pair:

MP01762-1: 85030-2-PBS capture and 85030-1-PBS detection (validated in Cytometric bead array)

MP01762-3: 85030-4-PBS capture and 85030-1-PBS detection (validated in Sandwich ELISA)

Unconjugated rabbit recombinant monoclonal antibody in PBS only (BSA and azide free) storage buffer at a concentration of 1 mg/mL, ready for conjugation. Created using Proteintech’s proprietary in-house recombinant technology. Recombinant production enables unrivalled batch-to-batch consistency, easy scale-up, and future security of supply.

This conjugation ready format makes antibodies ideal for use in many applications including: ELISAs, multiplex assays requiring matched pairs, mass cytometry, and multiplex imaging applications.Antibody use should be optimized by the end user for each application and assay.

• Tested Reactivity: human, mouse, rat
• Host / Isotype: Rabbit / IgG
• Class: Recombinant
• Type: Antibody
• Immunogen: PDE5A fusion protein Ag18779
• Full Name: phosphodiesterase 5A, cGMP-specific
• Calculated Molecular Weight: 875 aa, 100 kDa
• Observed Molecular Weight: 100 kDa
• GenBank Accession Number: BC126233
• Gene Symbol: PDE5A
• Gene ID (NCBI): 8654
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein A purification
• UNIPROT ID: O76074
• Storage Buffer: PBS only, pH 7.3.
• Storage Conditions: Store at -80°C.

Background Information

PDE5A (cGMP-binding cGMP-specific phosphodiesterase) plays a role in signal transduction by regulating the intracellular concentration of cyclic nucleotides. This phosphodiesterase catalyzes the specific hydrolysis of cGMP to 5'-GMP. Through alternative splicing, the PDE5A gene produces three proteins (PDE5A1, PDE5A2, and PDE5A3) that differ in their N termini and range in mass from 89 to 105 kDa. (PMID: 25704994; 21215707). A second 70 kDa band was consistently observed in heart tissue that either reflected a splice variant or proteolytic fragment of PDE5A. (PMID: 15576651).
