Annexin A2 Monoclonal antibody

• Featured Product
• KD/KO Validated

Annexin A2 Monoclonal Antibody for WB, IHC, IF/ICC, IP, ELISA

Host / Isotype

Mouse / IgG2b

Reactivity

human, mouse, rat

Applications

WB, IHC, IF/ICC, IP, CoIP, ELISA

Conjugate

Unconjugated

Publications

7

CloneNo.

3H1B11

Cat no : 60051-1-Ig

Synonyms

ANXA2, ANX2L4, ANX2, Annexin-2, Annexin II

---

Validation Data Gallery

•

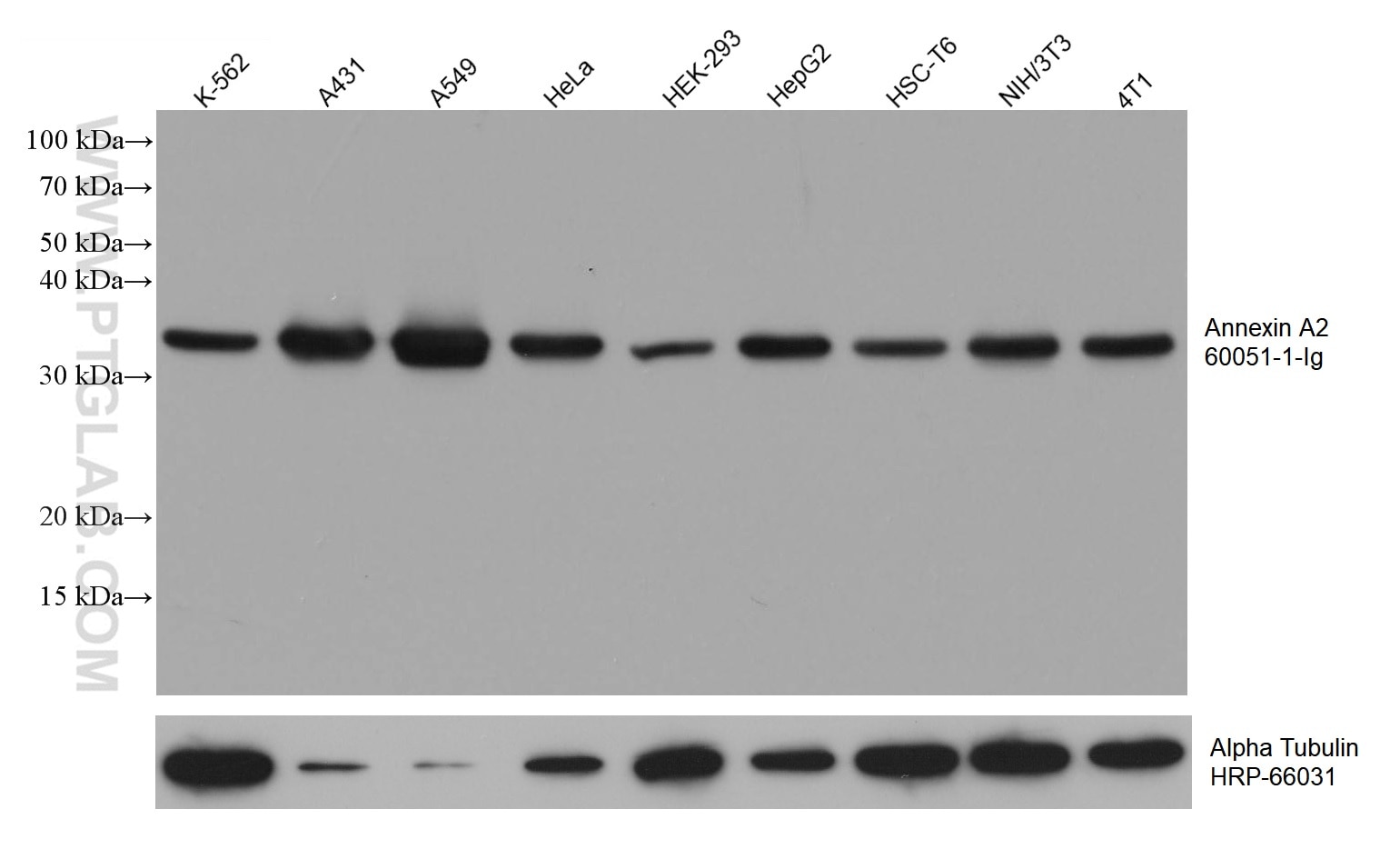

  WB analysis using 60051-1-Ig

  Various lysates were subjected to SDS PAGE followed by western blot with 60051-1-Ig (Annexin A2 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours. The membrane was stripped and reblotted with HRP-conjugated Alpha Tubulin Monoclonal antibody (HRP-66031) as loading control.

•

  WB analysis of HEK-293 using 60051-1-Ig

  WB result of Annexin A2 antibody (60051-1-Ig, 1:20,000) with si-Control and si-Annexin A2 transfected HEK293 cells.

•

  IP experiment of HeLa using 60051-1-Ig

  IP result of anti-Annexin A2 (IP:60051-1-Ig, 4ug; Detection:60051-1-Ig 1:1500) with HeLa cells lysate 2400ug.

•

  IHC staining of human breast cancer using 60051-1-Ig

  Immunohistochemical analysis of paraffin-embedded human breast cancer tissue slide using 60051-1-Ig (Annexin A2 Antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human breast cancer using 60051-1-Ig

  Immunohistochemical analysis of paraffin-embedded human breast cancer tissue slide using 60051-1-Ig (Annexin A2 Antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human lung cancer using 60051-1-Ig

  Immunohistochemical analysis of paraffin-embedded human lung cancer tissue slide using 60051-1-Ig (Annexin A2 Antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human lung cancer using 60051-1-Ig

  Immunohistochemical analysis of paraffin-embedded human lung cancer tissue slide using 60051-1-Ig (Annexin A2 Antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human skin cancer using 60051-1-Ig

  Immunohistochemical analysis of paraffin-embedded human skin cancer tissue slide using 60051-1-Ig (Annexin A2 antibody) at dilution of 1:10000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human skin cancer using 60051-1-Ig

  Immunohistochemical analysis of paraffin-embedded human skin cancer tissue slide using 60051-1-Ig (Annexin A2 antibody) at dilution of 1:10000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human gliomas using 60051-1-Ig

  Immunohistochemical analysis of paraffin-embedded human gliomas slide using 60051-1-Ig (ANXA2 Antibody) at dilution of 1:50.

•

  IHC staining of human gliomas using 60051-1-Ig

  Immunohistochemical analysis of paraffin-embedded human gliomas slide using 60051-1-Ig (ANXA2 Antibody) at dilution of 1:50.

•

  IF Staining of T-47D using 60051-1-Ig

  Immunofluorescent analysis of (-20°C Ethanol) fixed T-47D cells using 60051-1-Ig (Annexin A2 antibody), at dilution of 1:500 and CoraLite®488-Conjugated Goat Anti-Mouse IgG(H+L).

•

  IF Staining of HeLa using 60051-1-Ig

  Immunofluorescent analysis of Hela cells, using ANXA2 antibody 66051-1-lg at 1:25 dilution and Rhodamine-labeled goat anti-mouse IgG (red).

•

  IF Staining of MCF-7 using 60051-1-Ig

  Immunofluorescent analysis of MCF-7 cells, using ANXA2 antibody 60051-1-Ig at 1:25 dilution and Rhodamine-labeled goat anti-mouse IgG (red).

•

  IF Staining of HeLa using 60051-1-Ig

  Immunofluorescent analysis of (-20°C Ethanol) fixed HeLa cells using 60051-1-Ig (Annexin A2 antibody), at dilution of 1:500 and CoraLite®488-Conjugated Goat Anti-Mouse IgG(H+L).

•

  IF Staining of MCF-7 using 60051-1-Ig

  Immunofluorescent analysis of (-20°C Methanol) fixed MCF-7 cells using Annexin A2 antibody (60051-1-Ig, Clone: 3H1B11 ) at dilution of 1:800 and CoraLite®488-Conjugated Goat Anti-Mouse IgG(H+L) (SA00013-1).

---

Tested Applications

• Positive WB detected in: K-562 cells, HEK-293 cells, A431 cells, A549 cells, HeLa cells, HepG2 cells, HSC-T6 cells, NIH/3T3 cells, 4T1 cells
• Positive IP detected in: HeLa cells
• Positive IHC detected in: human breast cancer tissue, human lung cancer tissue, human skin cancer tissue, human gliomas tissue; Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
• Positive IF/ICC detected in: T-47D cells, HeLa cells, MCF-7 cells

Recommended dilution

• Western Blot (WB): WB : 1:5000-1:20000
• Immunoprecipitation (IP): IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
• Immunohistochemistry (IHC): IHC : 1:50-1:500
• Immunofluorescence (IF)/ICC: IF/ICC : 1:250-1:1000

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Published Applications

• KD/KO: See 1 publications below
• WB: See 5 publications below
• IF: See 2 publications below
• IP: See 3 publications below
• CoIP: See 1 publications below

Product Information

60051-1-Ig targets Annexin A2 in WB, IHC, IF/ICC, IP, CoIP, ELISA applications and shows reactivity with human, mouse, rat samples.

• Tested Reactivity: human, mouse, rat
• Cited Reactivity: human, mouse
• Host / Isotype: Mouse / IgG2b
• Class: Monoclonal
• Type: Antibody
• Immunogen: Annexin A2 fusion protein Ag1777
• Full Name: annexin A2
• Calculated Molecular Weight: 339 aa, 39 kDa
• Observed Molecular Weight: 35-38 kDa
• GenBank Accession Number: BC016774
• Gene Symbol: Annexin A2
• Gene ID (NCBI): 302
• RRID: AB_2057309
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein A purification
• Storage Buffer: PBS with 0.1% sodium azide and 50% glycerol pH 7.3.
• Storage Conditions: Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage. 20ul sizes contain 0.1% BSA.

Background Information

Annexin A2 (ANXA2), also named Annexin-2 or Lipocortin II, is a Ca2+ binding protein that is up-regulated in virally transformed cell lines and human tumors. This calcium-regulated membrane-binding protein, whose affinity for calcium is greatly enhanced by anionic phospholipids, may cross-link plasma membrane phospholipids with actin and the cytoskeleton and be involved with exocytosis. Heat-stress response may also involve Annexin-2.

Publications

Species	Application	Title
mouse	WB,CoIP	Cell; Streptococcus anginosus promotes gastric inflammation, atrophy, and tumorigenesis in mice; Authors - Kaili Fu
human	IP	EBioMedicine; Compounds targeting YadC of uropathogenic Escherichia coli and its host receptor annexin A2 decrease bacterial colonization in bladder.; Authors - Xiao Li
		Infect Immun; The Tick Protein Sialostatin L2 Binds to Annexin A2 and Inhibits NLRC4-Mediated Inflammasome Activation.; Authors - Xiaowei Wang
mouse	WB	Cell Mol Life Sci; Upregulation of HDAC9 in hippocampal neurons mediates depression-like behaviours by inhibiting ANXA2 degradation; Authors - Yunjian Dai
human,mouse	WB,IP,IF	iScience; Opportunistic pathogen Porphyromonas gingivalis targets the LC3B-ceramide complex and mediates lethal mitophagy resistance in oral tumors; Authors - Megan Sheridan ; KD Validated
human	WB,IF	Cell Signal; The novel DNA methylation marker FIBIN suppresses non-small cell lung cancer metastasis by negatively regulating ANXA2; Authors - Mingyu Peng
