Dystrophin Monoclonal antibody

Dystrophin Monoclonal Antibody for WB, IF, FC, IHC, ELISA

Host / Isotype

Mouse / IgG2a

Reactivity

Human, mouse, rat

Applications

WB, IF, FC, IHC, ELISA

Conjugate

Unconjugated

CloneNo.

1G12E6

Cat no : 68120-1-Ig

Synonyms

BMD, CMD3B, DMD, DXS142, DXS164, DXS206, DXS230, DXS239, DXS268, DXS269, DXS270, DXS272, dystrophin

---

Validation Data Gallery

•

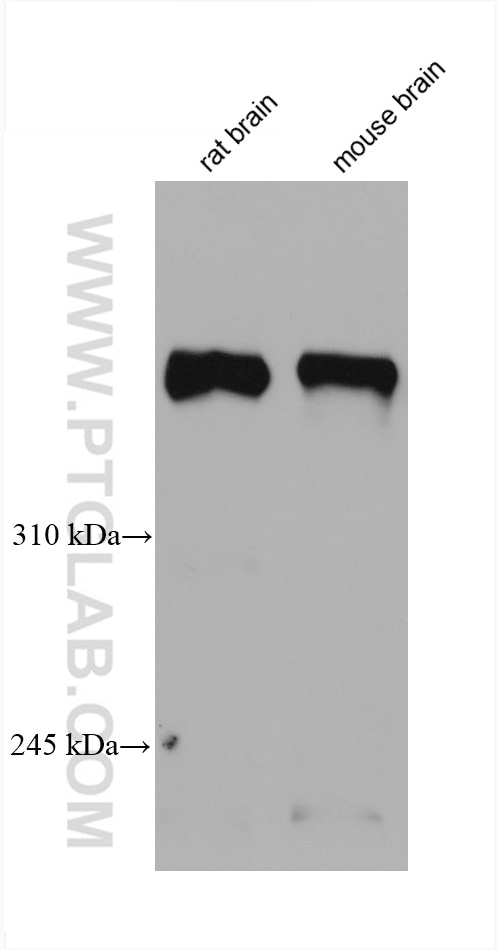

  WB analysis using 68120-1-Ig

  Various lysates were subjected to SDS PAGE followed by western blot with 68120-1-Ig (Dystrophin antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours.

•

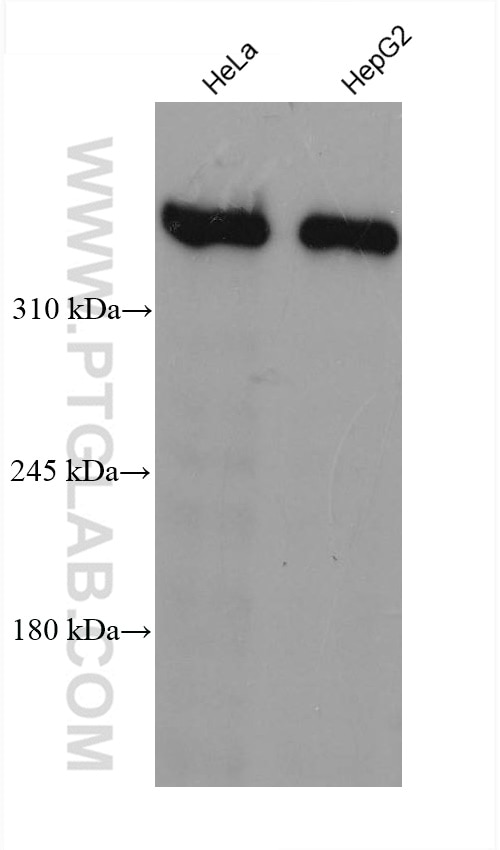

  WB analysis of HeLa using 68120-1-Ig

  HeLa cells were subjected to SDS PAGE followed by western blot with 68120-1-Ig (Dystrophin antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours.

•

  WB analysis of rat heart using 68120-1-Ig

  rat heart tissue were subjected to SDS PAGE followed by western blot with 68120-1-Ig (Dystrophin antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours.

•

  WB analysis using 68120-1-Ig

  Various lysates were subjected to SDS PAGE followed by western blot with 68120-1-Ig (DMD antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours.

•

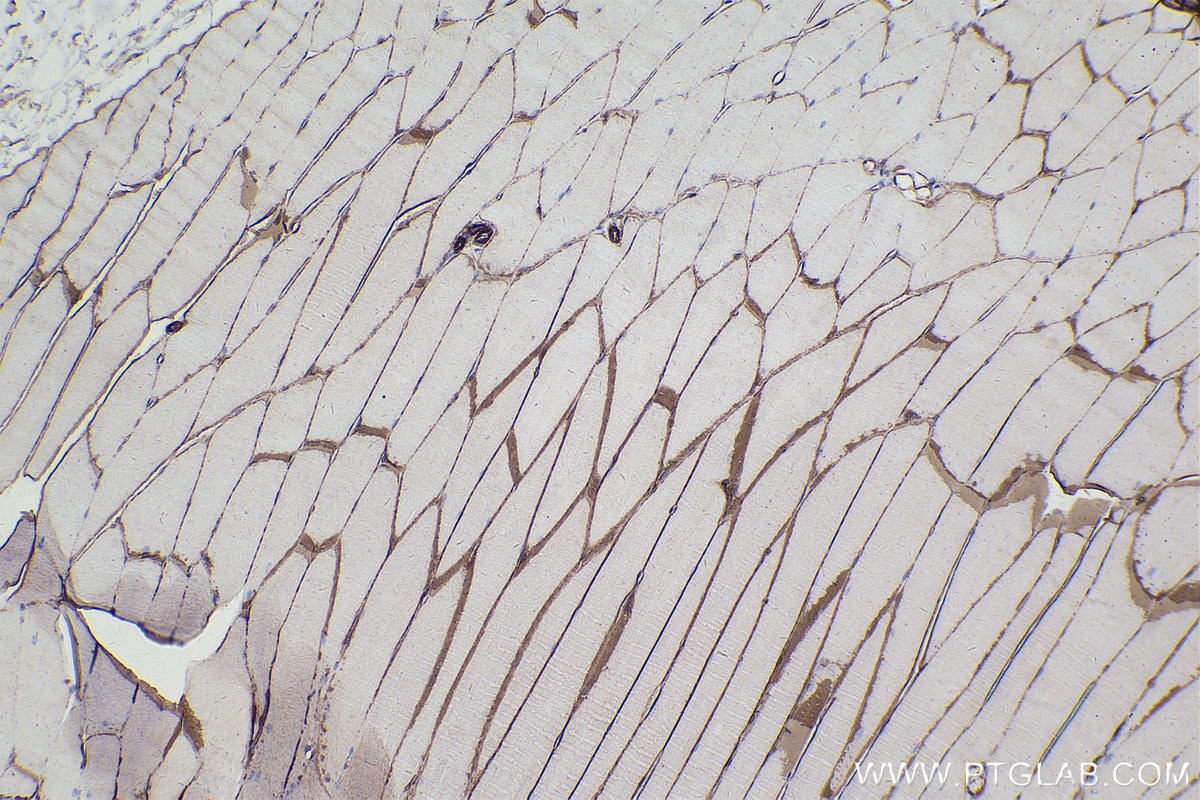

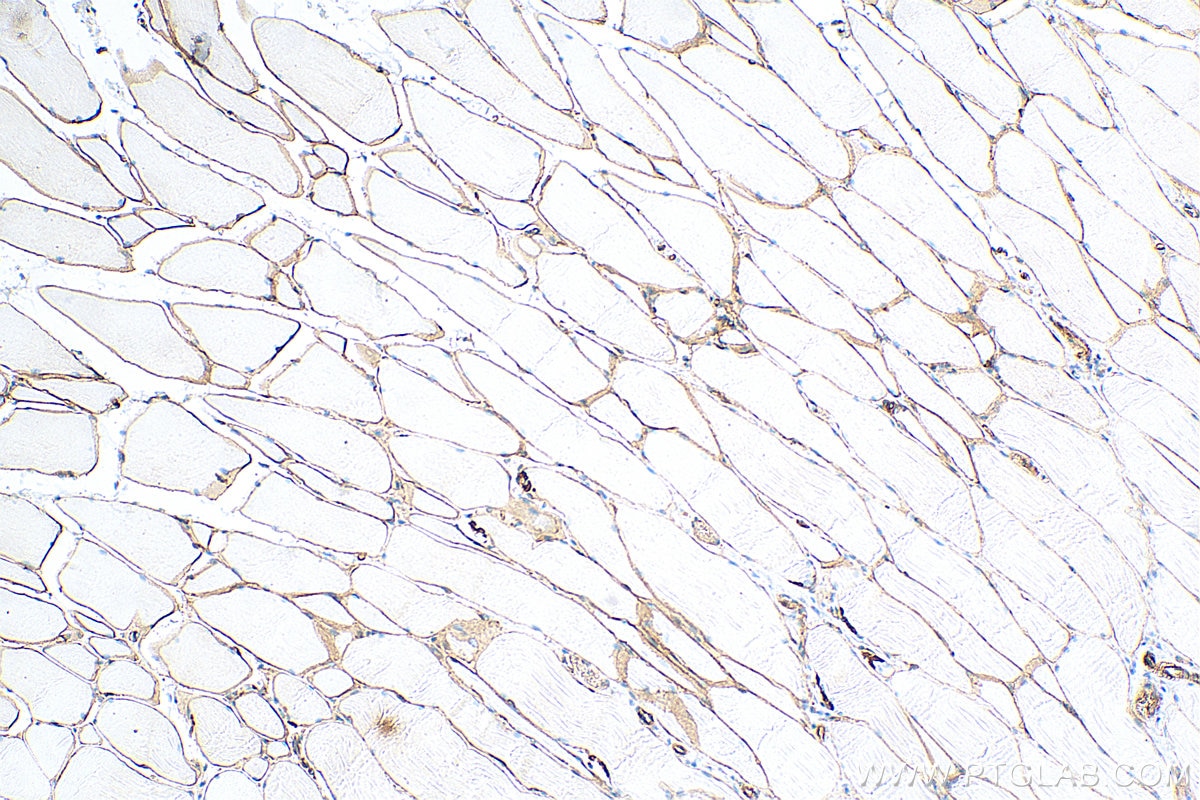

  IHC staining of rat skeletal muscle using 68120-1-Ig

  Immunohistochemical analysis of paraffin-embedded rat skeletal muscle tissue slide using 68120-1-Ig (Dystrophin antibody) at dilution of 1:2000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

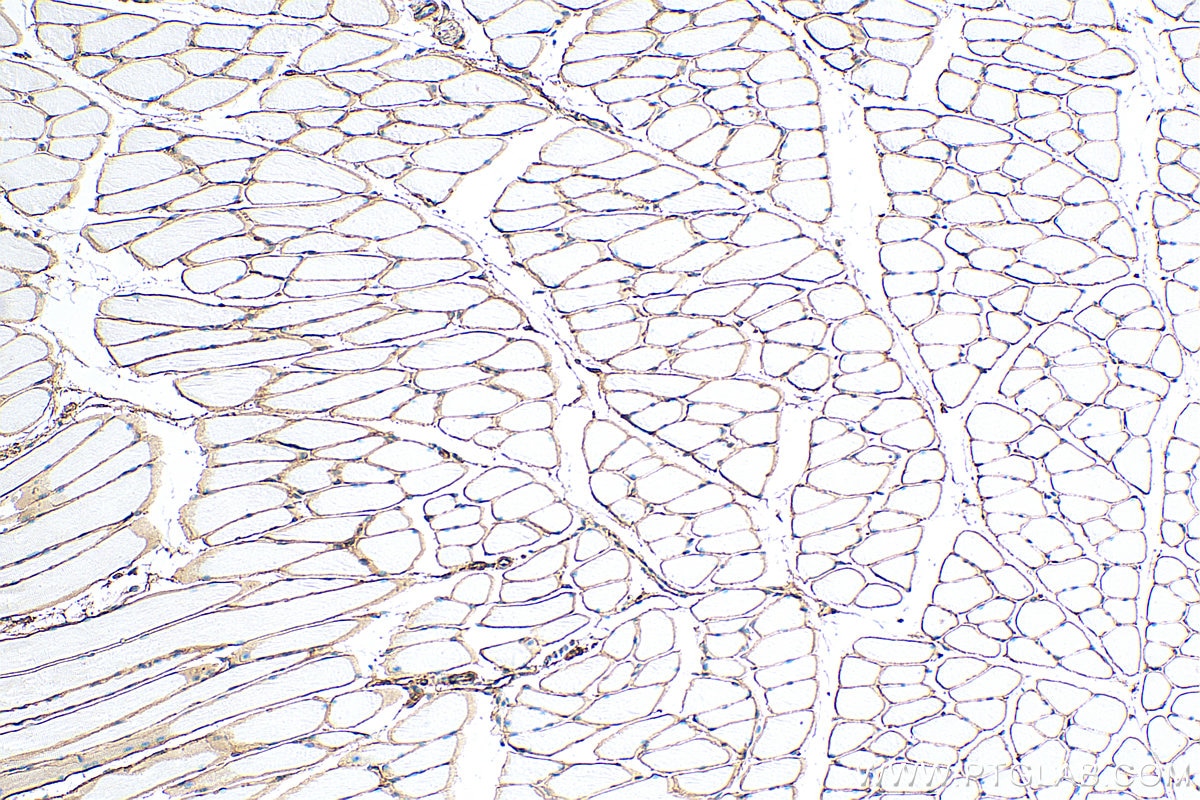

  IHC staining of mouse skeletal muscle using 68120-1-Ig

  Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue slide using 68120-1-Ig (Dystrophin antibody) at dilution of 1:2000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

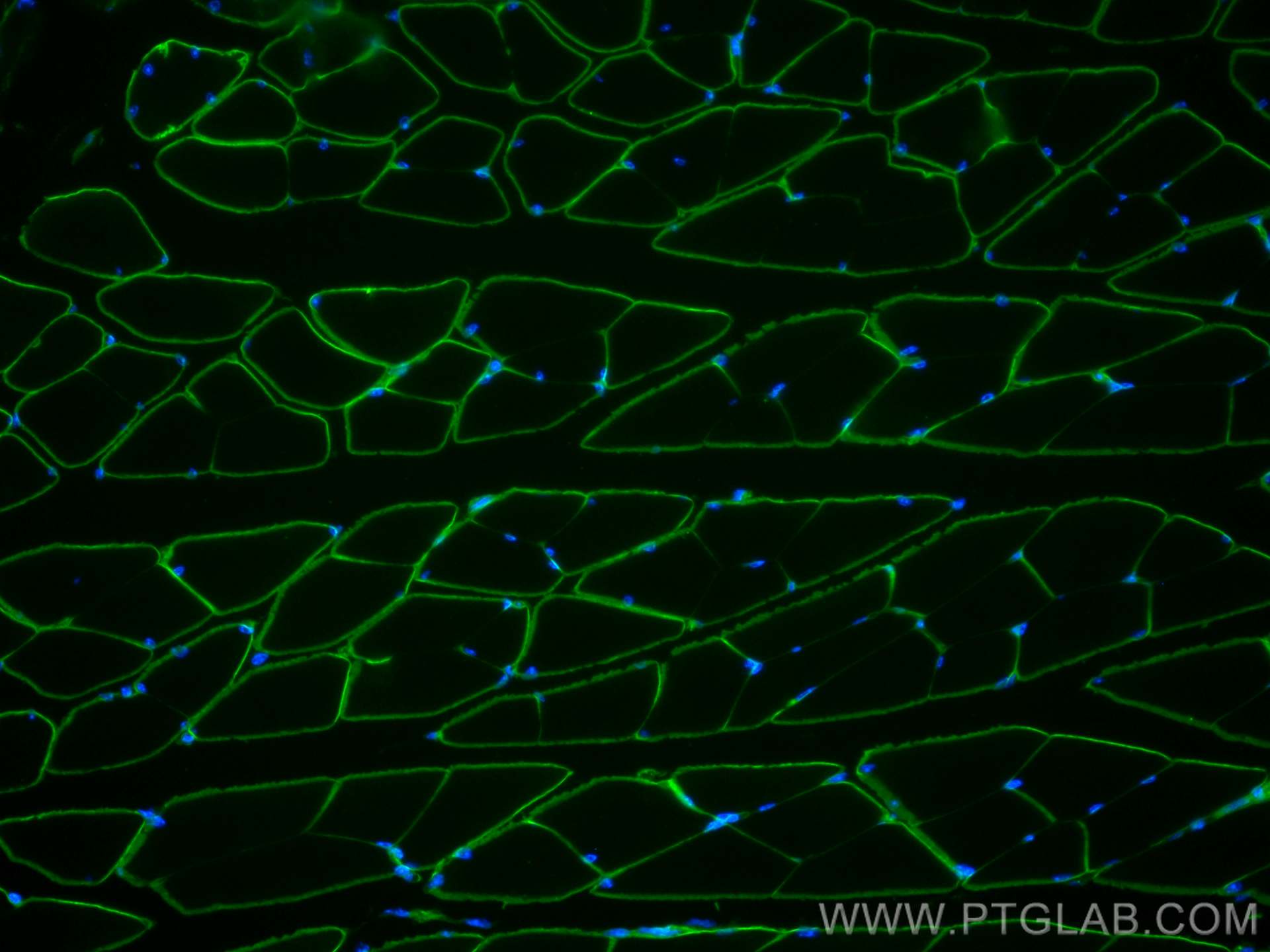

  IF Staining of mouse skeletal muscle using 68120-1-Ig

  Immunofluorescent analysis of (4% PFA) fixed mouse skeletal muscle tissue using Dystrophin antibody (68120-1-Ig, Clone: 1G12E6 ) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L).

•

  IF Staining of rat heart using 68120-1-Ig

  Immunofluorescent analysis of (4% PFA) fixed rat heart tissue using Dystrophin antibody (68120-1-Ig, Clone: 1G12E6 ) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L).

•

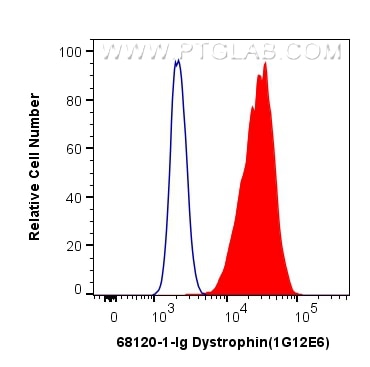

  FC experiment of HepG2 using 68120-1-Ig

  1X10^6 HepG2 cells were intracellularly stained with 0.4 ug Anti-Human Dystrophin (68120-1-Ig, Clone:1G12E6) and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (red), or 0.4 ug Mouse IgG2a Isotype Control (C1.18.4) (65208-1-Ig, Clone: C1.18.4) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

---

Tested Applications

• Positive WB detected in: rat brain tissue, HeLa cells, rat heart tissue, HepG2 cells, mouse brain tissue
• Positive IHC detected in: rat skeletal muscle tissue, mouse skeletal muscle tissue; Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
• Positive IF detected in: mouse skeletal muscle tissue, rat heart tissue
• Positive FC detected in: HepG2 cells

Recommended dilution

• Western Blot (WB): WB : 1:5000-1:50000
• Immunohistochemistry (IHC): IHC : 1:1000-1:4000
• Immunofluorescence (IF): IF : 1:200-1:800
• Flow Cytometry (FC): FC : 0.40 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

68120-1-Ig targets Dystrophin in WB, IF, FC, IHC, ELISA applications and shows reactivity with Human, mouse, rat samples.

• Tested Reactivity: Human, mouse, rat
• Host / Isotype: Mouse / IgG2a
• Class: Monoclonal
• Type: Antibody
• Immunogen: Dystrophin fusion protein Ag4392
• Full Name: dystrophin
• Calculated Molecular Weight: 3685 aa, 427 kDa
• Observed Molecular Weight: 70 kDa, 430 kDa
• GenBank Accession Number: BC028720
• Gene Symbol: DMD
• Gene ID (NCBI): 1756
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein A purification
• Storage Buffer: PBS with 0.02% sodium azide and 50% glycerol pH 7.3.
• Storage Conditions: Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage. 20ul sizes contain 0.1% BSA.

Background Information

Dystrophin (DMD or BMD) is a large muscle protein whose mutations cause Duchenne muscular dystrophy (DMD) and Becker muscular dystrophy (BMD), the childhood neuromuscular disorders that result in progressive muscle weakness, respiratory difficulties and cardiovascular dysfunction. Dystrophin is a crucial component of the dystrophin-glycoprotein complex which is essential for muscle membrane integrity and stability. Dystrophin is located on the cytoplasmic face of the sarcolemma and connects the cytoskeletal network to the sarcolemma and extracellular matrix. Multiple isoforms of dystrophin exist due to the alternative splicing, with a wide range of MW (69-72, 110-143, 271, 426 kDa). Most tissues contain transcripts of several isoforms.
