SIRP Alpha/CD172a Uni-rAb^® Recombinant Antibody for FC

Cat No. CL647-98101

Clone No.240789E1

Host / Isotype

Rabbit / IgG

Reactivity

human

Applications

FC

Synonyms

SIRP Alpha, SIRPA, 240789E1, BIT, Brain Ig-like molecule with tyrosine-based activation motifs

•

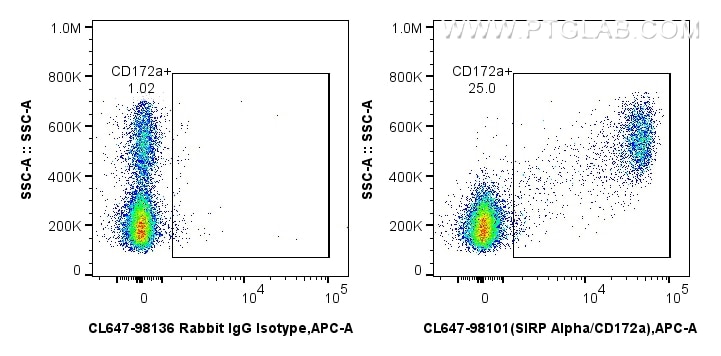

  FC experiment of human PBMCs using CL647-98101

  1x10^6 human PBMCs were surface stained with 5 ul CoraLite® Plus 647 Anti-Human SIRP Alpha/CD172a Rabbit RecAb (CL647-98101, Clone: 240789E1) or CoraLite® Plus 647 Rabbit IgG Isotype Control Recombinant Antibody (CL647-98136, Clone: 240953C9). Cells were incubated with FC Receptor Block prior to staining. Cells were not fixed.

  This validation data has been generated in-house and reviewed by Proteintech scientists. Find out more on our antibody validation policy
•

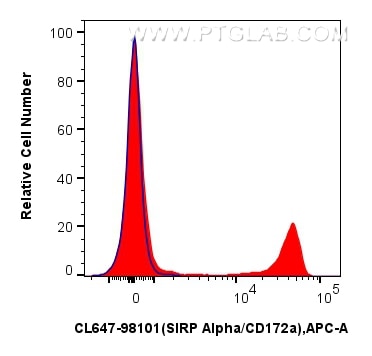

  FC experiment of human PBMCs using CL647-98101

  1x10^6 human PBMCs were surface stained with 5 ul CoraLite® Plus 647 Anti-Human SIRP Alpha/CD172a Rabbit RecAb (CL647-98101, Clone: 240789E1) (red) or CoraLite® Plus 647 Rabbit IgG Isotype Control Recombinant Antibody (CL647-98136, Clone: 240953C9) (blue). Cells were incubated with FC Receptor Block prior to staining. Cells were not fixed.

  This validation data has been generated in-house and reviewed by Proteintech scientists. Find out more on our antibody validation policy

---

Tested Applications

• Positive FC detected in: human PBMCs

Recommended dilution

• Flow Cytometry (FC): FC : 5 ul per 10^6 cells in a 100 µl suspension

This reagent has been pre-titrated and tested for flow cytometric analysis. The suggested use of this reagent is 5 ul per 10^6 cells in a 100 µl suspension or 5 ul per 100 µl of whole blood.

Sample-dependent, Check data in validation data gallery.

Product Information

CL647-98101 targets SIRP Alpha/CD172a in FC applications and shows reactivity with human samples.

• Tested Reactivity: human
• Host / Isotype: Rabbit / IgG
• Class: Recombinant
• Type: Antibody
• Immunogen:

  CatNo: Eg0625

  Product name: Recombinant Human SIRP alpha/CD172a protein (His Tag)(HPLC verified)

  Source: mammalian cells-derived, pHZ-KIsec-C-6*HIS

  Tag: C-6*HIS

  Domain: 31-370 aa of NM_080792

  Sequence: EEELQVIQPDKSVLVAAGETATLRCTATSLIPVGPIQWFRGAGPGRELIYNQKEGHFPRVTTVSDLTKRNNMDFSIRIGNITPADAGTYYCVKFRKGSPDDVEFKSGAGTELSVRAKPSAPVVSGPAARATPQHTVSFTCESHGFSPRDITLKWFKNGNELSDFQTNVDPVGESVSYSIHSTAKVVLTREDVHSQVICEVAHVTLQGDPLRGTANLSETIRVPPTLEVTQQPVRAENQVNVTCQVRKFYPQRLQLTWLENGNVSRTETASTVTENKDGTYNWMSWLLVNVSAHRDDVKLTCQVEHDGQPAVSKSHDLKVSAHPKEQGSNTAAENTGSNER

• Full Name: signal-regulatory protein alpha
• Calculated Molecular Weight: 55 kDa
• GenBank Accession Number: NM_080792
• Gene Symbol: SIRP Alpha
• Gene ID (NCBI): 140885
• Conjugate: CoraLite® Plus 647 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 654 nm / 674 nm
• Excitation Laser: Red Laser (633 nm)
• Form: Liquid
• Purification Method: Protein A purification
• UNIPROT ID: P78324
• Storage Buffer: PBS with 0.09% sodium azide and 0.5% BSA, pH 7.3.
• Storage Conditions: Store at 2-8°C. Avoid exposure to light. Stable for one year after shipment.

Background Information

SIRP Alpha, also known as CD172a, SHPS-1, and BIT, belongs to the SIRP family. SIRP Alpha is a transmembrane glycoprotein expressed explicitly on myeloid cells and provides a "do not eat me" signal after engaging with integrin-associated protein CD47 on tumor cells (PMID: 36419386). SIRP Alpha shows heterogeneity in molecular weight (~65-120 kDa) in various tissues due to differential glycosylation (PMID: 18051954).
