TIP47 Monoclonal antibody, PBS Only

TIP47 Monoclonal Antibody for WB, IF, IHC, Indirect ELISA

Host / Isotype

Mouse / IgG1

Reactivity

Human, mouse

Applications

WB, IF, IHC, Indirect ELISA

Conjugate

Unconjugated

CloneNo.

4C11B1

Cat no : 66523-1-PBS

Synonyms

47 kDa MPR binding protein, Cargo selection protein TIP47, M6PRBP1, Perilipin 3, Placental protein 17, PLIN3, PP17, TIP47

---

Validation Data Gallery

•

  WB analysis using 66523-1-Ig (same clone as 66523-1-PBS)

  Various lysates were subjected to SDS PAGE followed by western blot with 66523-1-Ig (TIP47 antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours. The membrane was stripped and reblotted with HRP-conjugated GAPDH Monoclonal antibody (HRP-60004) as loading control. This data was developed using the same antibody clone with 66523-1-PBS in a different storage buffer formulation.

•

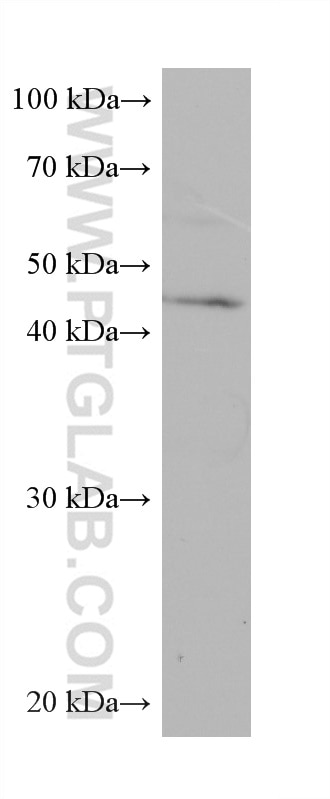

  WB analysis of U2OS using 66523-1-Ig (same clone as 66523-1-PBS)

  U2OS cells were subjected to SDS PAGE followed by western blot with 66523-1-Ig (TIP47 antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 66523-1-PBS in a different storage buffer formulation.

•

  IHC staining of mouse liver using 66523-1-Ig (same clone as 66523-1-PBS)

  Immunohistochemical analysis of paraffin-embedded mouse liver tissue slide using 66523-1-Ig (TIP47 antibody) at dilution of 1:300 (under 10x lens. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 66523-1-PBS in a different storage buffer formulation.

•

  IHC staining of mouse liver using 66523-1-Ig (same clone as 66523-1-PBS)

  Immunohistochemical analysis of paraffin-embedded mouse liver tissue slide using 66523-1-Ig (TIP47 antibody) at dilution of 1:300 (under 40x lens. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 66523-1-PBS in a different storage buffer formulation.

•

  IF Staining of HeLa using 66523-1-Ig (same clone as 66523-1-PBS)

  Immunofluorescent analysis of (-20°C Ethanol) fixed oleic acid treated HeLa cells using TIP47 antibody (66523-1-Ig, Clone: 4C11B1 ) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L). The F-actin was stained with CL594-Phalloidin (red). This data was developed using the same antibody clone with 66523-1-PBS in a different storage buffer formulation.

•

  IF Staining of HeLa using 66523-1-Ig (same clone as 66523-1-PBS)

  Immunofluorescent analysis of (-20°C Ethanol) fixed oleic acid treated HeLa cells using TIP47 antibody (66523-1-Ig, Clone: 4C11B1 ) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L). This data was developed using the same antibody clone with 66523-1-PBS in a different storage buffer formulation.

---

Recommended dilution

Application	Dilution
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Product Information

66523-1-PBS targets TIP47 in WB, IF, IHC, Indirect ELISA applications and shows reactivity with Human, mouse samples.

• Tested Reactivity: Human, mouse
• Host / Isotype: Mouse / IgG1
• Class: Monoclonal
• Type: Antibody
• Immunogen: TIP47 fusion protein Ag1028
• Full Name: mannose-6-phosphate receptor binding protein 1
• Calculated Molecular Weight: 47 kDa
• Observed Molecular Weight: 47 kDa
• GenBank Accession Number: BC007566
• Gene Symbol: M6PRBP1
• Gene ID (NCBI): 10226
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein G purification
• Storage Buffer: PBS Only
• Storage Conditions: Store at -80°C.

Background Information

Mannose 6-phosphate receptors (M6PRs) transport newly synthesized lysosomal hydrolases from the Golgi to prelysosomes and then return to the Golgi for another round of transport. M6PRBP1 (mannose-6-phosphate receptor binding protein 1), also known as TIP47, PLIN3 or PP17, interacts with the cytoplasmic domains of both cation-independent and cation-dependent M6PRs, and is required for endosome-to-Golgi transport. In addition to M6PR recycling, M6PRBP1 plays a role in lipid droplet biogenesis, and is also implicated in rhodopsin photobleaching and viral infection. M6PRBP1 has been found to be expressed in a variety of human tissues (including colon, liver and lung parenchyme, mammary gland, and skin) and is overexpressed in certain cancer cell lines. It binds to lipid droplets and also occurs in cytosol and on endosomal membranes.
