Validation Data Gallery

•

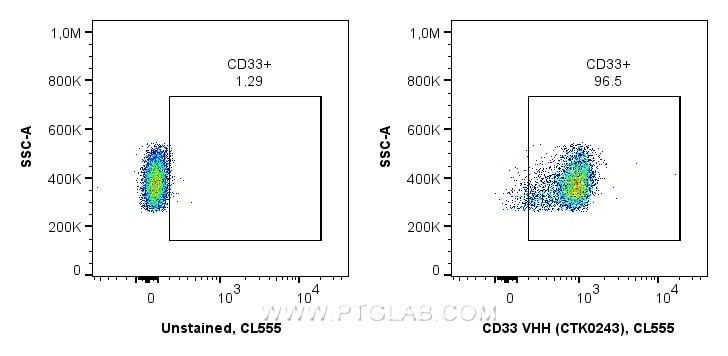

  Human PBMCs stained with anti-CD33 recombinant VHH  in Flow Cytometry
  1x10^6 human PBMCs were surface stained in 100 µL with 1 µg anti-CD33 recombinant VHH, CoraLite® Plus 555 (MG-1230CL555, Clone: CTK0243) or unstained. Fc-receptors were blocked. Cells were not fixed. Monocytes were gated.

•

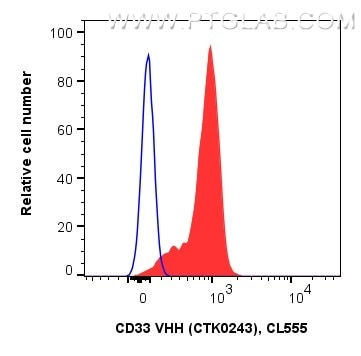

  Human PBMCs stained with anti-CD33 recombinant VHH  in Flow Cytometry
  1x10^6 human PBMCs were surface stained in 100 µL with 1 µg anti-CD33 recombinant VHH, CoraLite® Plus 555 (MG-1230CL555, Clone: CTK0243) (red) or unstained (blue). Fc-receptors were blocked. Cells were not fixed. Monocytes were gated.

•

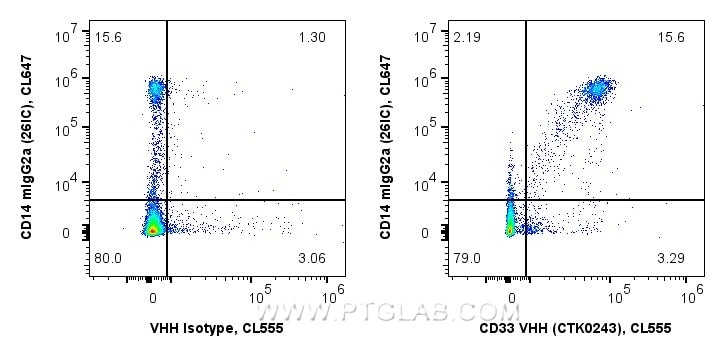

  Human PBMCs co-stained with anti-CD33 recombinant VHH and anti-CD14  26IC  in Flow Cytometry
  1x10^6 human PBMCs were surface co-stained in 100 µL with 1 µg anti-CD33 recombinant VHH, CoraLite® Plus 555 (MG-1230CL555, Clone: CTK0243), or 1 µg recombinant Alpaca VHH Isotype Control (Clone: CTK0201), and 5 µL CoraLite® Plus 647 Anti-Human CD14 (CL647-65616). Fc-receptors were blocked. Cells were not fixed.

•

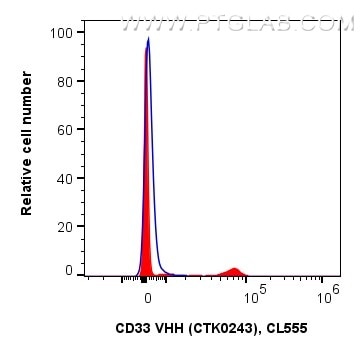

  Human PBMCs co-stained with anti-CD33 recombinant VHH and anti-CD14  26IC  in Flow Cytometry
  1x10^6 human PBMCs were surface co-stained in 100 µL with 1 µg anti-CD33 recombinant VHH, CoraLite® Plus 555 (MG-1230CL555, Clone: CTK0243) (red), or 1 µg recombinant Alpaca VHH Isotype Control (Clone: CTK0201, blue) and 5 µL Anti-Human CD1, CoraLite® Plus 647 (CL647-65616). Fc-receptors were blocked. Cells were not fixed.

The small size of VHHs (~15 kDa) enables access to epitopes that may be sterically inaccessible to full size IgGs. Their reduced steric hindrance also facilitates simultaneous staining of multiple targets, making them particularly useful for applications like Nano-Flow. MG-1230CL555 is a recombinant CoraLite ® Plus 555 conjugated anti CD33 Nanobody (VHH) that targets CD33 (human).

Cat No. MG-1230CL555

Host/Type

Alpaca VHH

Reactivity

Human

Applications

FC

Conjugate

CoraLite® Plus 555

Synonyms

Siglec-3 VHH, p67 VHH, gp67 VHH

---

Product Information

The small size of VHHs (~15 kDa) enables access to epitopes that may be sterically inaccessible to full size IgGs. Their reduced steric hindrance also facilitates simultaneous staining of multiple targets, making them particularly useful for applications like Nano-Flow. MG-1230CL555 is a recombinant CoraLite ® Plus 555 conjugated anti CD33 Nanobody (VHH) that targets CD33 (human).

• Applications: FC
• Reactivity: Human
• Conjugate: CoraLite® Plus 555
• Type: Nanobody
• Class: Recombinant
• Host: Alpaca
• Affinity: 270 nM
• Clone: CTK0243
• Immunogen: 18-259 aa
• Molecular Weight: 15.7 kDa
• Form: Liquid
• Excitation/Emission Maxima Wavelengths: 554 nm / 570 nm
• RRID: /
• Storage Buffer: 10 mM HEPES pH 7.0, 500 mM NaCl, 5 mM EDTA, 0.09% sodium azide
• Storage Condition: Store at -20°C
• Shipping: blue ice
• Sizes: 150 µl
• Amount per test (Flow Cytometry): 2 µl per test
• Total number of tests: 75 tests
• Background: CD33, also referred to as Siglec-3, is a 67-kDa glycosylated transmembrane protein of sialic acid-binding immunoglobulin-like lactic (siglec) family. CD33 is expressed on monocytes, myeloid progenitors, granulocytes, mast cells, some T cells. It may mediate cell-to-cell adhesion and act as a receptor that inhibits the proliferation of normal and leukemic myeloid cells.

---
