AK2 Monoclonal antibody

•

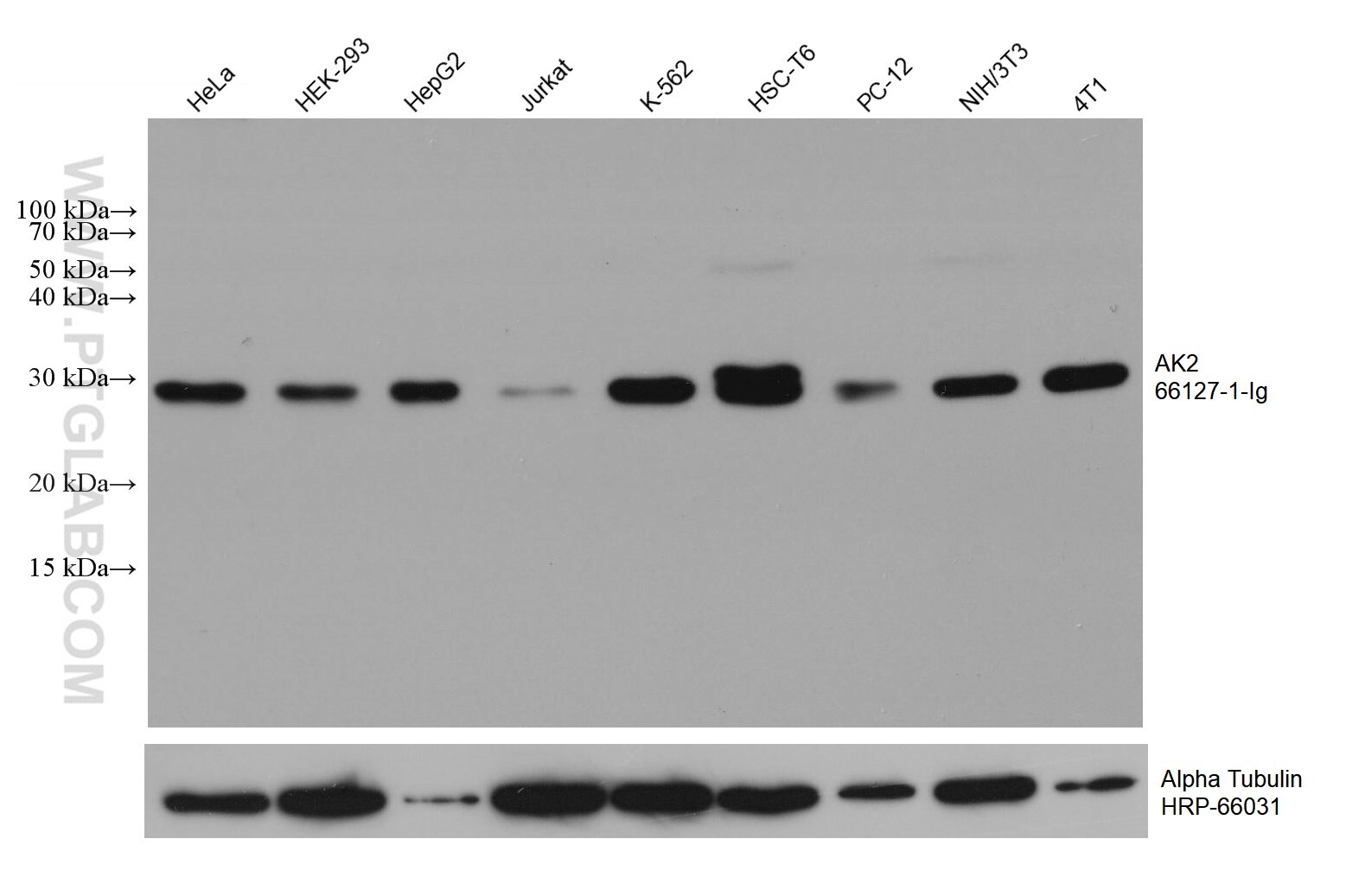

  WB analysis using 66127-1-Ig

  Various lysates were subjected to SDS PAGE followed by western blot with 66127-1-Ig (AK2 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours. The membrane was stripped and reblotted with HRP-conjugated Alpha Tubulin Monoclonal antibody (HRP-66031) as loading control.

•

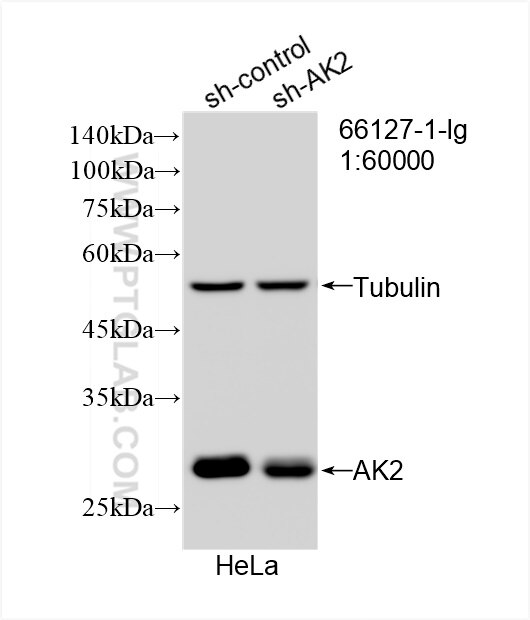

  WB analysis of HeLa using 66127-1-Ig

  WB result of AK2 antibody (66127-1-Ig; 1:60000; incubated at room temperature for 1.5 hours) with sh-Control and sh-AK2 transfected HeLa cells.

•

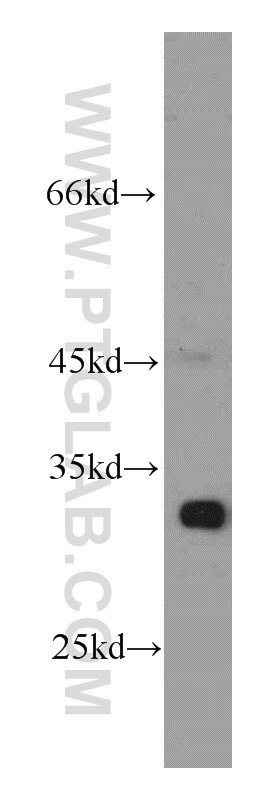

  WB analysis of HEK-293 using 66127-1-Ig

  HEK-293 cells were subjected to SDS PAGE followed by western blot with 66127-1-Ig (AK2 antibody) at dilution of 1:4000 incubated at room temperature for 1.5 hours.

•

  IHC staining of human liver using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human liver slide using 66127-1-Ig (AK2 Antibody) at dilution of 1:50.

•

  IHC staining of human kidney using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human kidney tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:8000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human kidney using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human kidney tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:8000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human liver cancer using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human liver cancer tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:8000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human liver cancer using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human liver cancer tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:8000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of mouse liver using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded mouse liver tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of mouse liver using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded mouse liver tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of rat liver using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded rat liver tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of rat liver using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded rat liver tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human lung cancer using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human lung cancer tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human lung cancer using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human lung cancer tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of mouse heart using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded mouse heart tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of mouse heart using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded mouse heart tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of rat heart using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded rat heart tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of rat heart using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded rat heart tissue slide using 66127-1-Ig (AK2 antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human heart using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human heart slide using 66127-1-Ig (AK2 Antibody) at dilution of 1:50.

•

  IHC staining of human heart using 66127-1-Ig

  Immunohistochemical analysis of paraffin-embedded human heart slide using 66127-1-Ig (AK2 Antibody) at dilution of 1:50.

•

  IF Staining of HeLa using 66127-1-Ig

  Immunofluorescent analysis of (4% PFA) fixed HeLa cells using AK2 antibody (66127-1-Ig, Clone: 3H2C10 ) at dilution of 1:5024 and Multi-rAb CoraLite® Plus 594-Goat Anti-Mouse Recombinant Secondary Antibody (H+L) (Cat.NO. RGAM004 ).

•

  IF Staining of HepG2 using 66127-1-Ig

  Immunofluorescent analysis of HepG2 cells using 66127-1-Ig (AK2 antibody) at dilution of 1:50 and Rhodamine-Goat anti-Mouse IgG.

•

  IF Staining of HeLa using 66127-1-Ig

  Immunofluorescent analysis of HeLa cells using 66127-1-Ig (AK2 antibody) at dilution of 1:25 and Alexa Fluor 488-conjugated AffiniPure Goat Anti-Mouse IgG (H+L).

•

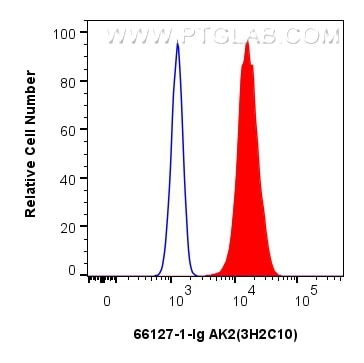

  FC experiment of HepG2 using 66127-1-Ig

  1x10^6 HepG2 cells were intracellularly stained with 0.25 ug AK2 Monoclonal antibody (66127-1-Ig, Clone:3H2C10) and CoraLite®488-Conjugated Goat Anti-Mouse IgG(H+L) (SA00013-1)(red), or 0.25 ug Mouse IgG2a isotype control Mouse McAb (66360-2-Ig, Clone: 11A1B2) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

• Featured Product
• KD/KO Validated

AK2 Monoclonal Antibody for WB, IHC, IF/ICC, ELISA

Cat No. 66127-1-Ig

Clone No.3H2C10

Host / Isotype

Mouse / IgG2a

Reactivity

human, mouse, rat

Applications

WB, IHC, IF/ICC, ELISA

Synonyms

3H2C10, adenylate kinase 2, Adenylate kinase 2, mitochondrial, N-terminally processed, Adenylate monophosphate kinase, ADK2

---

Tested Applications

• Positive WB detected in: HeLa cells, HEK-293 cells, HepG2 cells, Jurkat cells, K-562 cells, HSC-T6 cells, PC-12 cells, NIH/3T3 cells, 4T1 cells
• Positive IHC detected in: human lung cancer tissue, human heart tissue, human kidney tissue, human liver tissue, human liver cancer tissue, mouse heart tissue, rat heart tissue; Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
• Positive IF/ICC detected in: HepG2 cells, HeLa cells
• Positive FC (Intra) detected in: HepG2 cells

Recommended dilution

• Western Blot (WB): WB : 1:5000-1:50000
• Immunohistochemistry (IHC): IHC : 1:2000-1:8000
• Immunofluorescence (IF)/ICC: IF/ICC : 1:20-1:200
• Flow Cytometry (FC) (INTRA): FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

66127-1-Ig targets AK2 in WB, IHC, IF/ICC, ELISA applications and shows reactivity with human, mouse, rat samples.

• Tested Reactivity: human, mouse, rat
• Host / Isotype: Mouse / IgG2a
• Class: Monoclonal
• Type: Antibody
• Immunogen: AK2 fusion protein Ag17911
• Full Name: adenylate kinase 2
• Calculated Molecular Weight: 26 kDa
• Observed Molecular Weight: 29 kDa
• GenBank Accession Number: BC009405
• Gene Symbol: AK2
• Gene ID (NCBI): 204
• RRID: AB_2881526
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein A purification
• UNIPROT ID: P54819
• Storage Buffer: PBS with 0.02% sodium azide and 50% glycerol, pH 7.3.
• Storage Conditions: Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage. 20ul sizes contain 0.1% BSA.

Background Information

AK2(Adenylate kinase 2, mitochondrial ) is also named as ADK2 and belongs to the adenylate kinase family. It plays a unique role in energy metabolism and energy transfer by regulating the ATP/ADP rate between the cytoplasma matrix and the mitochondria and it is increased expression during adipocyte and B cell differentiation(PMID:23020757). AK2 catalyzes the reversible transfer of a phosphoryl group from ATP to AMP(PMID:19043417). Defects in AK2 are the cause of reticular dysgenesis (RDYS)(PMID:19043416). It has 6 isoforms produced by alternative splicing.
