CoraLite®594-conjugated ATPB Monoclonal antibody

ATPB Monoclonal Antibody for FC (Intra), IF

Host / Isotype

Mouse / IgG2b

Reactivity

Human, Mouse , Rat

Applications

IF, FC (Intra)

Conjugate

CoraLite®594 Fluorescent Dye

CloneNo.

1A11B9

Cat no : CL594-66600

Synonyms

ATP5B, ATPB, ATPMB, ATPSB, Cell and organelle markers, Mitochondria Marker, Mitochondrial Marker, Mitochondrion Marker

---

Validation Data Gallery

•

  IF Staining of HepG2 using CL594-66600

  Immunofluorescent analysis of (4% PFA) fixed HepG2 cells using CoraLite®594 ATPB antibody (CL594-66600, Clone: 1A11B9 ) at dilution of 1:200.

•

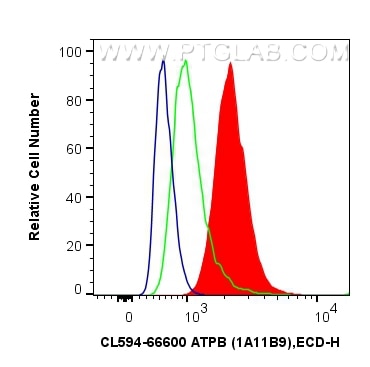

  FC experiment of HeLa using CL594-66600

  1X10^6 HeLa cells were intracellularly stained with 0.4 ug CoraLite®594 Anti-Human ATPB (CL594-66600, Clone:1A11B9) (red), or 0.4 ug CoraLite®594 Mouse IgG2b Isotype Control (MPC-11) (CL594-65128, Clone: MPC-11) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

•

  FC experiment of HepG2 using CL594-66600

  1X10^6 HepG2 cells were intracellularly stained with 0.8 ug CoraLite®594 Anti-Human ATPB (CL594-66600, Clone:1A11B9) (red), or 0.8 ug CoraLite®594 Mouse IgG2b Isotype Control (MPC-11) (CL594-65128, Clone: MPC-11) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

---

Tested Applications

• Positive IF detected in: HepG2 cells
• Positive FC detected in: HeLa cells, HepG2 cells

Recommended dilution

• Immunofluorescence (IF): IF : 1:50-1:500
• Flow Cytometry (FC): FC : 0.40 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

CL594-66600 targets ATPB in IF, FC (Intra) applications and shows reactivity with Human, Mouse , Rat samples.

• Tested Reactivity: Human, Mouse , Rat
• Host / Isotype: Mouse / IgG2b
• Class: Monoclonal
• Type: Antibody
• Immunogen: ATPB fusion protein Ag11177
• Full Name: ATP synthase, H+ transporting, mitochondrial F1 complex, beta polypeptide
• Calculated Molecular Weight: 529 aa, 57 kDa
• Observed Molecular Weight: 45-57 kDa
• GenBank Accession Number: BC016512
• Gene Symbol: ATP5B
• Gene ID (NCBI): 506
• RRID: AB_2920015
• Conjugate: CoraLite®594 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 588 nm / 604 nm
• Form: Liquid
• Purification Method: Protein A purification
• Storage Buffer: PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
• Storage Conditions: Store at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage. 20ul sizes contain 0.1% BSA.

Background Information

ATP5B, also named as ATPMB and ATPSB, belongs to the ATPase alpha/beta chains family. It is a high affinity HDL receptor for apolipoprotein A1. ATP5B is a subunit of mitochondrial ATP synthase (F1F0 ATP synthase or Complex V ). ATP5B has a calculated molecular mass of 57 kDa and ~5 kDa transit peptide can be removed in the mature form.
