CoraLite®594-conjugated CD45 Monoclonal antibody

CD45 Monoclonal Antibody for IF

Host / Isotype

Mouse / IgG2a

Reactivity

human, pig, mouse

Applications

IF

Conjugate

CoraLite®594 Fluorescent Dye

CloneNo.

4E9B2

Cat no : CL594-60287

Synonyms

B220, CD45, CD45R, GP180, L CA, LCA, Leukocyte common antigen, LY5, PTPRC, RPTPC, T200



Tested Applications

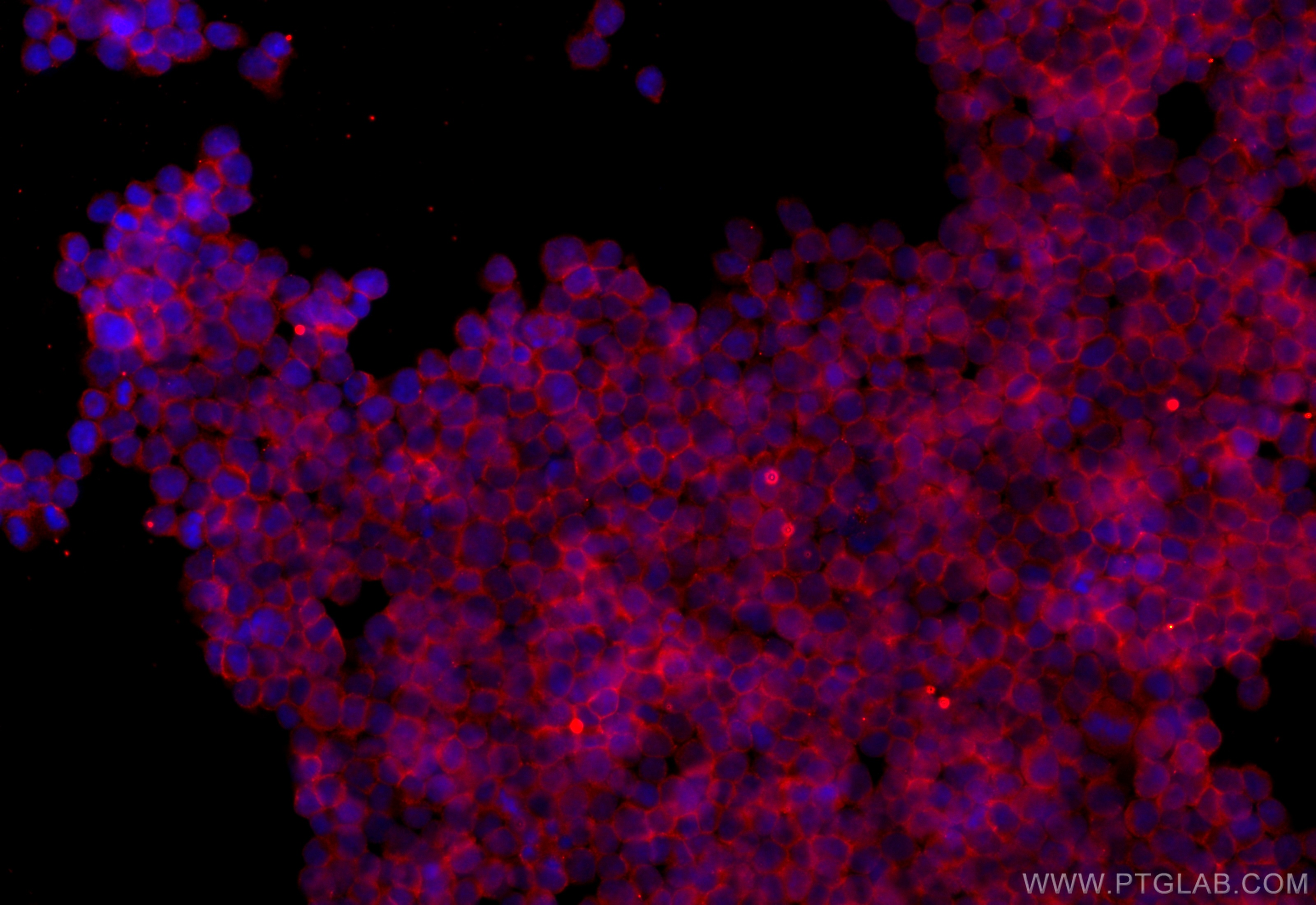

Positive IF detected inhuman tonsillitis tissue, mouse spleen tissue

Recommended dilution

ApplicationDilution
Immunofluorescence (IF)IF : 1:50-1:500
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Product Information

CL594-60287 targets CD45 in IF applications and shows reactivity with human, pig, mouse samples.

Tested Reactivity human, pig, mouse
Host / Isotype Mouse / IgG2a
Class Monoclonal
Type Antibody
Immunogen CD45 fusion protein Ag13712
Full Name protein tyrosine phosphatase, receptor type, C
Calculated Molecular Weight 1304 aa, 147 kDa
Observed Molecular Weight 220 kDa
GenBank Accession NumberBC014239
Gene Symbol PTPRC
Gene ID (NCBI) 5788
RRIDAB_2919913
Conjugate CoraLite®594 Fluorescent Dye
Excitation/Emission Maxima Wavelengths588 nm / 604 nm
Form Liquid
Purification MethodProtein A purification
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Aliquoting is unnecessary for -20oC storage. 20ul sizes contain 0.1% BSA.

Background Information

Protein tyrosine phosphatase receptor type C (PTPRC) is also known as CD45 antigen, which was originally called leukocyte common antigen (LCA). CD45 is an enzyme required for T-cell activation through the antigen receptor consisting of two intracellular phosphatase domains, a transmembrane domain and an extracellular domain. Upon T-cell activation, CD45 recruits and dephosphorylates SKAP1 via an interaction through the first PTPase domain, which is the only domain to possess intrinsic kinase activity. However, both domains are required for appropriate phosphatase and T-cell antigen receptor activity (PMID: 8076596).

What is the molecular weight of CD45?

The molecular weight of CD45 is a 180-240 kDa.

What are the isoforms of CD45?

Six different human isoforms of CD45 have been isolated, containing all three exons (ABC isoform), two of the three exons (AB and BC isoforms), only one exon (A isoform or B isoform), or no exons (O isoform). All of the isoforms have the same eight amino acids at their amino-terminus (PMID: 12412720).

What is the tissue specificity of CD45?

CD45 is a tyrosine phosphatase expressed on the plasma membrane of all hematopoietic cells, except erythrocytes and platelets (PMID: 7803253).

What are the post-translational modifications of CD45?

CD45 can be heavily N- and O-glycosylated (PMID: 1702721).

What is CD45's involvement in disease?

Defects in CD45 are a cause of severe combined immunodeficiency autosomal recessive T-cell-negative/B-cell-positive/NK-cell-positive (T(-)B(+)NK(+) SCID); a severe form of SCID. It is classed by the impairment of both humoral and cell-mediated immunity, leukopenia, and the low or absent levels of antibodies (PMID: 10700239). Also, genetic variants of CD45 have a role in susceptibility to multiple sclerosis (PMID: 12864992).


Protocols

Product Specific Protocols
IF protocol for CL594 CD45 antibody CL594-60287Download protocol
