ICAM-1 Monoclonal antibody

ICAM-1 Monoclonal Antibody for FC, IF, IHC, WB, ELISA

Host / Isotype

Mouse / IgG2b

Reactivity

human

Applications

WB, IHC, IF, FC, ELISA

Conjugate

Unconjugated

CloneNo.

2F9A8

Cat no : 60299-1-Ig

Synonyms

BB2, CD54, ICAM 1, ICAM1, ICAM-1, P3.58



Tested Applications

Positive WB detected inL02 cells, Daudi cells, HeLa cells, Raji cells, Ramos cells, HepG2 cells

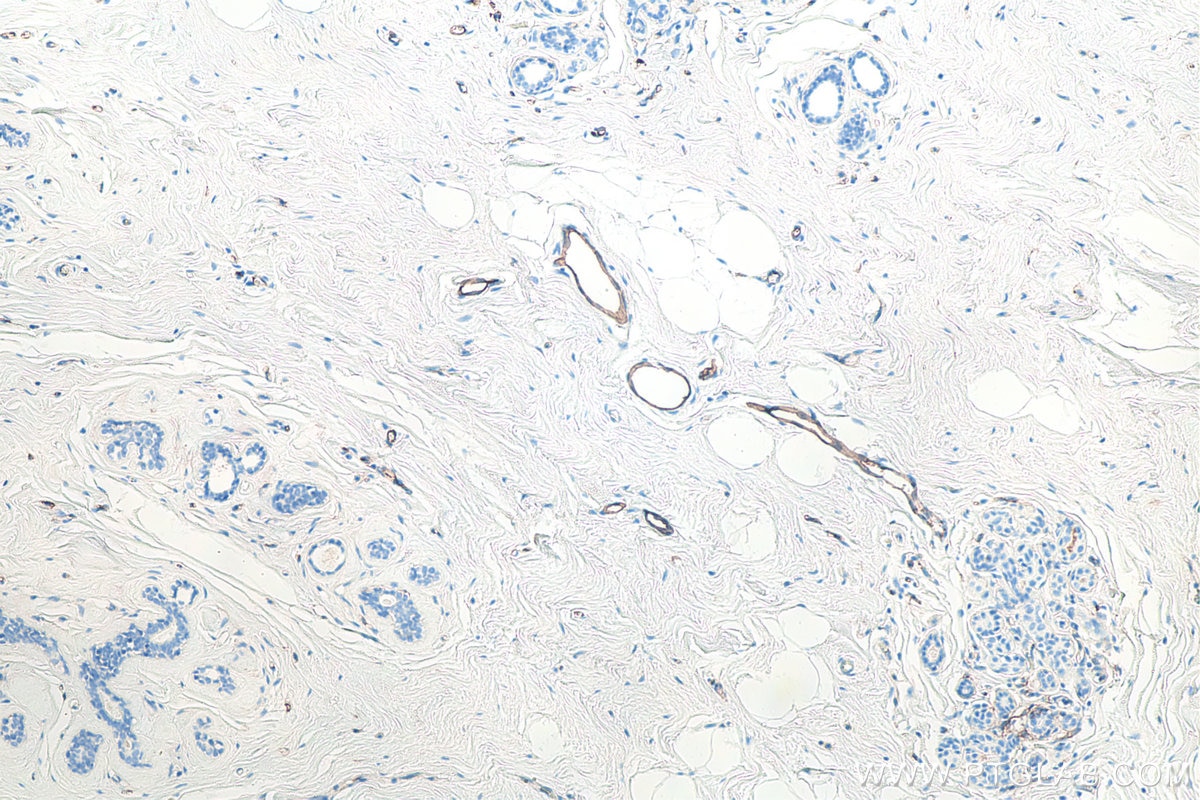

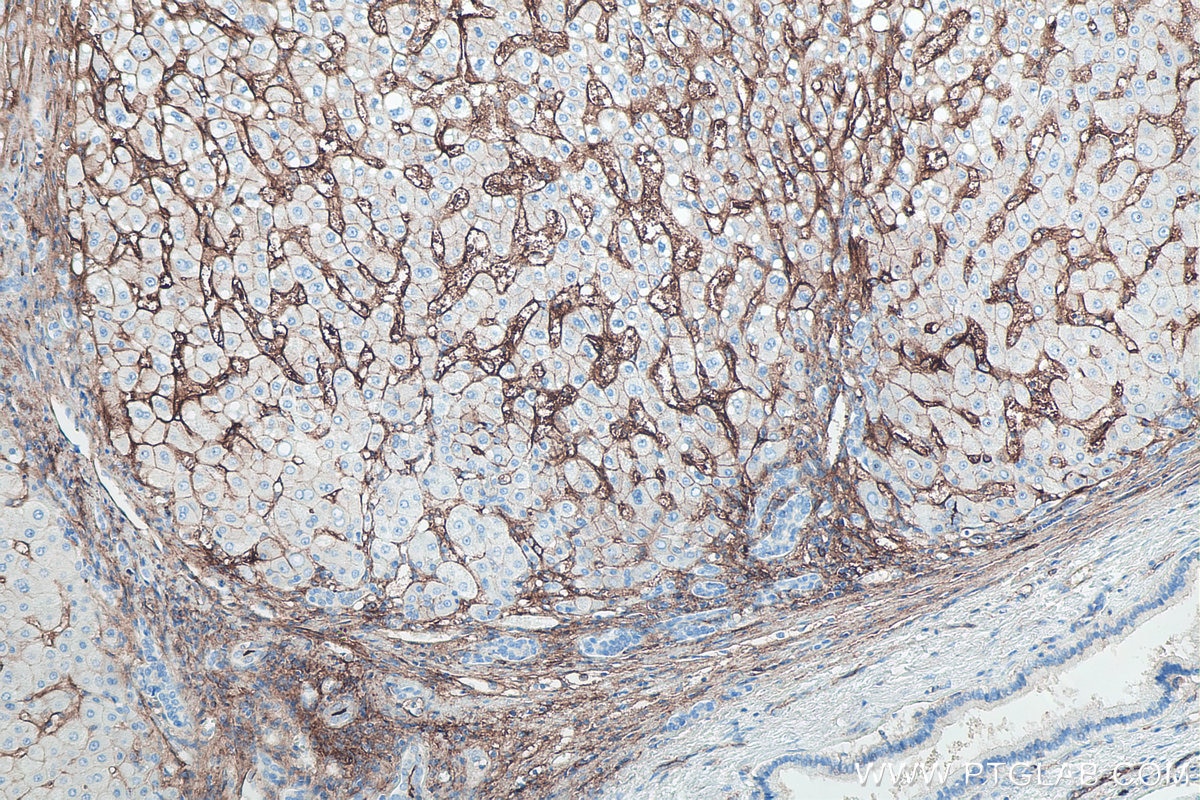

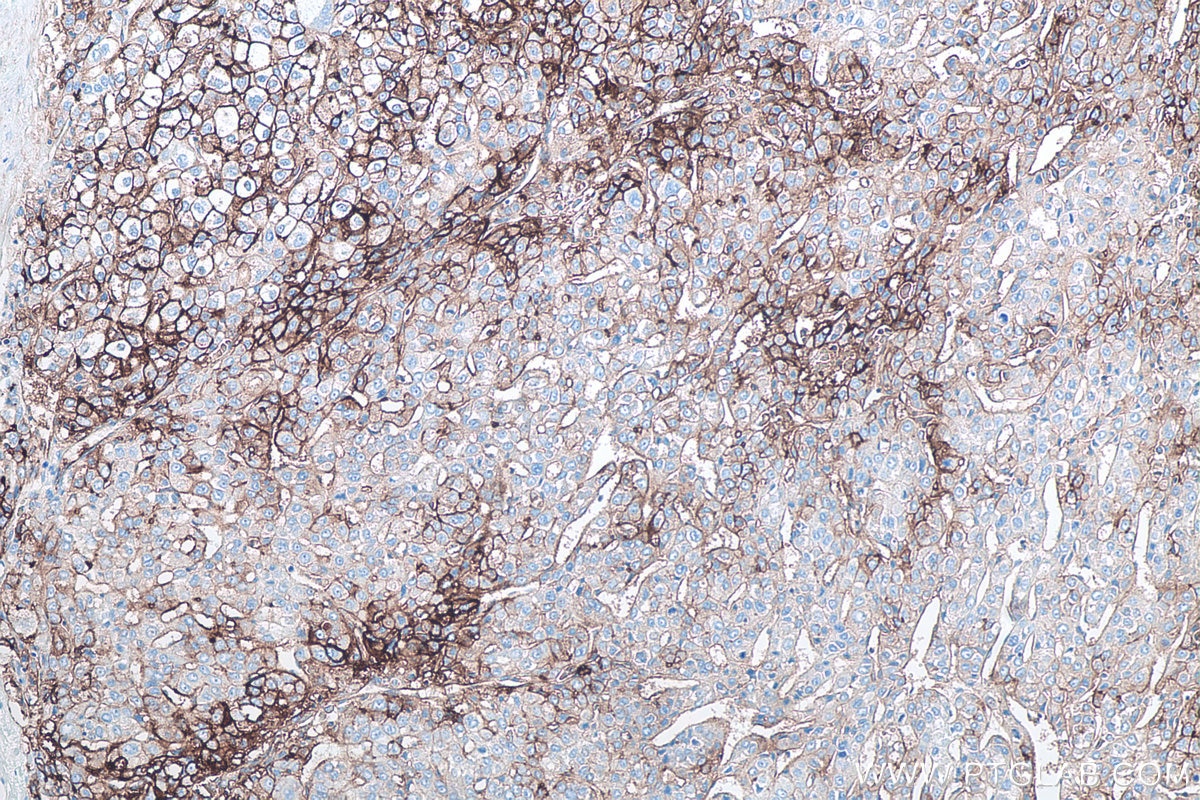

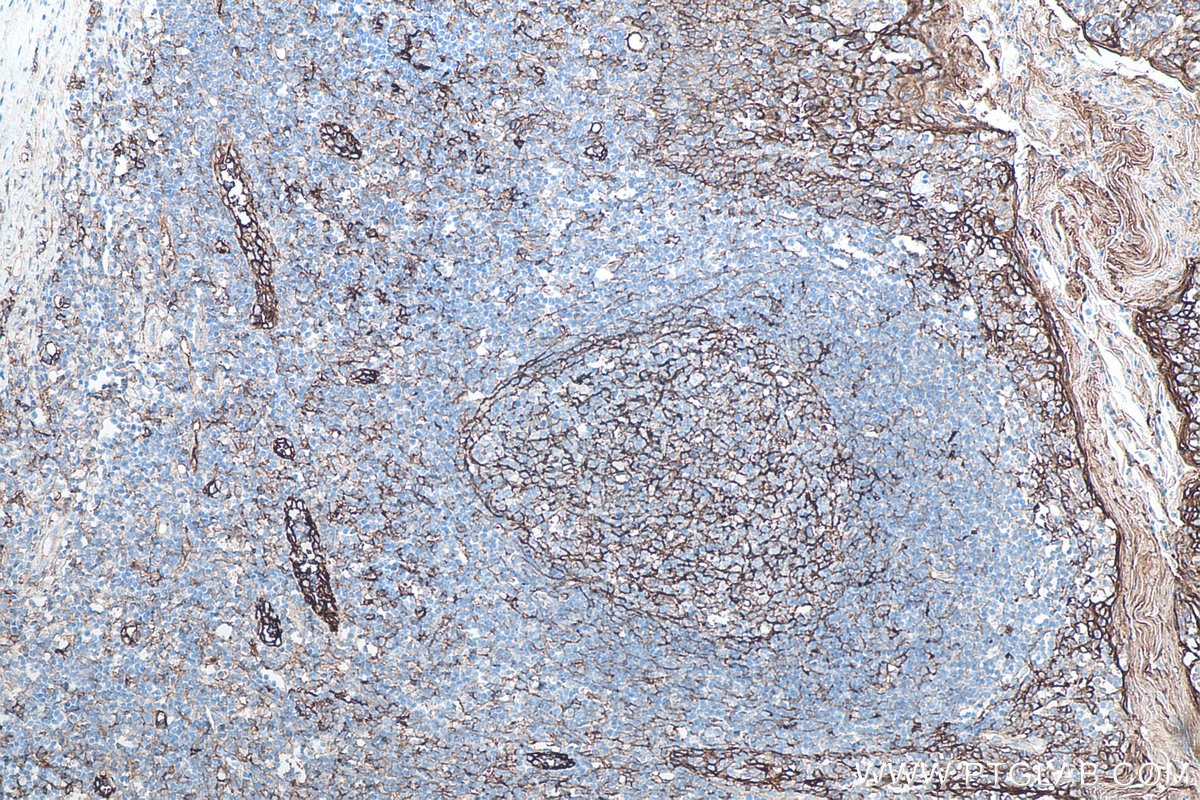

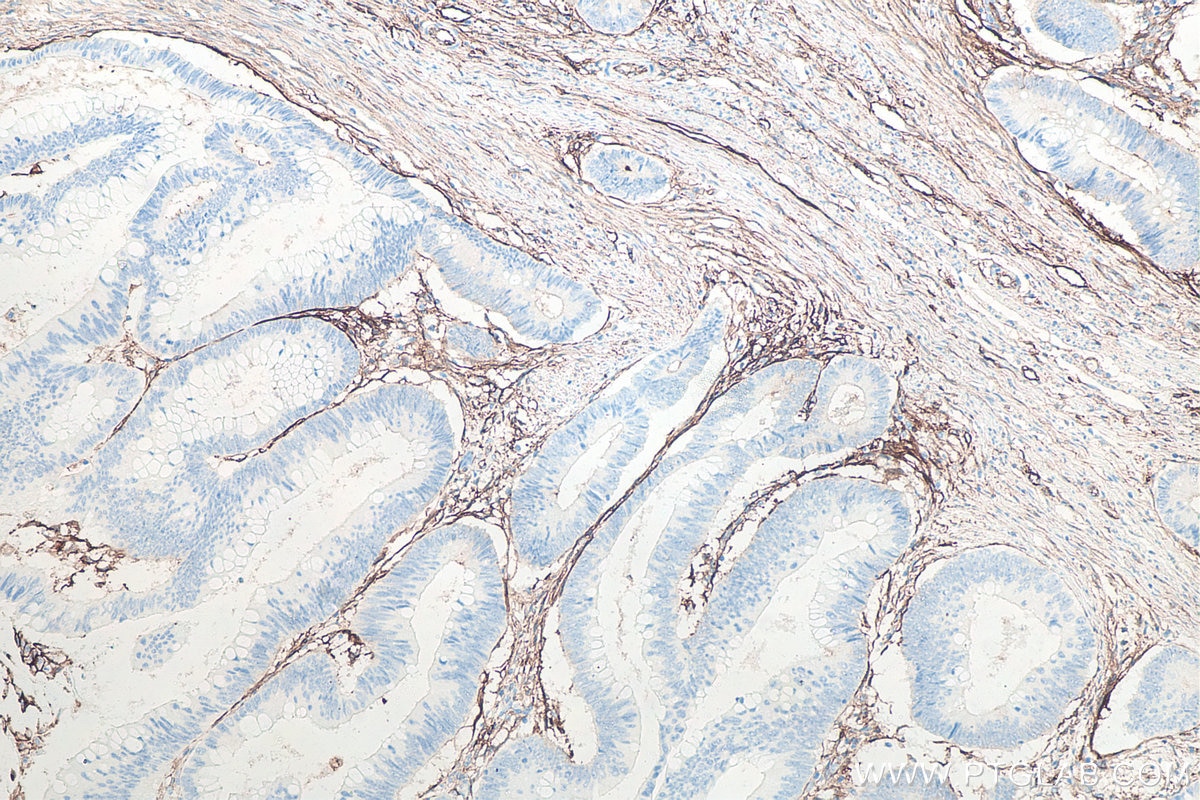

Positive IHC detected inhuman tonsillitis tissue
Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0

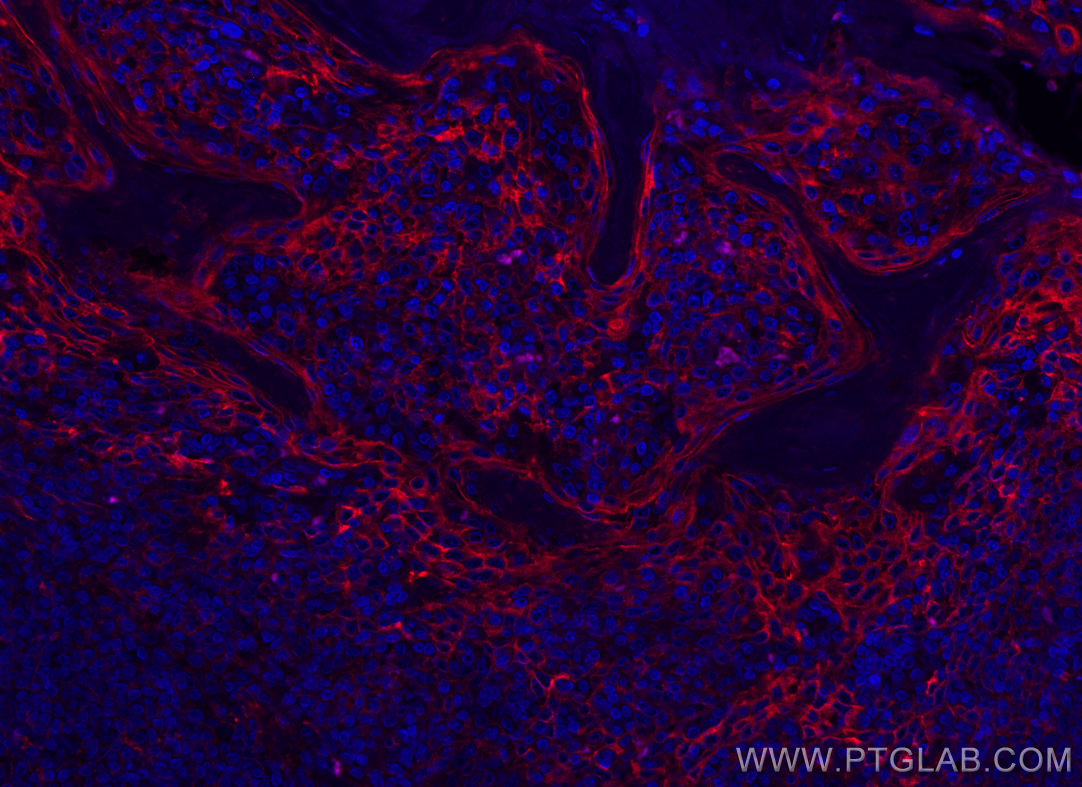

Positive IF detected inhuman lung cancer tissue
Positive FC detected inRaji cells
Planning an IF experiment? We recommend our CoraLite®488 and CoraLite®594 conjugated versions of this antibody.

Recommended dilution

ApplicationDilution
Western Blot (WB)WB : 1:5000-1:50000
Immunohistochemistry (IHC)IHC : 1:50-1:500
Immunofluorescence (IF)IF : 1:50-1:500
Sample-dependent, check data in validation data gallery

Product Information

60299-1-Ig targets ICAM-1 in WB, IHC, IF, FC, ELISA applications and shows reactivity with human samples.

Tested Reactivity human
Cited Reactivity human
Host / Isotype Mouse / IgG2b
Class Monoclonal
Type Antibody
Immunogen ICAM-1 fusion protein Ag8309
Full Name intercellular adhesion molecule 1
Calculated molecular weight 90 kDa
Observed molecular weight 85-95 kDa
GenBank accession numberBC015969
Gene symbol ICAM1
Gene ID (NCBI) 3383
Conjugate Unconjugated
Form Liquid
Purification Method Protein A purification
Storage Buffer PBS with 0.02% sodium azide and 50% glycerol pH 7.3.
Storage ConditionsStore at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

Background Information

Where is ICAM-1 expressed?

Intercellular Adhesion Molecule 1 (ICAM-1), also known as Cluster of Differentiation 54 (CD54) is a transmembrane glycoprotein constitutively expressed at low levels in endothelial cells, pericytes and on some lymphocytes and monocytes1. It is located at the cytoplasmic membrane, with a large extracellular region of mainly hydrophobic amino acids joined to a small transmembrane region and a cytoplasmic tail. It has a molecular weight of 75 to 115 kDa depending on the level of glycosylation.

 What is the function of ICAM-1?

ICAM-1 is important in both innate and adaptive immune responses as an adhesion molecule. Although it is constitutively expressed, in the presence of pro-inflammatory cytokines such as TNFα the endothelial cells are activated and upregulate expression of ICAM-12. In blood vessels lined with endothelial cells, leukocytes that are rolling over the surface are able to bind to ICAM-1 and transmigrate through the endothelial barrier and into the tissue. The initial binding of the leukocytes to ICAM-1 causes a Ca2+ release that initiates endothelial cell contraction and weakening of the intercellular tight junctions3, 4. This protein can be used as an indicator of endothelial activation and of vascular inflammation.

 What is the role of ICAM-1 in disease?

Beyond the role in the immune response, ICAM-1 has also been identified as the target of attachment for the human rhinovirus, the cause of the common cold. Binding of the virus to ICAM-1 causes the viral capsid to uncoat and leads to release of the genetic material5.

  1.  Hubbard, A. K. & Rothlein, R. Intercellular adhesion molecule-1 (ICAM-1) expression and cell signaling cascades. Free Radic. Biol. Med. 28, 1379–86 (2000).

  2. Long, E. O. ICAM-1: getting a grip on leukocyte adhesion. J. Immunol. 186, 5021–3 (2011).

  3. Lawson, C. & Wolf, S. ICAM-1 signaling in endothelial cells. (2009).

  4. Lyck, R. & Enzmann, G. The physiological roles of ICAM-1 and ICAM-2 in neutrophil migration into tissues. Curr. Opin. Hematol. 22, 53–59 (2015).

  5. Xing, L., Casasnovas, J. M. & Cheng, R. H. Structural analysis of human rhinovirus complexed with ICAM-1 reveals the dynamics of receptor-mediated virus uncoating. J. Virol. 77, 6101–7 (2003).


Protocols

Product Specific Protocols
WB protocol for ICAM-1 antibody 60299-1-IgDownload protocol
IHC protocol for ICAM-1 antibody 60299-1-IgDownload protocol
IF protocol for ICAM-1 antibody 60299-1-IgDownload protocol
FC protocol for ICAM-1 antibody 60299-1-IgDownload protocol
Standard Protocols
Click here to view our Standard Protocols

Publications

SpeciesApplicationTitle
humanWB

Oxid Med Cell Longev

Salvianolic Acid A Protects the Kidney against Oxidative Stress by Activating the Akt/GSK-3β/Nrf2 Signaling Pathway and Inhibiting the NF-κB Signaling Pathway in 5/6 Nephrectomized Rats.

Authors - Hong-Feng Zhang
humanWB, IF

EBioMedicine

Interactions between neutrophil extracellular traps and activated platelets enhance procoagulant activity in acute stroke patients with ICA occlusion.

Authors - Peng Zhou
mouse,ratWB

Acta Pharmacol Sin

Compound LM9, a novel MyD88 inhibitor, efficiently mitigates inflammatory responses and fibrosis in obesity-induced cardiomyopathy.

Authors - Xu-Yong Zheng
mouseIHC

ACS Infect Dis

Synergistic effect of combined artesunate and tetramethylpyrazine in experimental cerebral malaria.

Authors - Xiaohui Jiang
humanWB

Life Sci

PMID: 29452166

Authors - Qiangbing Yang
WB

Biosci Biotechnol Biochem

A hot water extract of Curcuma longa inhibits adhesion molecule protein expression and monocyte adhesion to TNF-α-stimulated human endothelial cells.

Authors - Kengo Kawasaki
