CoraLite® Plus 647-conjugated LC3B Recombinant monoclonal antibody

•

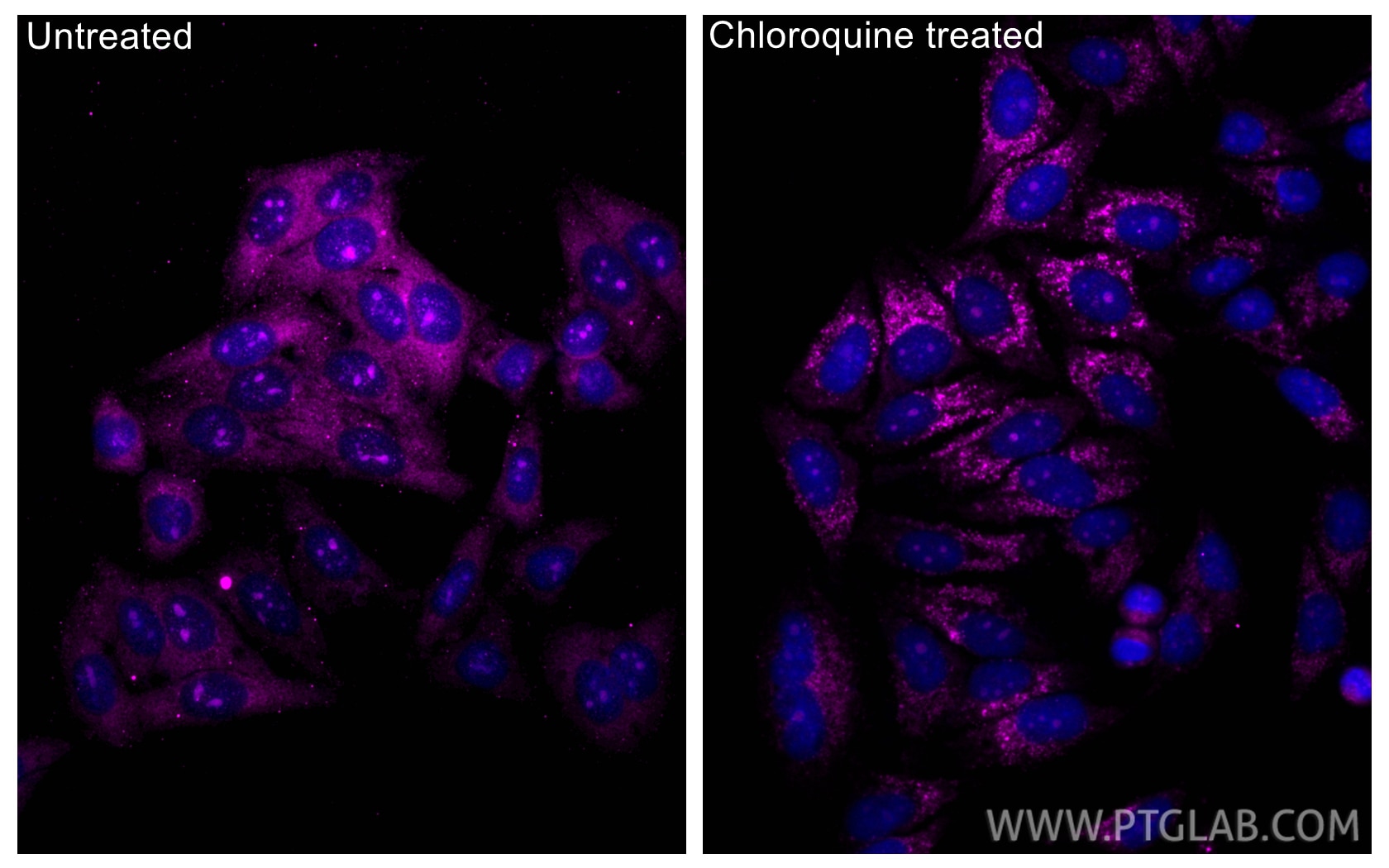

  IF Staining of HepG2 using CL647-81004

  Immunofluorescent analysis of (-20°C Ethanol) fixed Chloroquine treated HepG2 cells using CoraLite® Plus 647 LC3B antibody (CL647-81004, Clone: 5P12 ) at dilution of 1:200.

• Featured Product
• KD/KO Validated

LC3B Uni-rAb^® Recombinant Antibody for IF/ICC

Cat No. CL647-81004

Clone No.5P12

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat, pig

Applications

IF/ICC

Synonyms

LC3, MAP1LC3B, 5P12, ATG8F, Autophagy-related ubiquitin-like modifier LC3 B

---

Tested Applications

• Positive IF/ICC detected in: Chloroquine treated HepG2 cells

Recommended dilution

• Immunofluorescence (IF)/ICC: IF/ICC : 1:50-1:500

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

CL647-81004 targets LC3B in IF/ICC applications and shows reactivity with human, mouse, rat, pig samples.

• Tested Reactivity: human, mouse, rat, pig
• Host / Isotype: Rabbit / IgG
• Class: Recombinant
• Type: Antibody
• Immunogen:

  CatNo: Ag6144

  Product name: Recombinant human LC3 protein

  Source: e coli.-derived, PGEX-4T

  Tag: GST

  Domain: 1-125 aa of BC067797

  Sequence: MPSEKTFKQRRTFEQRVEDVRLIREQHPTKIPVIIERYKGEKQLPVLDKTKFLVPDHVNMGELIKIIRRRLQLNANQAFFLLVNGHSMVSVSTPISEVYESEKDEDGFLYMVYASQETFGMKLSV

• Full Name: microtubule-associated protein 1 light chain 3 beta
• Calculated Molecular Weight: 15 kDa
• Observed Molecular Weight: 14-18 kDa
• GenBank Accession Number: BC067797
• Gene Symbol: LC3B
• Gene ID (NCBI): 81631
• ENSEMBL Gene ID: ENSG00000140941
• Conjugate: CoraLite® Plus 647 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 654 nm / 674 nm
• Form: Liquid
• Purification Method: Protein A purification
• UNIPROT ID: Q9GZQ8
• Storage Buffer: PBS with 50% glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
• Storage Conditions: Store at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Background Information

Map1LC3, also known as LC3, is the human homolog of yeast Atg8 and is involved in the formation of autophagosomal vacuoles, called autophagosomes. Three human Map1LC3 isoforms, MAP1LC3A, MAP1LC3B, and MAP1LC3C, undergo post-translational modifications during autophagy. And they differ in their post-translation modifications during autophagy. Map1LC3 also exists in two modified forms, an 18 kDa cytoplasmic form that was originally identified as a subunit of the microtubule-associated protein 1, and a 14-16 kDa form that is associated with the autophagosome membrane. The antibody 81004-1-RR specifically recognizes LC3B.
