Anti-Mouse CD206 Rabbit Recombinant Antibody

•

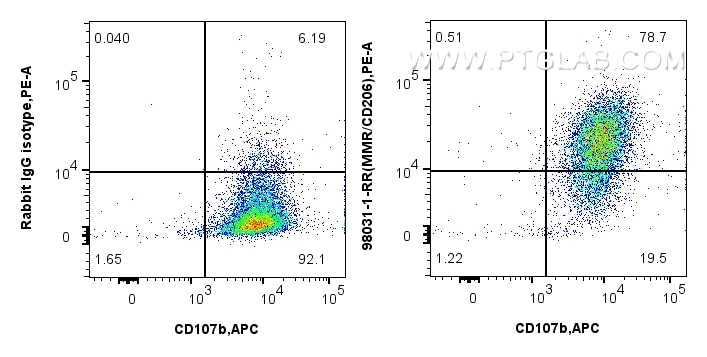

  FC experiment of mouse peritoneal macrophages using 98031-1-RR

  1x10^6 mouse peritoneal macrophages were surface stained with 0.25 ug Anti-Mouse MMR/CD206 Rabbit Recombinant Antibody (98031-1-RR, Clone: 240344D12) or Isotype Control and PE-conjugated Goat Anti-Rabbit IgG. Cells were then stained with APC Anti-Mouse CD107b / LAMP2. Cells were not fixed.

•

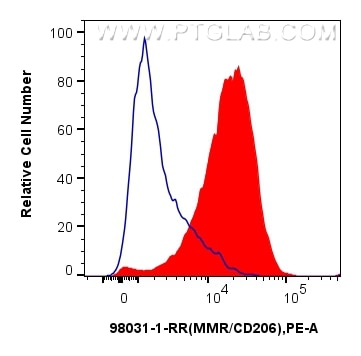

  FC experiment of mouse peritoneal macrophages using 98031-1-RR

  1x10^6 mouse peritoneal macrophages were surface stained with 0.25 ug Anti-Mouse MMR/CD206 Rabbit Recombinant Antibody (98031-1-RR, Clone: 240344D12) (red) or Isotype Control (blue) and PE-conjugated Goat Anti-Rabbit IgG. Cells were not fixed.

•

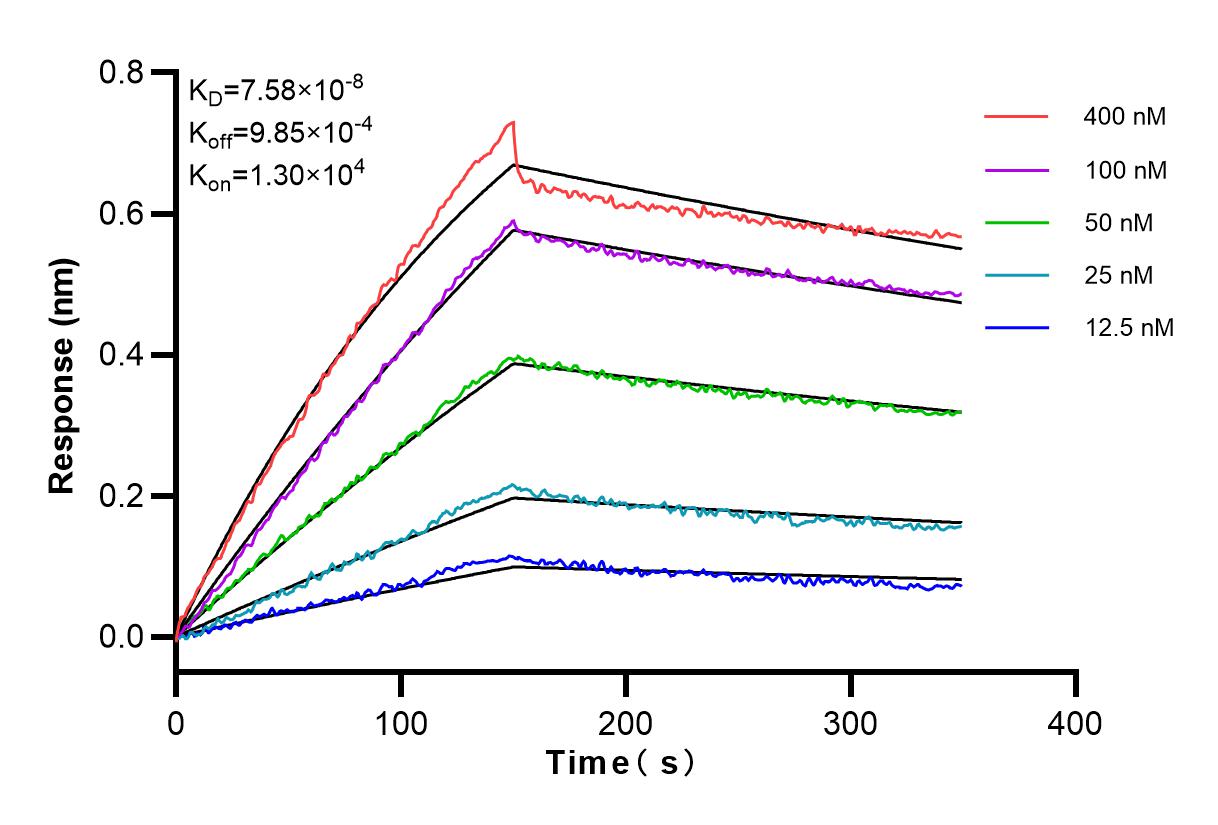

  Affinity and Kinetic Characterization of 98031-1-RR

  Biolayer interferometry (BLl) kinetic assays of 98031-1-RR against Mouse CD206 were performed. The affinity constant is 75.8 nM.

CD206 Uni-rAb^® Recombinant Antibody for FC

Cat No. 98031-1-RR

Clone No.240344D12

Publications(15)

Host / Isotype

Rabbit / IgG

Reactivity

mouse and More (2)

Applications

IF, FC

Synonyms

Mrc1, 240344D12, mannose receptor, C type 1, MMR, MR

---

Tested Applications

• Positive FC detected in: mouse peritoneal macrophages

Recommended dilution

• Flow Cytometry (FC): FC : 0.25 ug per 10^6 cells in 100 μl suspension

This reagent has been tested for flow cytometric analysis. It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Published Applications

• IF: See 2 publications below
• FC: See 12 publications below

Product Information

98031-1-RR targets CD206 in IF, FC applications and shows reactivity with mouse samples.

• Tested Reactivity: mouse
• Cited Reactivity: human, mouse, rat
• Host / Isotype: Rabbit / IgG
• Class: Recombinant
• Type: Antibody
• Immunogen:

  CatNo: Eg0790

  Product name: Recombinant mouse MMR/CD206 protein

  Source: mammalian cells-derived, pHZ-KIsec-C-6*HIS

  Tag: C-6*HIS

  Domain: 23-1388 aa of NM_008625.2

  Sequence: RQFLIYNEDHKRCVDALSAISVQTATCNPEAESQKFRWVSDSQIMSVAFKLCLGVPSKTDWASVTLYACDSKSEYQKWECKNDTLFGIKGTELYFNYGNRQEKNIKLYKGSGLWSRWKVYGTTDDLCSRGYEAMYSLLGNANGAVCAFPFKFENKWYADCTSAGRSDGWLWCGTTTDYDKDKLFGFCPLHFEGSERLWNKDPLTGILYQINSKSALTWHQARASCKQQNADLLSVTEIHEQMYLTGLTSSLSSGLWIGLNSLSVRSGWQWAGGSPFRYLNWLPGSPSSEPGKSCVSLNPGKNAKWENLECVQKLGYICKKGNNTLNPFIIPSASDVPTGCPNQWWPYAGHCYRIHREEKKIQKYALQACRKEGGDLASIHSIEEFDFIFSQLGYEPNDELWIGLNDIKIQMYFEWSDGTPVTFTKWLPGEPSHENNRQEDCVVMKGKDGYWADRACEQPLGYICKMVSQSHAVVPEGADKGCRKGWKRHGFYCYLIGSTLSTFTDANHTCTNEKAYLTTVEDRYEQAFLTSLVGLRPEKYFWTGLSDVQNKGTFRWTVDEQVQFTHWNADMPGRKAGCVAMKTGVAGGLWDVLSCEEKAKFVCKHWAEGVTRPPEPTTTPEPKCPENWGTTSKTSMCFKLYAKGKHEKKTWFESRDFCKAIGGELASIKSKDEQQVIWRLITSSGSYHELFWLGLTYGSPSEGFTWSDGSPVSYENWAYGEPNNYQNVEYCGELKGDPGMSWNDINCEHLNNWICQIQKGKTLLPEPTPAPQDNPPVTADGWVIYKDYQYYFSKEKETMDNARAFCKKNFGDLATIKSESEKKFLWKYINKNGGQSPYFIGMLISMDKKFIWMDGSKVDFVAWATGEPNFANDDENCVTMYTNSGFWNDINCGYPNNFICQRHNSSINATAMPTTPTTPGGCKEGWHLYKNKCFKIFGFANEEKKSWQDARQACKGLKGNLVSIENAQEQAFVTYHMRDSTFNAWTGLNDINAEHMFLWTAGQGVHYTNWGKGYPGGRRSSLSYEDADCVVVIGGNSREAGTWMDDTCDSKQGYICQTQTDPSLPVSPTTTPKDGFVTYGKSSYSLMKLKLPWHEAETYCKDHTSLLASILDPYSNAFAWMKMHPFNVPIWIALNSNLTNNEYTWTDRWRVRYTNWGADEPKLKSACVYMDVDGYWRTSYCNESFYFLCKKSDEIPATEPPQLPGKCPESEQTAWIPFYGHCYYFESSFTRSWGQASLECLRMGASLVSIETAAESSFLSYRVEPLKSKTNFWIGMFRNVEGKWLWLNDNPVSFVNWKTGDPSGERNDCVVLASSSGLWNNIHCSSYKGFICKMPKIIDPVTTHSSITTKADQRKMDPQPKGSSKA

• Full Name: mannose receptor, C type 1
• Calculated Molecular Weight: 165 kDa
• GenBank Accession Number: NM_008625.2
• Gene Symbol: CD206
• Gene ID (NCBI): 17533
• RRID: AB_3672176
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein A purfication
• UNIPROT ID: Q2HZ94
• Storage Buffer: PBS with 0.09% sodium azide, pH 7.3.
• Storage Conditions: Store at 2-8°C. Stable for one year after shipment.

Background Information

CD206, also named as MMR, CLEC13D and MRC1, is a type I membrane receptor that mediates the endocytosis of glycoproteins by macrophages. CD206 has been shown to bind high-mannose structures on the surface of potentially pathogenic viruses, bacteria, and fungi so that they can be neutralized by phagocytic engulfment. CD206 is a 170 kDa transmembrane protein which contains 5 domains: an amino-terminal cysteine-rich region, a fibronectin type II repeat, a series of eight tandem lectin-like carbohydrate recognition domains (responsible for the recognition of mannose and fucose), a transmembrane domain, and an intracellular carboxy-terminal tail. It is expressed on most tissue macrophages, in vitro derived dendritic cells, lymphatic and sinusoidal endothelia.

Publications

• Human
• Mouse
• Rat
• Monkey
• Pig

Species	Application	Title
mouse	IF	Tissue Cell; Sensory neuron TRPV1-mediated macrophage polarization and immune response regulate dental implant osseointegration.; Authors - Yixuan Jiang
mouse	FC	Cell Mol Life Sci; IMP2 enhances M2 macrophage polarization via LKB1-AMPK-mediated mitochondrial dynamics and fatty acid β-oxidation to ameliorate diabetic osteoporosis.; Authors - Lingshuang Li
mouse	IF	RSC Adv; Tri-layer structured intelligent hydrogel dressing for controlled-release antibacterial treatment of chronic diabetic wounds.; Authors - Weikai Zhang
rat	FC	Mater Today Bio; 3D-printed nHA/PA66 porous scaffold: Regulating immune balance and vascularization synergistically promotes bone regeneration.; Authors - Caiping Yan
mouse	FC	Acta Biomater; An injectable and adaptable system for the sustained release of hydrogen sulfide for targeted diabetic wound therapy by improving the microenvironment of inflammation regulation and angiogenesis; Authors - Hao Zhang
mouse	FC	Mater Today Bio; Biomimetic tumor cell membrane-camouflaged nanomicelles for synergistic chemo-immunotherapy of Triple-negative breast cancer.; Authors - Xiaoman Xu
