NEUROD1 Monoclonal antibody

•

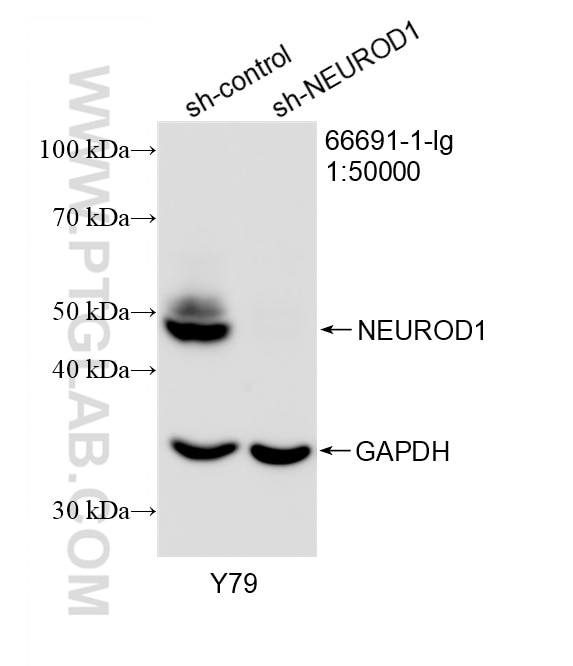

  WB analysis of Y79 using 66691-1-Ig

  Y79 cells were subjected to SDS PAGE followed by western blot with 66691-1-Ig (NEUROD1 antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours.

•

  WB analysis of SH-SY5Y using 66691-1-Ig

  SH-SY5Y cells were subjected to SDS PAGE followed by western blot with 66691-1-Ig (NEUROD1 antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours.

•

  IHC staining of human pancreas cancer using 66691-1-Ig

  Immunohistochemical analysis of paraffin-embedded human pancreas cancer tissue slide using 66691-1-Ig (NEUROD1 antibody) at dilution of 1:1000 (under 40x lens. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  IHC staining of human pancreas cancer using 66691-1-Ig

  Immunohistochemical analysis of paraffin-embedded human pancreas cancer tissue slide using 66691-1-Ig (NEUROD1 antibody) at dilution of 1:1000 (under 10x lens. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

  FC experiment of SH-SY5Y using 66691-1-Ig

  1X10^6 SH-SY5Y cells were intracellularly stained with 0.5 ug Anti-Human NEUROD1 (66691-1-Ig, Clone:3E10F1) (red) labeled with FlexAble CoraLite® Plus 555 Antibody Labeling Kit for Mouse IgG1 (KFA022), or 0.5 ug Control Antibody. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

NEUROD1 Monoclonal Antibody for WB, IHC, FC (Intra), ELISA

Cat No. 66691-1-Ig

Clone No.3E10F1

Host / Isotype

Mouse / IgG1

Reactivity

human, mouse

Applications

WB, IHC, FC (Intra), ELISA

Synonyms

3E10F1, bHLHa3, Class A basic helix-loop-helix protein 3, NEUROD

---

Tested Applications

• Positive WB detected in: Y79 cells, SH-SY5Y cells
• Positive IHC detected in: human pancreas cancer tissue; Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
• Positive FC (Intra) detected in: SH-SY5Y cells

Recommended dilution

• Western Blot (WB): WB : 1:5000-1:50000
• Immunohistochemistry (IHC): IHC : 1:500-1:2000
• Flow Cytometry (FC) (INTRA): FC (INTRA) : 0.50 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

66691-1-Ig targets NEUROD1 in WB, IHC, FC (Intra), ELISA applications and shows reactivity with human, mouse samples.

• Tested Reactivity: human, mouse
• Host / Isotype: Mouse / IgG1
• Class: Monoclonal
• Type: Antibody
• Immunogen: NEUROD1 fusion protein Ag27606
• Full Name: neurogenic differentiation 1
• Calculated Molecular Weight: 356 aa, 40 kDa
• Observed Molecular Weight: 40-50 kDa
• GenBank Accession Number: BC009046
• Gene Symbol: NEUROD1
• Gene ID (NCBI): 4760
• RRID: AB_2882045
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein A purification
• UNIPROT ID: Q13562
• Storage Buffer: PBS with 0.02% sodium azide and 50% glycerol, pH 7.3.
• Storage Conditions: Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage. 20ul sizes contain 0.1% BSA.

Background Information

NeuroD is a member of the basic helix-loop-helix (bHLH) family of transcription factors. The basic helix-loop-helix (bHLH) proteins are transcription factors that are required for several aspects of development, including cell type determination, terminal differentiation and sex determination. Members of the myogenic determination family, MyoD, myf5, myogenin and MRF4, all have bHLH domains.These proteins function by forming heterodimers with E-proteins and binding to the canonical E-box sequence CANNTG. Neuro D is expressed transiently in a subset of neurons in the central and peripheral nervous systems at the time of their terminal differentiation into mature neurons. Moreover, ectopic expression of Neuro D in Xenopus embryos induces premature differentiation of neuronal precursors and Neuro D can convert presumptive epidermal cells into neurons.The lack of NeuroD in the brain results in severe defects in development. Human mutations have been linked to a number of types of diabetes including type I diabetes mellitus and maturity-onset diabetes of the young. The calculated molecular weight of NEUROD1 is 39 kDa, but the modified NEUROD1 protein is about 45-50 kDa.
