CoraLite®594 Anti-Mouse TLR4/CD284 Rabbit Recombinant Antibody

•

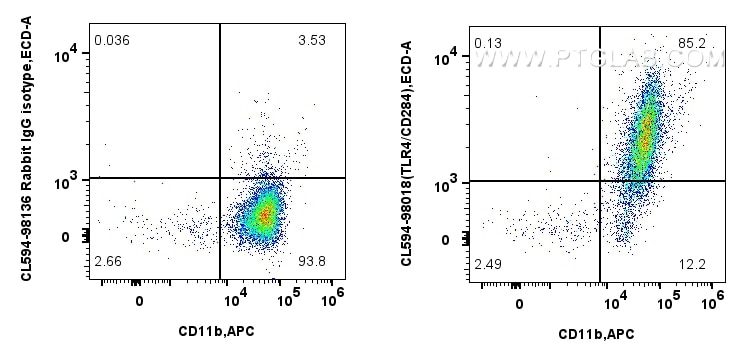

  FC experiment of Balb/c mouse peritoneal macrophages using CL594-98018

  1x10^6 Balb/c mouse peritoneal macrophages were surface stained with CoraLite® Plus 647 Anti-Mouse CD11b (M1/70), and 0.25 ug CoraLite®594 Anti-Mouse TLR4/CD284 Rabbit Recombinant Antibody (CL594-98018, Clone: 230463C7) or 0.25 ug CoraLite®594 Rabbit IgG Isotype Control Recombinant Antibody (CL594-98136, Clone: 240953C9). Cells were incubated with FC Receptor Block prior to staining. Cells were not fixed.

•

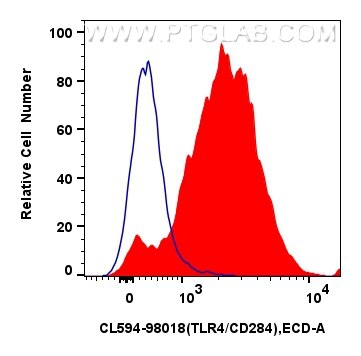

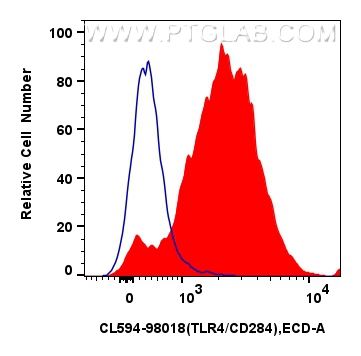

  FC experiment of Balb/c mouse peritoneal macrophages using CL594-98018

  1x10^6 Balb/c mouse peritoneal macrophages were surface stained with 0.25 ug CoraLite®594 Anti-Mouse TLR4/CD284 Rabbit Recombinant Antibody (CL594-98018, Clone: 230463C7) (red) or 0.25 ug CoraLite®594 Rabbit IgG Isotype Control Recombinant Antibody (CL594-98136, Clone: 240953C9)(blue). Cells were incubated with FC Receptor Block prior to staining. Cells were not fixed.

TLR4/CD284 Uni-rAb^® Recombinant Antibody for FC

Cat No. CL594-98018

Clone No.230463C7

Host / Isotype

Rabbit / IgG

Reactivity

mouse

Applications

FC

Synonyms

CD284, Tlr4, 230463C7, toll like receptor 4

---

Tested Applications

• Positive FC detected in: Balb/c mouse peritoneal macrophages

Recommended dilution

• Flow Cytometry (FC): FC : 0.25 ug per 10^6 cells in a 100 µl suspension

This reagent has been tested for flow cytometric analysis. It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

CL594-98018 targets TLR4/CD284 in FC applications and shows reactivity with mouse samples.

• Tested Reactivity: mouse
• Host / Isotype: Rabbit / IgG
• Class: Recombinant
• Type: Antibody
• Immunogen:

  CatNo: Ag32998

  Product name: Recombinant mouse Tlr4 protein

  Source: e coli.-derived, PGEX-4T

  Tag: GST

  Domain: 198-395 aa of NM_021297

  Sequence: RENPQVNLSLDMSLNPIDFIQDQAFQGIKLHELTLRGNFNSSNIMKTCLQNLAGLHVHRLILGEFKDERNLEIFEPSIMEGLCDVTIDEFRLTYTNDFSDDIVKFHCLANVSAMSLAGVSIKYLEDVPKHFKWQSLSIIRCQLKQFPTLDLPFLKSLTLTMNKGSISFKKVALPSLSYLDLSRNALSFSGCCSYSDLG

• Full Name: toll-like receptor 4
• Calculated Molecular Weight: 96 kDa
• GenBank Accession Number: NM_021297
• Gene Symbol: Tlr4
• Gene ID (NCBI): 21898
• Conjugate: CoraLite®594 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 588 nm / 604 nm
• Form: Liquid
• Purification Method: Protein A purification
• UNIPROT ID: Q9QUK6
• Storage Buffer: PBS with 0.09% sodium azide, pH 7.3.
• Storage Conditions: Store at 2-8°C. Avoid exposure to light. Stable for one year after shipment.

Background Information

TLR4, also named as CD284, belongs to the Toll-like receptor family. TLR4 interacts with LY96 and CD14 to mediate the innate immune response to bacterial lipopolysaccharide (LPS). TLR4 acts via MYD88, TIRAP and TRAF6, leading to NF-kB activation, cytokine secretion and the inflammatory response. Three alternatively spliced transcript variants that encode different protein isoforms have been described.
