TMEM126A Recombinant monoclonal antibody (83440-2-RR)

Featured Product
KD/KO Validated

TMEM126A Recombinant monoclonal antibody

TMEM126A Uni-rAb^® Recombinant Antibody for WB, IF/ICC, ELISA

Cat No. 83440-2-RR

Clone No.240425A11

Reviews (1)

Host / Isotype

Rabbit / IgG

Reactivity

human

Applications

WB, IF/ICC, ELISA

Synonyms

240425A11, OPA7, TMEM, TMEM126

Formulation: PBS, Azide, Glycerol

PBS, Azide, Glycerol

PBS Only

Conjugate: Unconjugated

Unconjugated

Size/Concentration:

SKU:

-/ -

Freight/Packing: -

Quantity

- +

Request bulk or custom quote

Proteintech Guarantee

Filter: AllWBIF/ICCFC (Intra)Affinity

WB analysis using 83440-2-RR
Various lysates were subjected to SDS PAGE followed by western blot with 83440-2-RR (TMEM126A antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours.
This validation data has been generated in-house and reviewed by Proteintech scientists. Find out more on our antibody validation policy

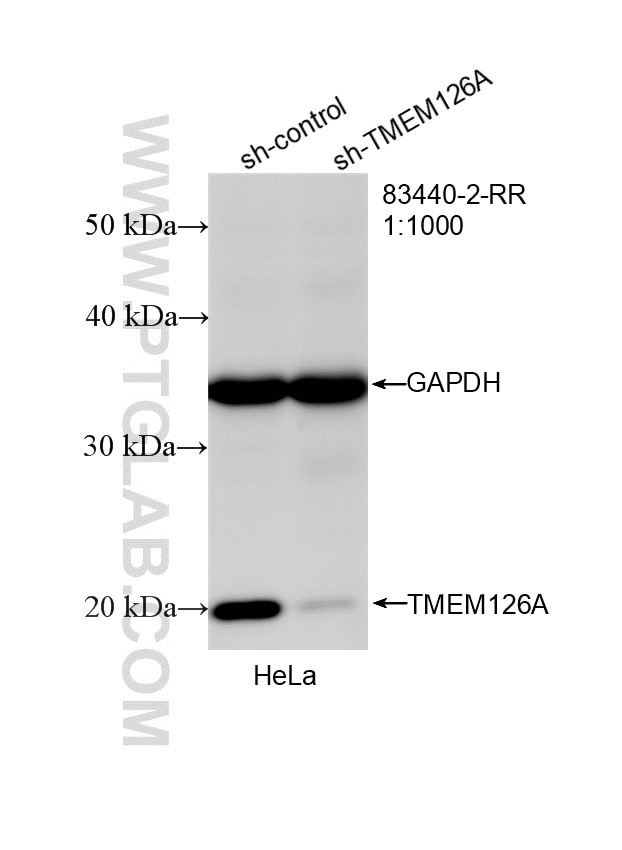

WB analysis of HeLa using 83440-2-RR
WB result of TMEM126A antibody (83440-2-RR; 1:1000; incubated at room temperature for 1.5 hours) with sh-Control and sh-TMEM126A transfected HeLa cells.
This validation data has been generated in-house and reviewed by Proteintech scientists. Find out more on our antibody validation policy
IF Staining of HeLa using 83440-2-RR
Immunofluorescent analysis of (4% PFA) fixed HeLa cells using TMEM126A antibody (83440-2-RR, Clone: 240425A11 ) at dilution of 1:1000 and Multi-rAb CoraLite ® Plus 488-Goat Anti-Rabbit Recombinant Secondary Antibody (H+L) (RGAR002), CL594-Phalloidin (red).
This validation data has been generated in-house and reviewed by Proteintech scientists. Find out more on our antibody validation policy
FC experiment of HeLa using 83440-2-RR
1x10^6 HeLa cells were intracellularly stained with 0.25 ug TMEM126A Recombinant antibody (83440-2-RR, Clone:240425A11) and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2)(red), or 0.25 ug Rabbit IgG Isotype Control Recombinant Antibody (98136-1-RR, Clone: 240953C9) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer.
This validation data has been generated in-house and reviewed by Proteintech scientists. Find out more on our antibody validation policy
Affinity and Kinetic Characterization of 83440-2-RR
Biolayer interferometry (BLl) kinetic assays of 83440-2-RR against Human TMEM126A were performed. The affinity constant is 0.589 nM.
This validation data has been generated in-house and reviewed by Proteintech scientists. Find out more on our antibody validation policy

Overview

Tested Applications
Product Information
Protocols
Reviews (1)

Print datasheet

MSDS SDS

Tested Applications

Positive WB detected in	T-47D cells, HeLa cells, MCF-7 cells, U-251 cells, U2OS cells, human placenta tissue
Positive IF/ICC detected in	HeLa cells
Positive FC (Intra) detected in	HeLa cells

Recommended dilution

Application	Dilution
Western Blot (WB)	WB : 1:2000-1:10000
Immunofluorescence (IF)/ICC	IF/ICC : 1:500-1:2000
Flow Cytometry (FC) (INTRA)	FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Product Information

83440-2-RR targets TMEM126A in WB, IF/ICC, ELISA applications and shows reactivity with human samples.

Tested Reactivity	human
Host / Isotype	Rabbit / IgG
Class	Recombinant
Type	Antibody
Immunogen	CatNo: Ag14705 Product name: Recombinant human TMEM126A protein Source: e coli.-derived, PGEX-4T Tag: GST Domain: 67-195 aa of BC007875 Sequence: AGLPMAGIPFLTTDLTYRCFVSFPLNTGDLDCETCTITRSGLTGLVIGGLYPVFLAIPVNGGLAARYQSALLPHKGNILSYWIRTSKPVFRKMLFPILLQTMFSAYLGSEQYKLLIKALQLSEPGKEIH Predict reactive species
Full Name	transmembrane protein 126A
Calculated Molecular Weight	195 aa, 22 kDa
Observed Molecular Weight	20-25 kDa
GenBank Accession Number	BC007875
Gene Symbol	TMEM126A
Gene ID (NCBI)	84233
RRID	AB_3671081
Conjugate	Unconjugated
Form	Liquid
Purification Method	Protein A purification
UNIPROT ID	Q9H061
Storage Buffer	PBS with 0.02% sodium azide and 50% glycerol, pH 7.3.
Storage Conditions	Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage. 20ul sizes contain 0.1% BSA.

Background Information

TMEM126A is a mitochondrial inner membrane protein that is enriched in the cristae. TMEM126A is necessary for Complex I assembly or stability.Complex I (CI) is the largest enzyme of the mitochondrial respiratory chain, and its defects are the main cause of mitochondrial disease.

Protocols

Product Specific Protocols
FC protocol for TMEM126A antibody 83440-2-RR	Download protocol
IF protocol for TMEM126A antibody 83440-2-RR	Download protocol
WB protocol for TMEM126A antibody 83440-2-RR	Download protocol

Standard Protocols
Click here to view our Standard Protocols

Reviews

3.0 out of 5

Add a review

1 verified customer reviews

What customers say

The reviews below have been submitted by verified Proteintech customers who received an incentive for providing their feedback.

Aditya (Verified Customer) (06-16-2025)

did not get any bands in the region specified by proteintech (hek lysate), cut the blot for this, so may have been banding above or below that i didnt see
