CoraLite® Plus 488-conjugated Smac/DIABLO Polyclonal antibody

•

  IF Staining of HeLa using CL488-10434

  Immunofluorescent analysis of (4% PFA) fixed HeLa cells using CoraLite® Plus 488 Smac/DIABLO antibody (CL488-10434) at dilution of 1:200, CL594-phalloidin (red).

•

  IF Staining of HepG2 using CL488-10434

  Immunofluorescent analysis of (4% PFA) fixed HepG2 cells using CoraLite® Plus 488 Smac/DIABLO antibody (CL488-10434) at dilution of 1:200, CL594-phalloidin (red).

•

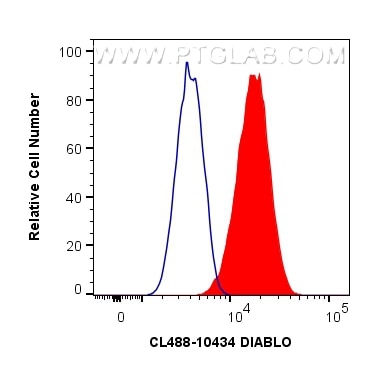

  FC experiment of HeLa using CL488-10434

  1X10^6 HeLa cells were intracellularly stained with 0.8 ug CoraLite® Plus 488 Anti-Human DIABLO (CL488-10434) (red), or 0.8 ug Isotype Control. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

• Featured Product
• KD/KO Validated

Smac/DIABLO Polyclonal Antibody for IF/ICC, FC (Intra)

Cat No. CL488-10434

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat

Applications

IF/ICC, FC (Intra)

Synonyms

DIABLO, DFNA64, Diablo homolog, mitochondrial, Diablo IAP-binding mitochondrial protein, Diablo IAP-binding mitochondrial protein, cleaved form

---

Tested Applications

• Positive IF/ICC detected in: HeLa cells, HepG2 cells
• Positive FC (Intra) detected in: HeLa cells

Recommended dilution

• Immunofluorescence (IF)/ICC: IF/ICC : 1:50-1:500
• Flow Cytometry (FC) (INTRA): FC (INTRA) : 0.80 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

CL488-10434 targets Smac/DIABLO in IF/ICC, FC (Intra) applications and shows reactivity with human, mouse, rat samples.

• Tested Reactivity: human, mouse, rat
• Host / Isotype: Rabbit / IgG
• Class: Polyclonal
• Type: Antibody
• Immunogen:

  CatNo: Ag0696

  Product name: Recombinant human DIABLO protein

  Source: e coli.-derived, PGEX-4T

  Tag: GST

  Domain: 1-239 aa of BC011909

  Sequence: MAALKSWLSRSVTSFFRYRQCLCVPVVANFKKRCFSELIRPWHKTVTIGFGVTLCAVPIAQKSEPHSLSSEALMRRAVSLVTDSTSTFLSQTTYALIEAITEYTKAVYTLTSLYRQYTSLLGKMNSEEEDEVWQVIIGARAEMTSKHQEYLKLETTWMTAVGLSEMAAEAAYQTGADQASITARNHIQLVKLQVEEVHQLSRKAETKLAEAQIEELRQKTQEEGEERAESEQEAYLRED

• Full Name: diablo homolog (Drosophila)
• Calculated Molecular Weight: 27 kDa
• Observed Molecular Weight: 20 kDa
• GenBank Accession Number: BC011909
• Gene Symbol: DIABLO
• Gene ID (NCBI): 56616
• RRID: AB_3083877
• Conjugate: CoraLite® Plus 488 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 493 nm / 522 nm
• Form: Liquid
• Purification Method: Antigen affinity purification
• UNIPROT ID: Q9NR28
• Storage Buffer: PBS with 50% glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
• Storage Conditions: Store at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Background Information

Smac/DIABLO is a mitochondrial protein that promotes apoptosis by neutralizing members of the IAP family. SMAC/DIABLO is ubiquitously expressed in normal tissues, and the expression of SMAC messenger RNA (mRNA) in adult testis is the highest .Smac/DIABLO encodes a 239 amino acid protein (~27 kDa). The first 55 amino acids are a mitochondrial targeting signal peptide that is cleaved to generate mature Smac-DIABLO (~21 kDa). When released from mitochondria, Smac-DIABLO acts as a natural antagonist of inhibitor of apoptosis proteins (IAPs). Smac-DIABLO antagonistic activity is based on its N-terminal tetrapeptide (AVPI) that binds baculoviral IAP repeat (BIR) domains of IAPs, releasing their inhibitory effects on both initiator and effector caspases, thus promoting cell death. (PMID: 32325691, PMID: 32575872,PMID: 25650938)
