CoraLite® Plus 488-conjugated LC3B-Specific Polyclonal antibody

LC3B-Specific Polyclonal Antibody for FC (Intra)

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat

Applications

FC (Intra)

Conjugate

CoraLite® Plus 488 Fluorescent Dye

Cat no : CL488-18725

Synonyms

LC3B, LC3B-Specific, MAP1A/1BLC3, MAP1A/MAP1B LC3 B, MAP1A/MAP1B light chain 3 B, MAP1ALC3

Validation Data Gallery

Filter:

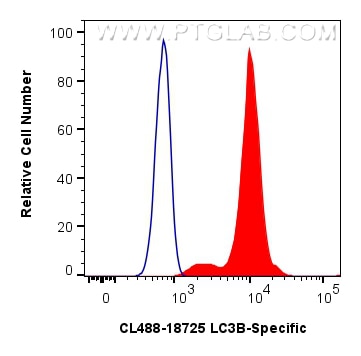

  • Flow cytometry (FC) experiment of HeLa cells using CoraLite® Plus 488-conjugated LC3B-Specific Polycl (CL488-18725)

    FC experiment of HeLa using CL488-18725

    1X10^6 HeLa cells were intracellularly stained with 0.4 ug CoraLite® Plus 488 Anti-Human LC3B-Specific (CL488-18725) (red), or 0.4 ug Control Antibody. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

Tested Applications

Positive FC detected inHeLa cells

Recommended dilution

ApplicationDilution
Sample-dependent, check data in validation data gallery

Product Information

CL488-18725 targets LC3B-Specific in FC (Intra) applications and shows reactivity with human, mouse, rat samples.

Tested Reactivity human, mouse, rat
Host / Isotype Rabbit / IgG
Class Polyclonal
Type Antibody
Immunogen Peptide
Full Name microtubule-associated protein 1 light chain 3 beta
Calculated molecular weight 15 kDa
Observed molecular weight 15 kDa, 18 kDa
GenBank accession numberNM_022818
Gene symbol MAP1LC3B
Gene ID (NCBI) 81631
Conjugate CoraLite® Plus 488 Fluorescent Dye
Excitation/Emission maxima wavelengths493 nm / 522 nm
Form Liquid
Purification Method Antigen affinity purification
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Aliquoting is unnecessary for -20oC storage. 20ul sizes contain 0.1% BSA.

Background Information

LC3B, also named as MAP1LC3B, MAP1A/1BLC3, belongs to the MAP1 LC3 family. It is a subunit of neuronal microtubule-associated MAP1A and MAP1B proteins, which are involved in microtubule assembly and important for neurogenesis. In cell biology, autophagy, or autophagocytosis, is a catabolic process involving the degradation of a cell's own components through the lysosomalmachinery. It is a major mechanism by which a starving cell reallocates nutrients from unnecessary processes to more-essential processes. Two forms of LC3, called LC3-I (17-19kd) and -II(14-16kd), were produced post-translationally in various cells. LC3-I is cytosolic, whereas LC3-II is membrane bound. The precursor molecule is cleaved by APG4B/ATG4B to form the cytosolic form, LC3-I. This is activated by APG7L/ATG7, transferred to ATG3 and conjugated to phospholipid to form the membrane-bound form, LC3-II. The amount of LC3-II is correlated with the extent of autophagosome formation. LC3-II is the first mammalian protein identified that specifically associates with autophagosome membranes. MAP1LC3 has 3 isoforms MAP1LC3A, MAP1LC3B and MAP1LC3C. MAP1LC3A and MAP1LC3C are produced by the proteolytic cleavage after the conserved C-terminal Gly residue, like their rat counterpart, MAP1LC3B does not undergo C-terminal cleavage and exists in a single modified form. This antibody is specific to LC3B.

Protocols

Product Specific Protocols
FC protocol for CL Plus 488 LC3B-Specific antibody CL488-18725Download protocol
Standard Protocols
Click here to view our Standard Protocols
